Maintenance Information
>>
Service Point Locations
Service Point Locations

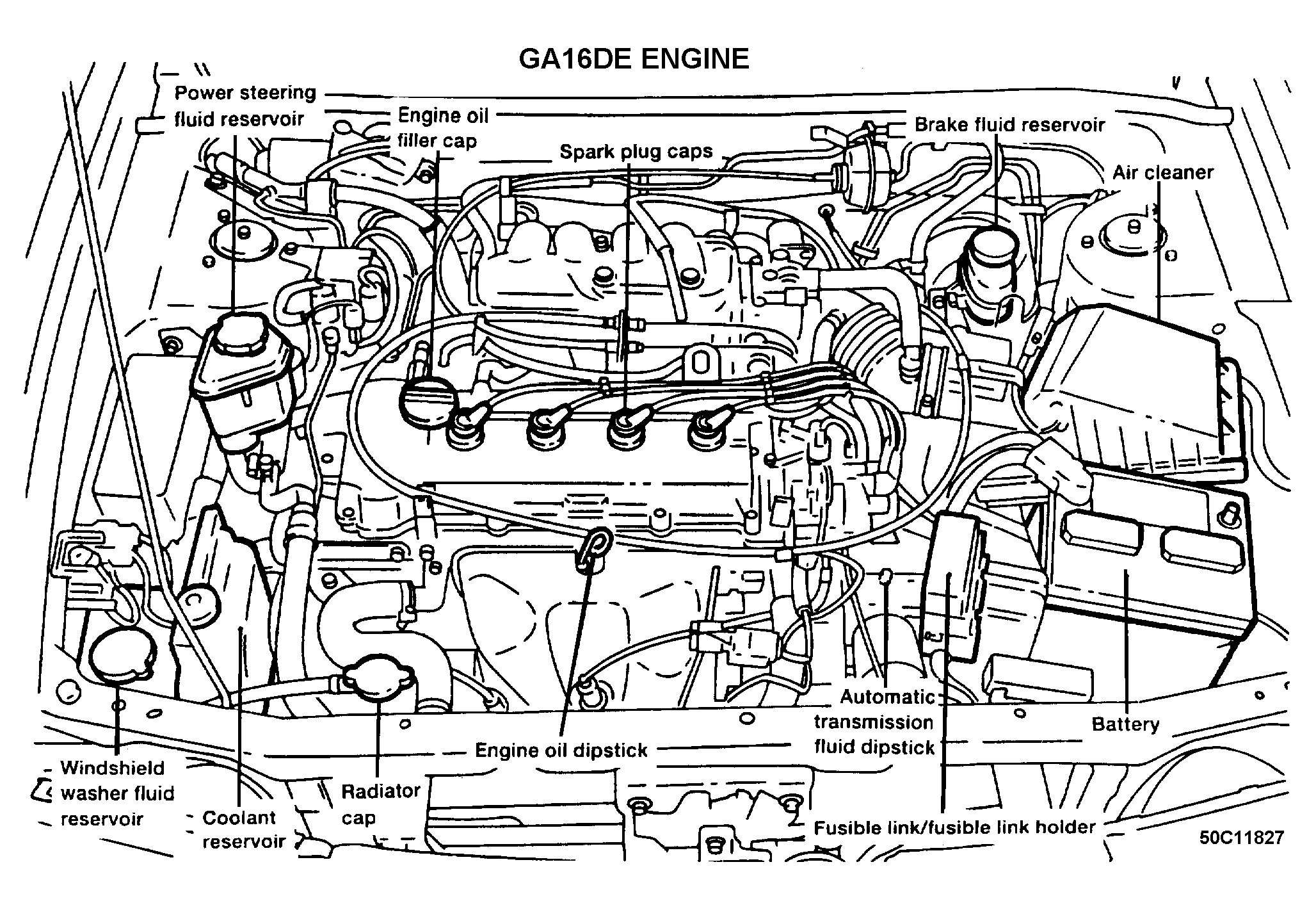

Fig 1: Service Point Locations (1.6L)
Courtesy of NISSAN MOTOR CO., U.S.A.

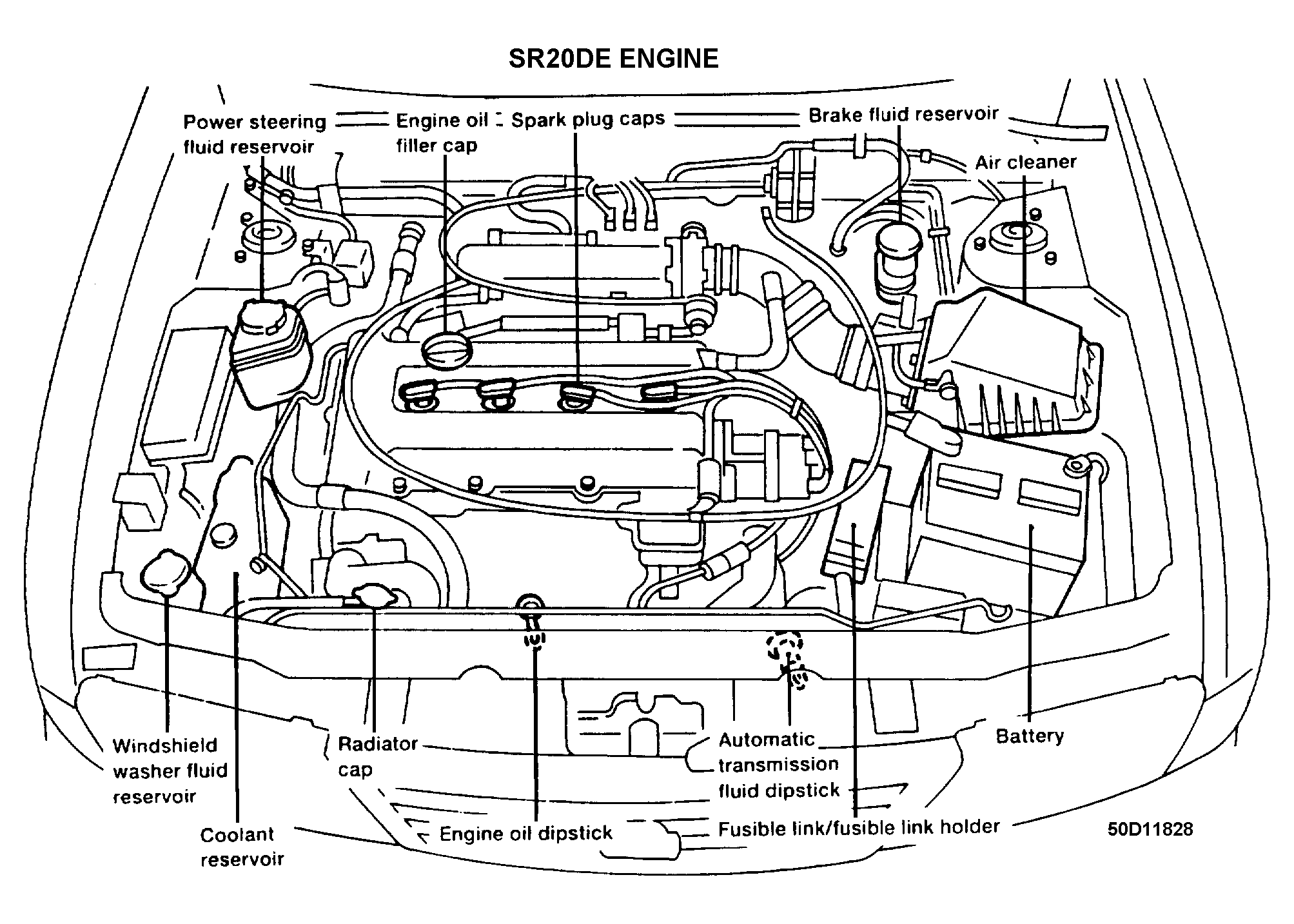

Fig 2: Service Point Locations (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Removal of Speedometer pinion required to check oil level.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
