Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| ABS Relay Unit | On left side of engine compartment. |

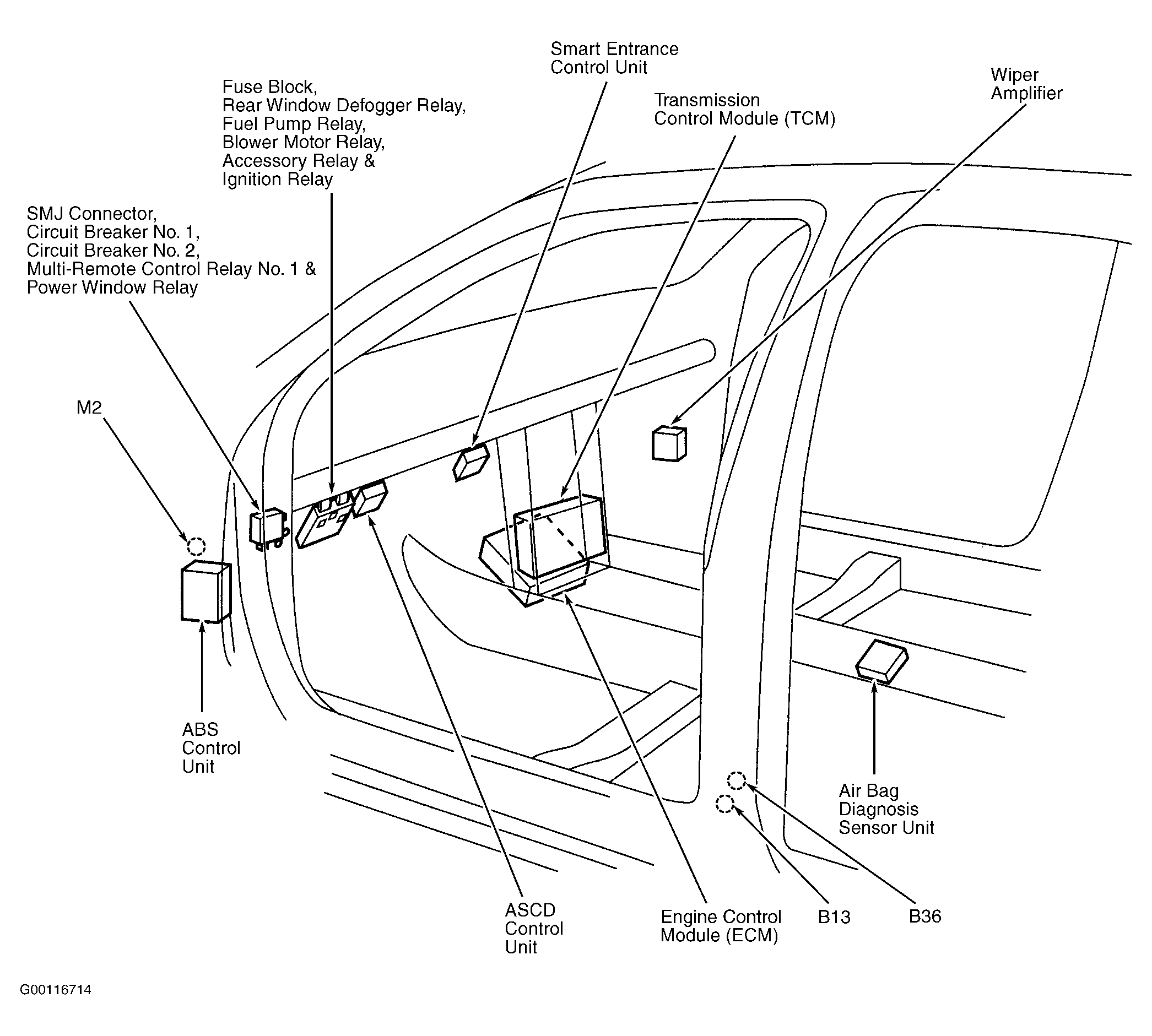

| Circuit Breaker No. 1 | Behind left side of dash. See Figure. |
| Circuit Breaker No. 2 | Behind left side of dash. See Figure. |
| Fuse Block | Under left side of dash. See Figure. |

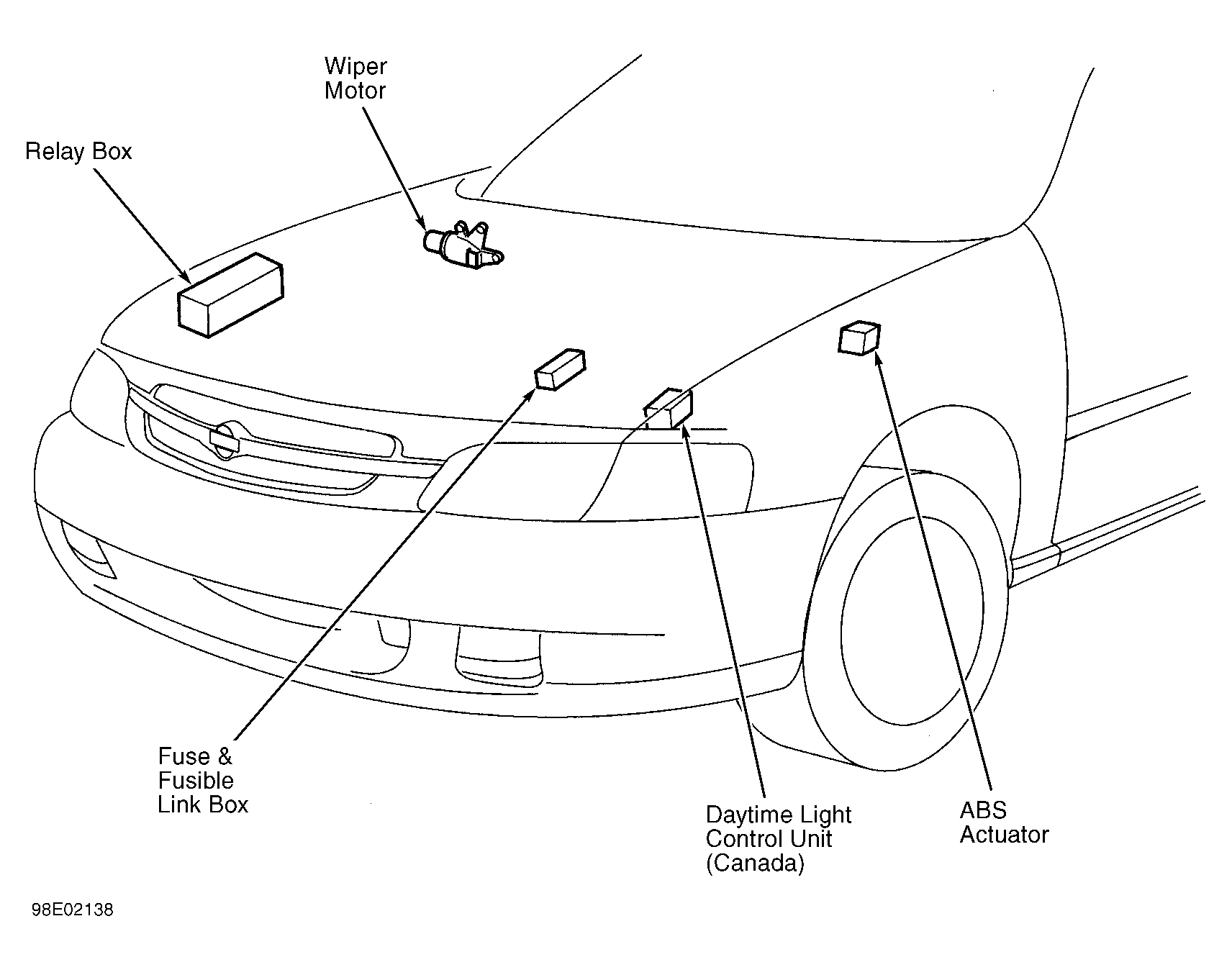

| Fuse & Fusible Link Box | On left side of engine compartment. See Figure. |

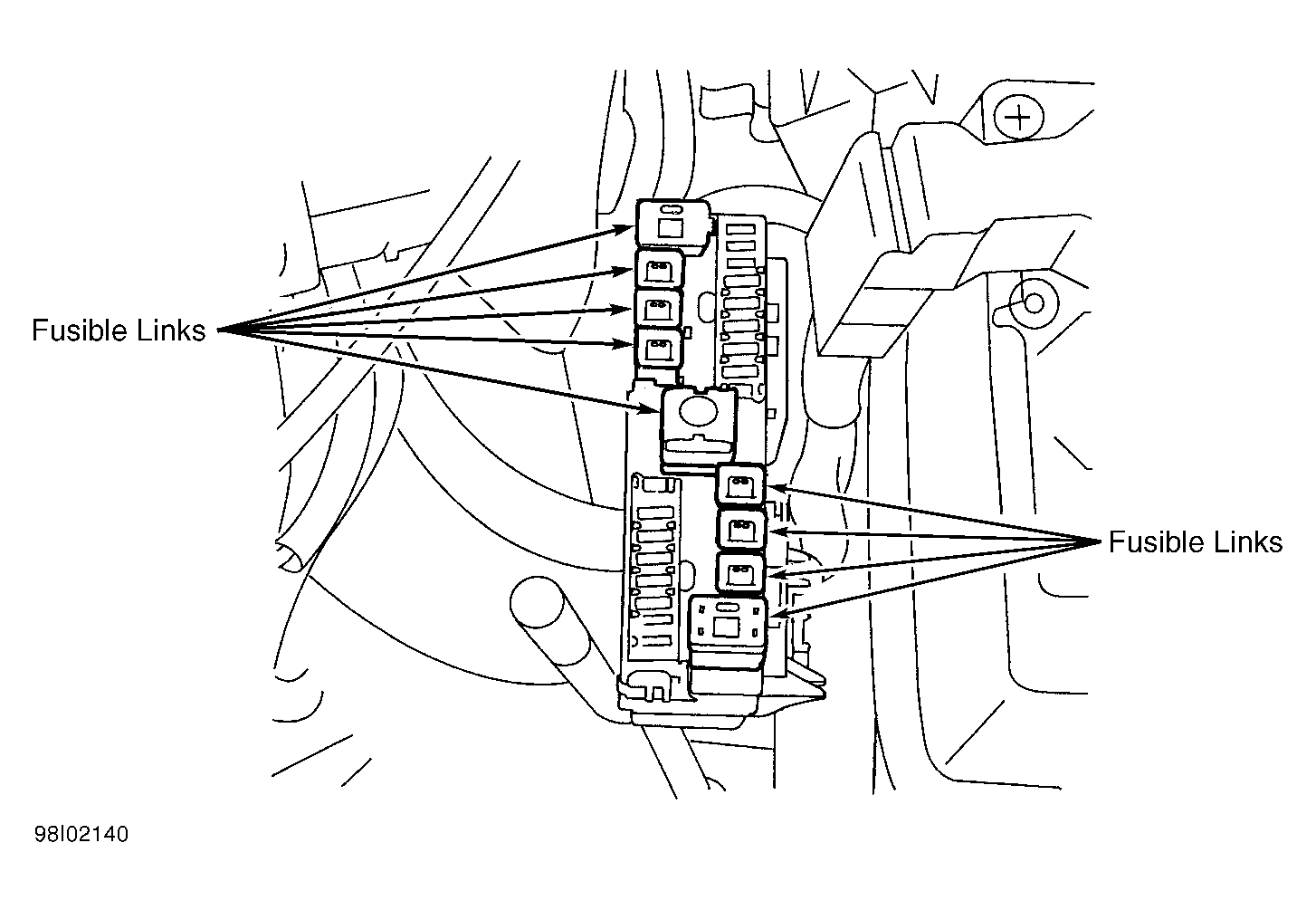

| Fusible Links | In fuse & fusible link box. See Figure. |
| Relay Box | On right side of engine compartment. See Figure. |
