Connector Identification
>>
Engine Harness
Engine Harness

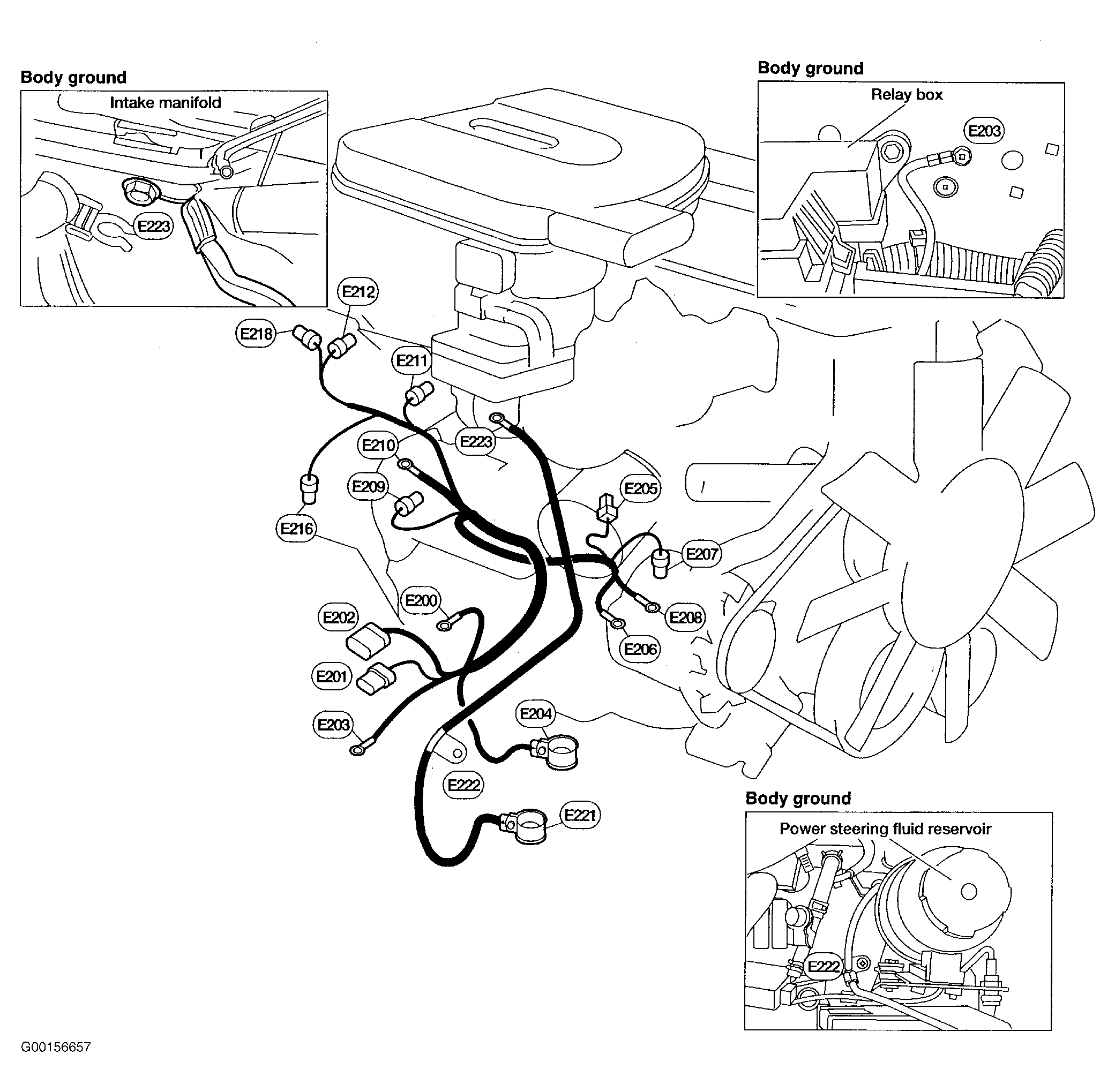

Fig 1: Identifying Engine Harness Connector Locations (Frontier 2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.

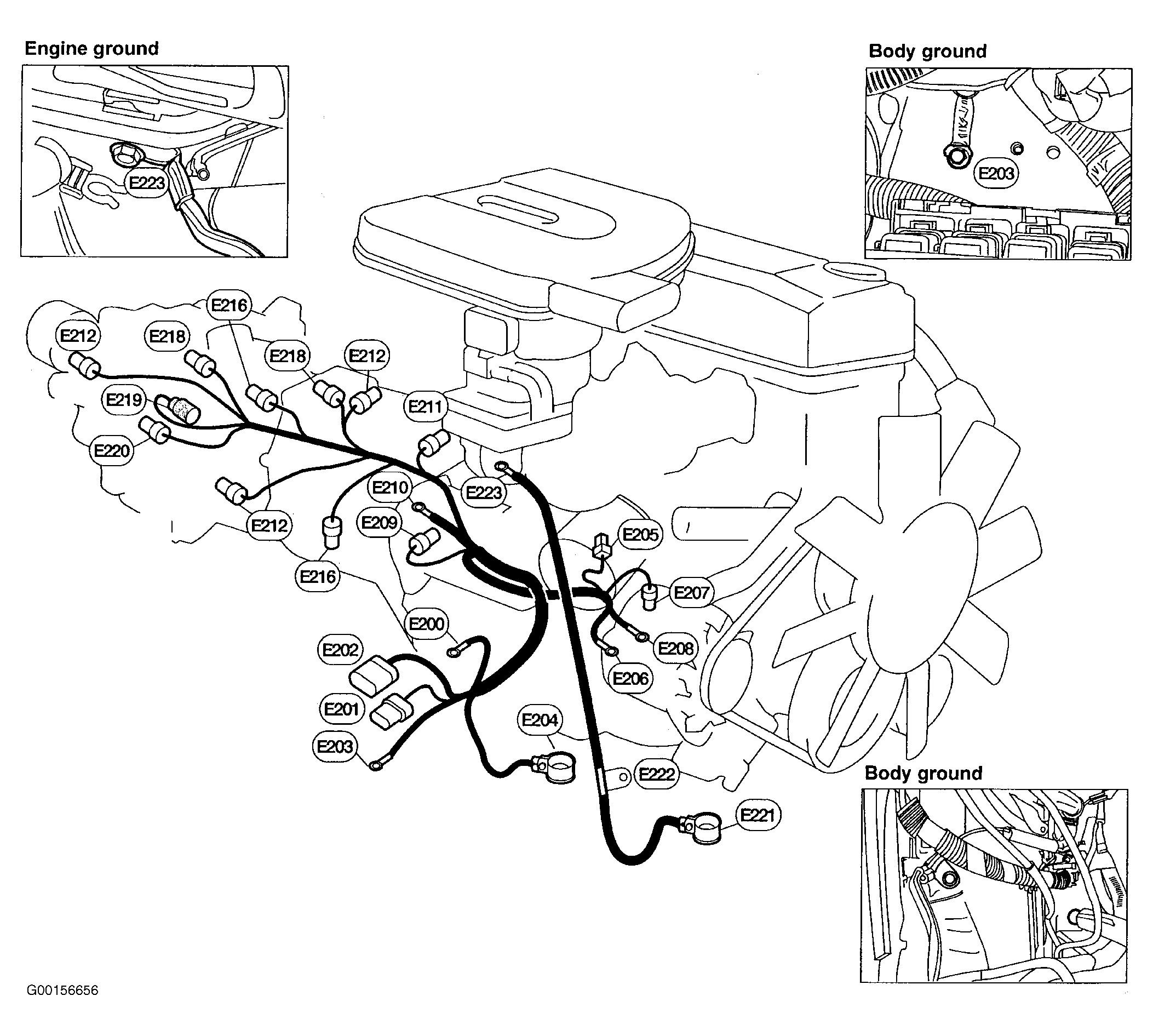

Fig 2: Identifying Engine Harness Connector Locations (Xterra 2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
