Normal Control

The line pressure to throttle opening characteristics is set for suitable clutch operation.

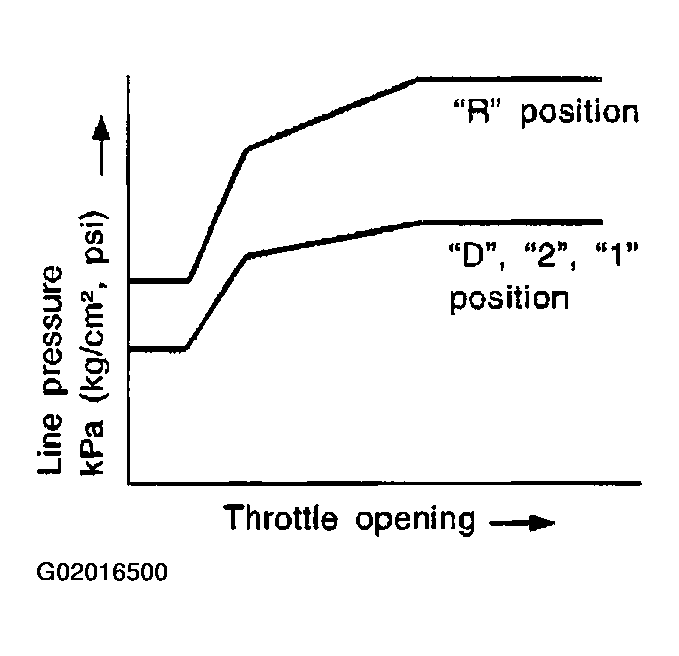

Fig 1: Automatic Transaxle Control Mechanism Line Pressure Control Graph (Normal Control)
G02016500Courtesy of NISSAN MOTOR CO., U.S.A.
