Active Test Procedure

NOTE: When conducting Active test, vehicle must be stationary. When ABS warning lamp stays on, never conduct Active test.
  1. Turn ignition switch OFF.

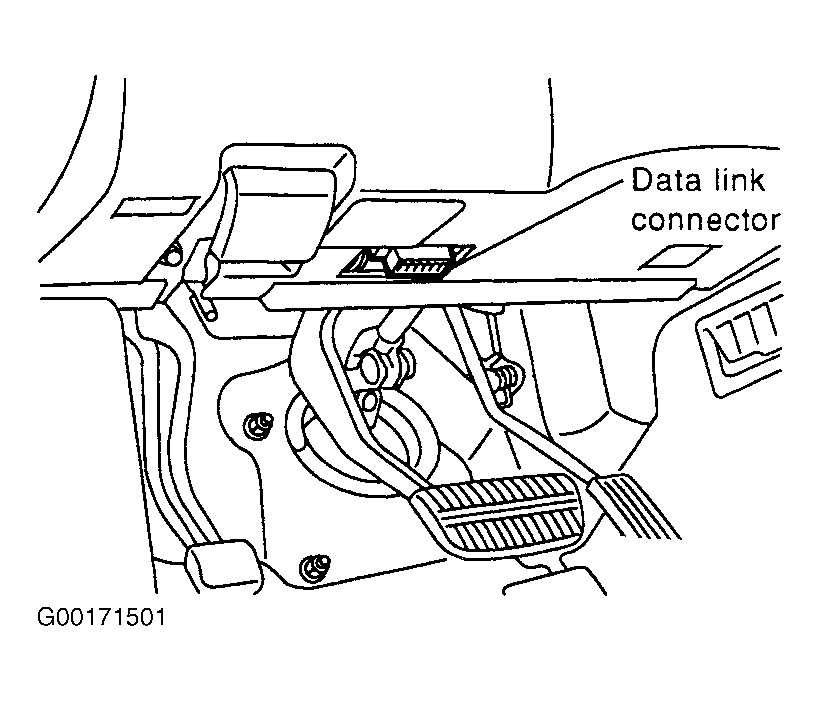

  2. Connect CONSULT-II to data link connector. See Figure .
  3. Start engine.
  4. Touch "START" on CONSULT-II screen.
  5. Touch "ABS".
  6. Touch "ACTIVE TEST".
  7. Select active test item by touching screen.
  8. Touch "START".
  9. Carry out the active test by touching screen key.

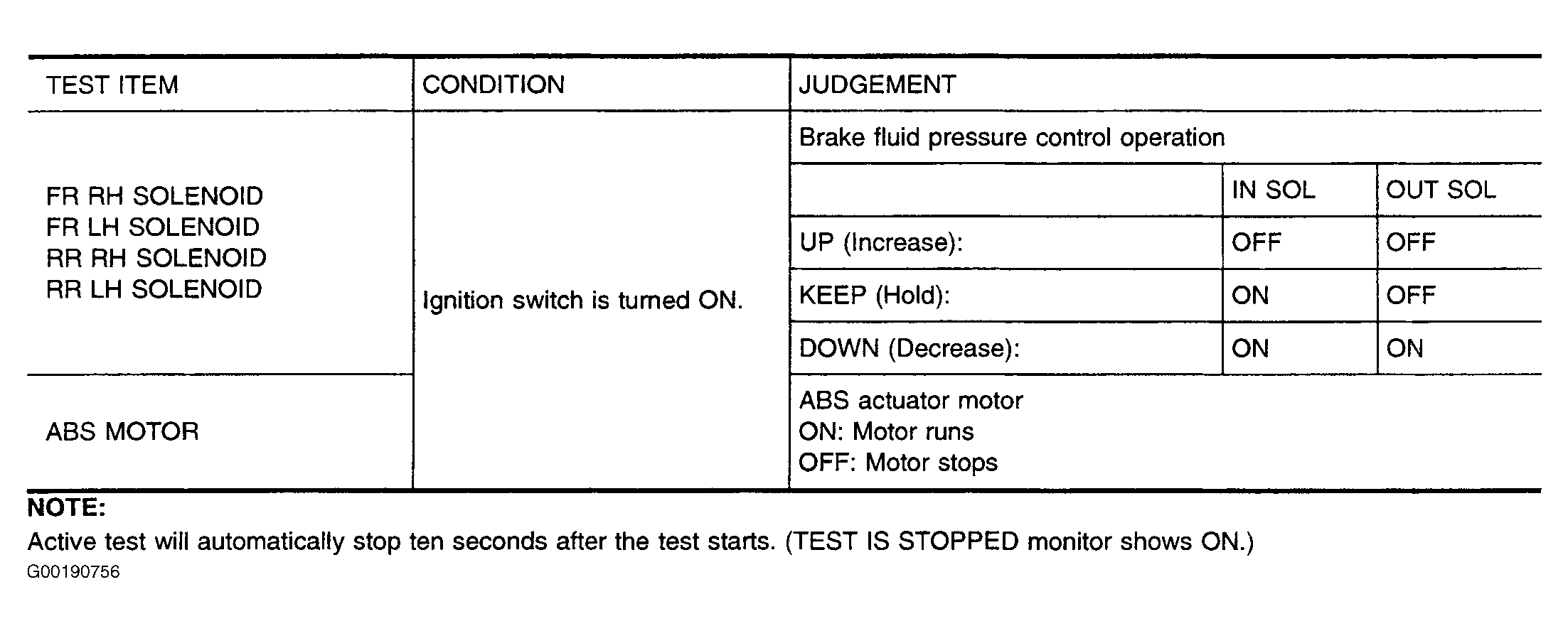

  10. For active test mode descriptions, see Fig 1 .
Fig 1: Identifying Active Test Mode
G00190756Courtesy of NISSAN MOTOR CO., U.S.A.
