Disassembly And Assembly: Notes

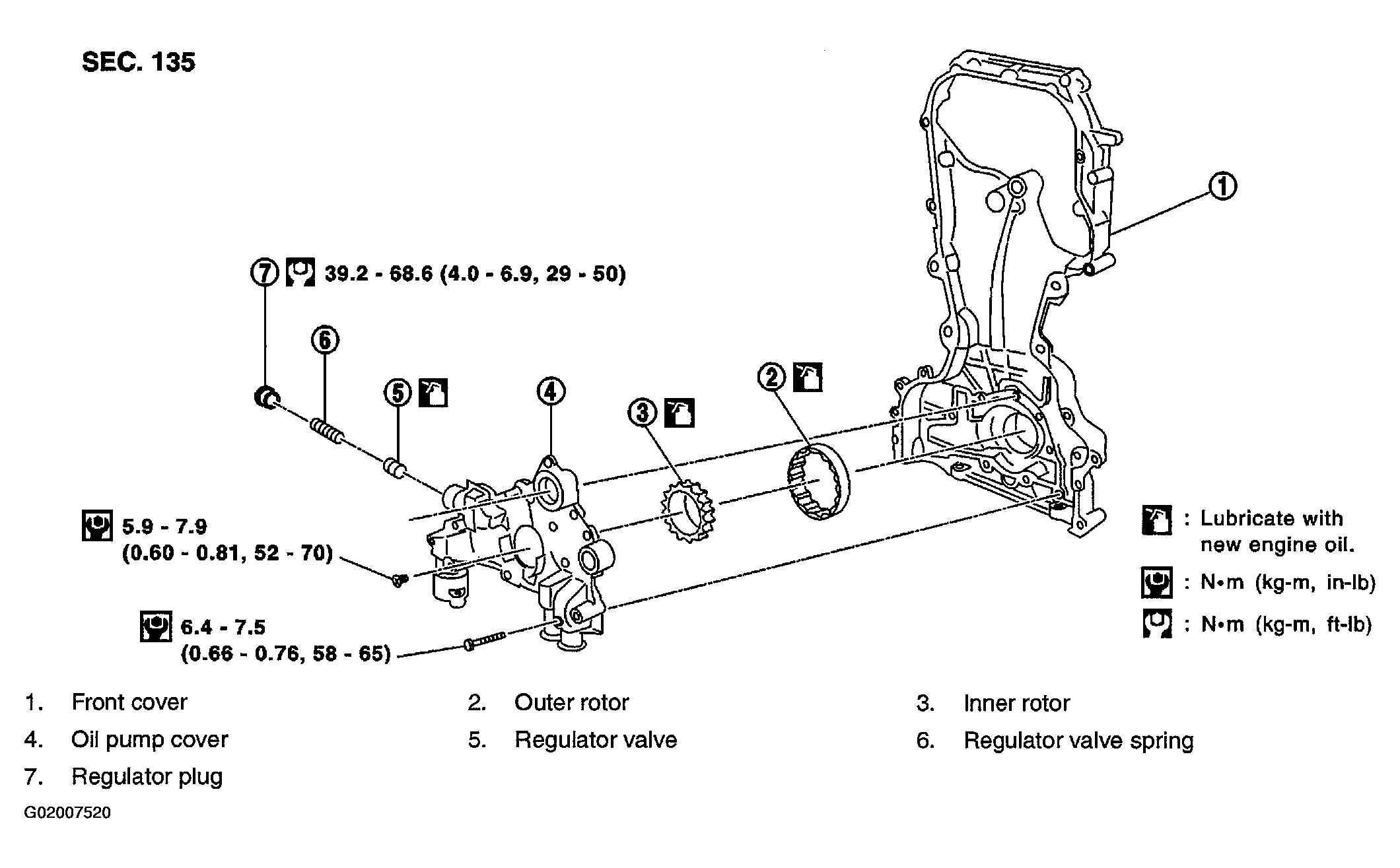

Fig 1: Exploded View Of Oil Pump

G02007520

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Before installation, apply new engine oil to the parts as instructed in Fig 1 .
