Front Air Control

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the five control knobs from the control unit.
  2. Remove the shift knob.
  3. Remove cluster lid C, disconnect the front air control electrical connector. Refer to CLUSTER LID C .
  4. Remove the screws securing the front air control to cluster lid C.
  5. Remove the front air control.
  6. Installation is the reverse order of removal.

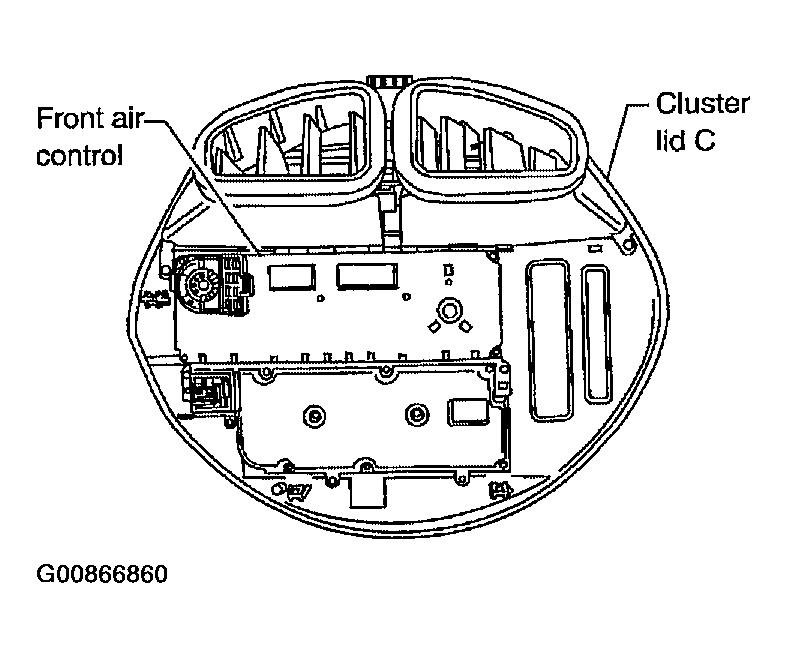

    Fig 1: Identifying Front Air Control Cluster Lid
    G00866860Courtesy of NISSAN MOTOR CO., U.S.A.
