2002 Model

WARNING: This page is about a different car, the 2003 Nissan Pathfinder and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For encoder and limit switch check, see Fig 1 -Fig 5 .

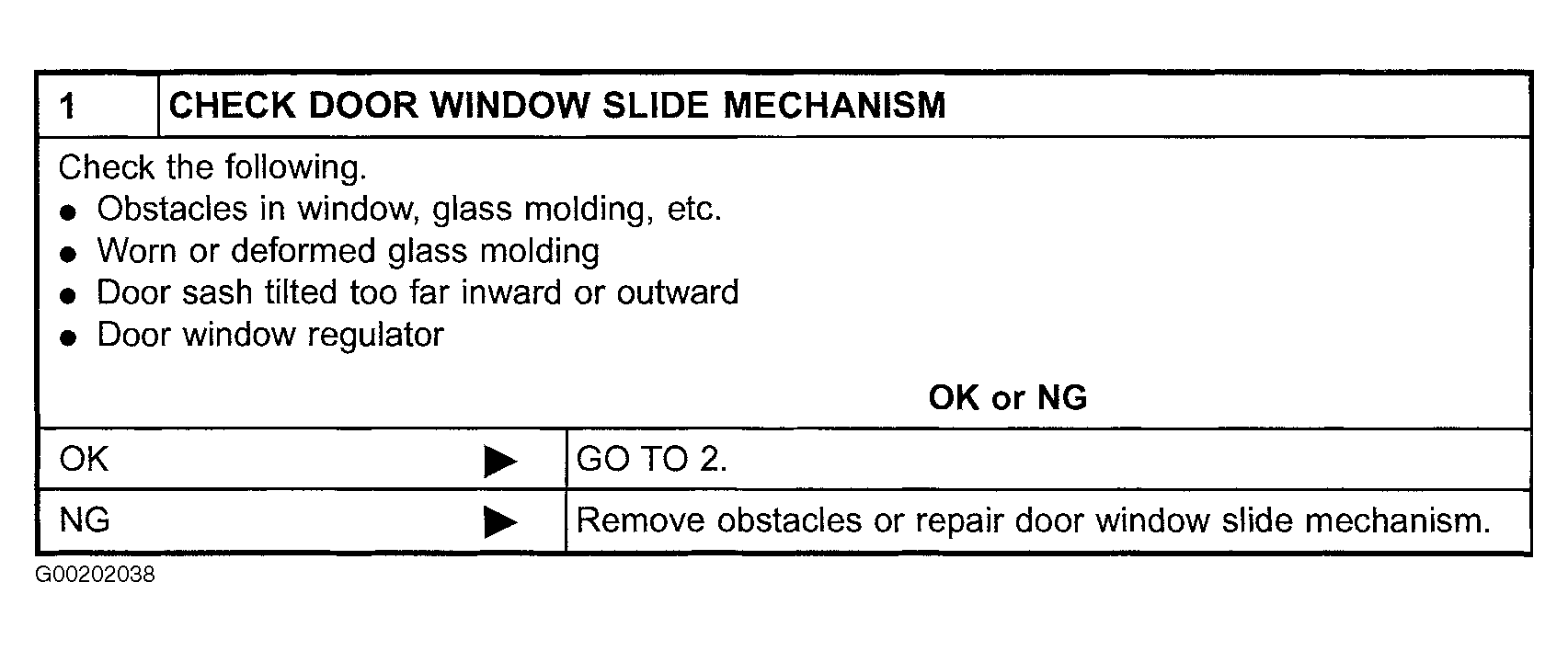

Fig 1: Identifying Encoder & Limit Switch Check, Step 1

G00202038

Courtesy of NISSAN MOTOR CO., U.S.A.

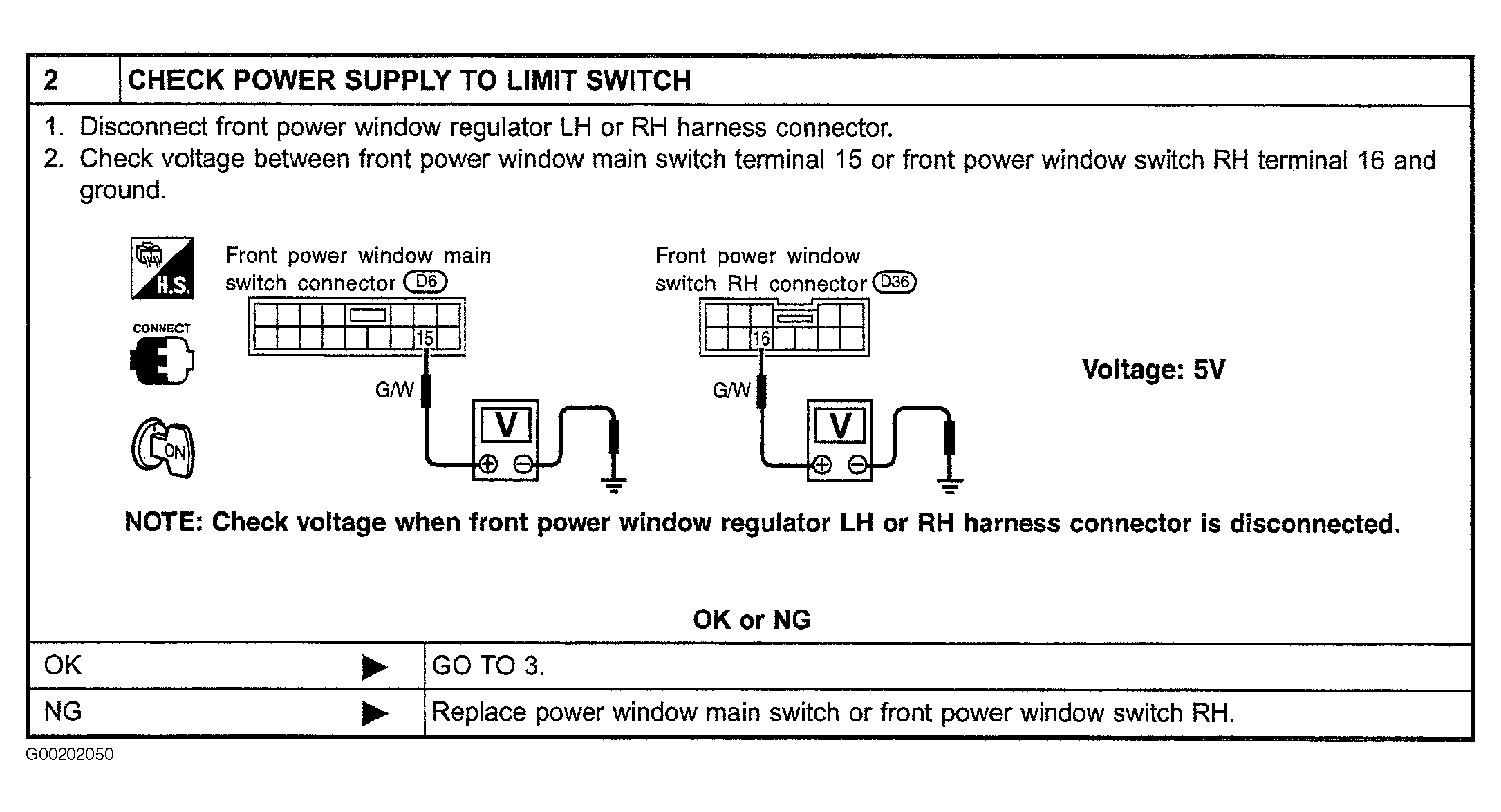

Fig 2: Identifying Encoder & Limit Switch Check, Step 2 (2002 Model)

G00202050

Courtesy of NISSAN MOTOR CO., U.S.A.

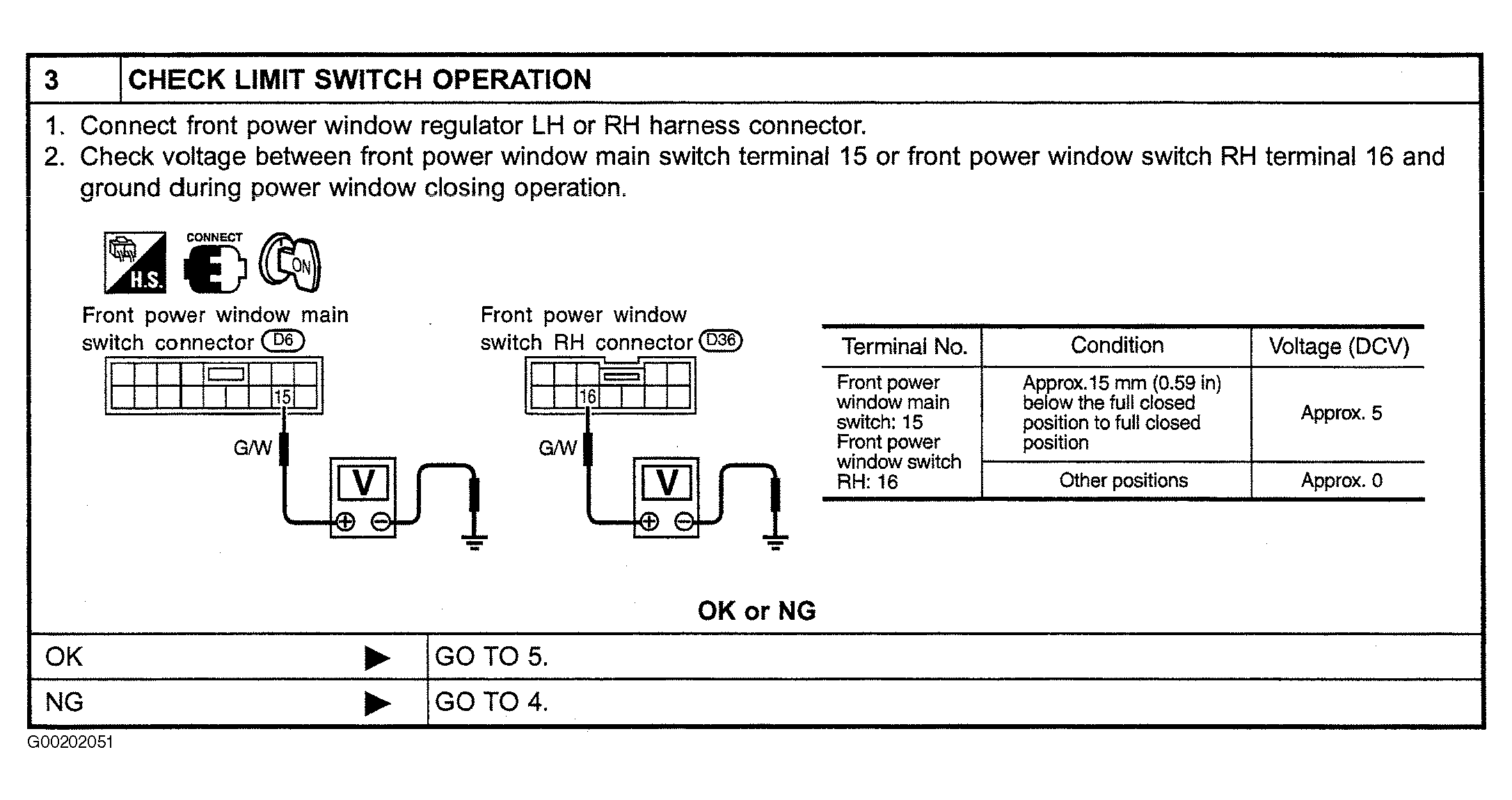

Fig 3: Identifying Encoder & Limit Switch Check, Step 3 (2002 Model)

G00202051

Courtesy of NISSAN MOTOR CO., U.S.A.

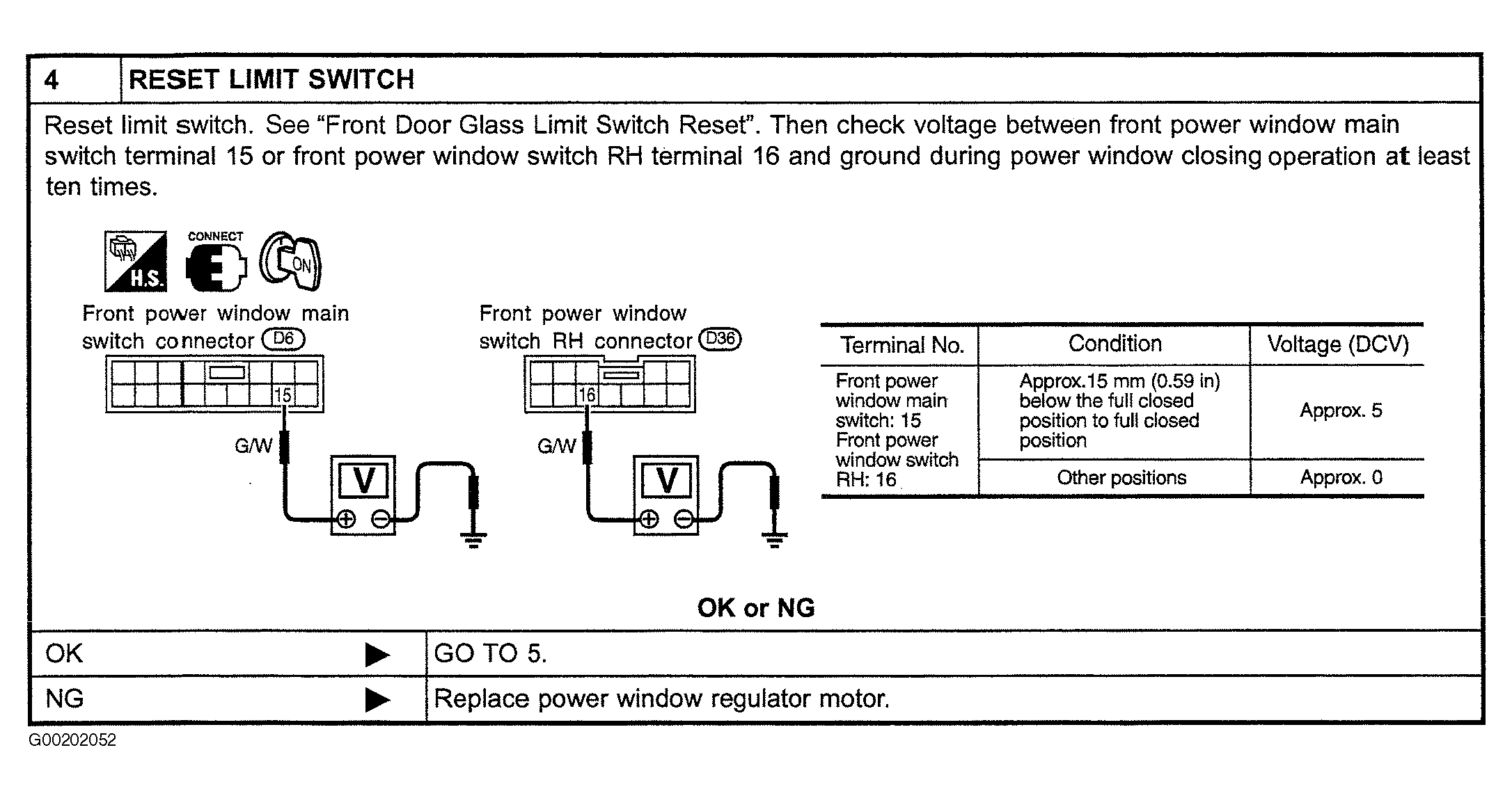

Fig 4: Identifying Encoder & Limit Switch Check, Step 4 (2002 Model)

G00202052

Courtesy of NISSAN MOTOR CO., U.S.A.

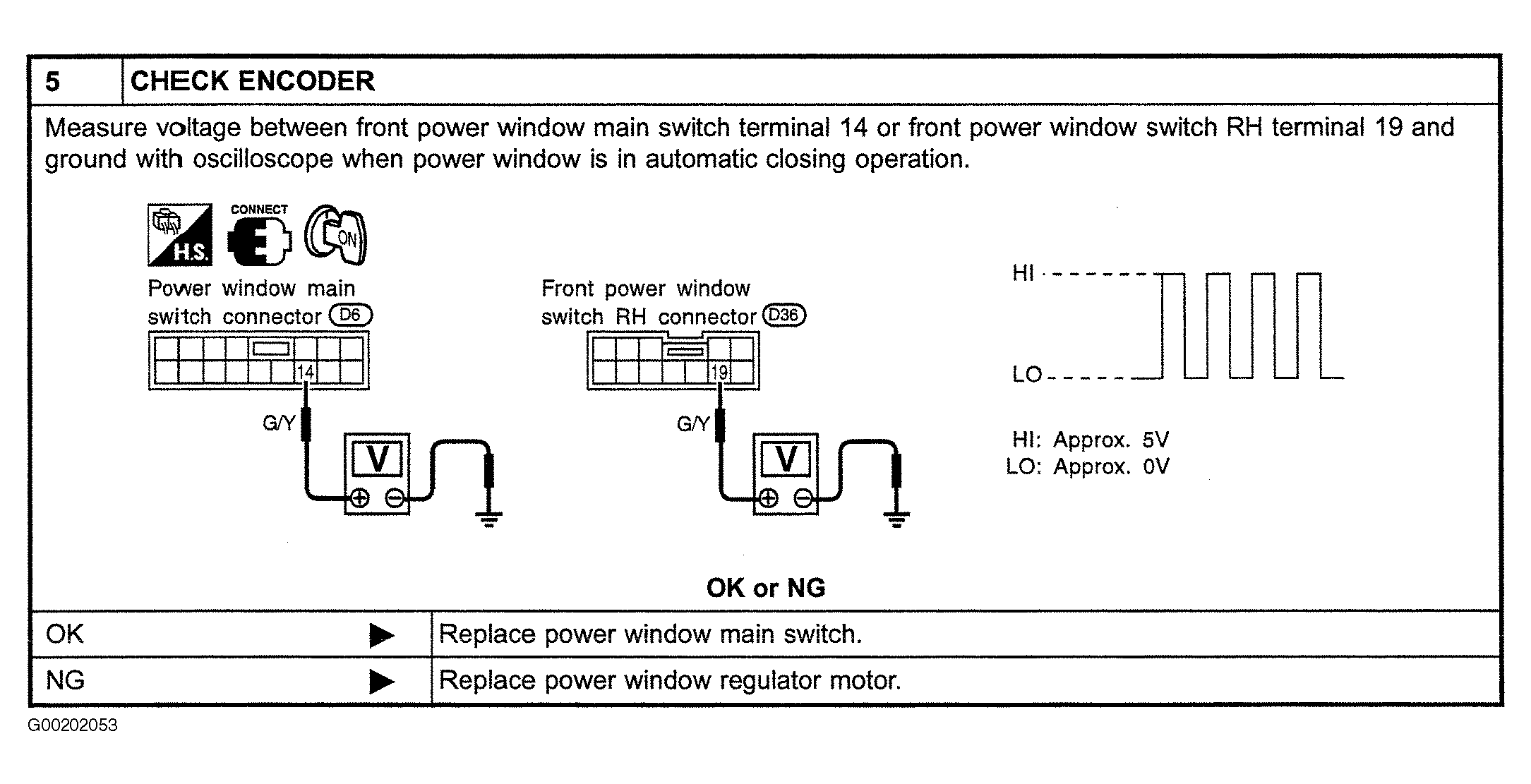

Fig 5: Identifying Encoder & Limit Switch Check, Step 5 (2002 Model)

G00202053

Courtesy of NISSAN MOTOR CO., U.S.A.
