Normal Control

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Each clutch is adjusted to the necessary pressure to match the engine drive force.

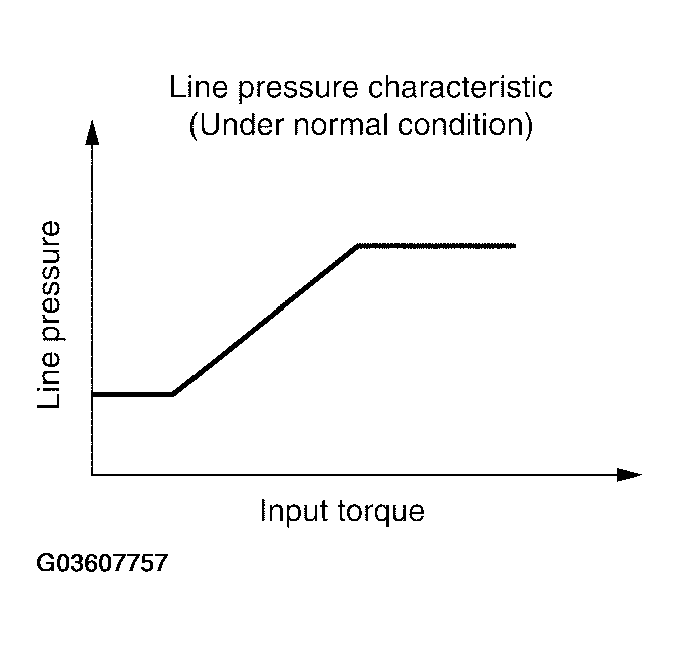

Fig 1: Identifying Line Pressure Characteristic - Under Normal Condition
G03607757Courtesy of NISSAN MOTOR CO., U.S.A.
