Normal Control

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Each clutch is adjusted to the necessary pressure to match the engine drive force.

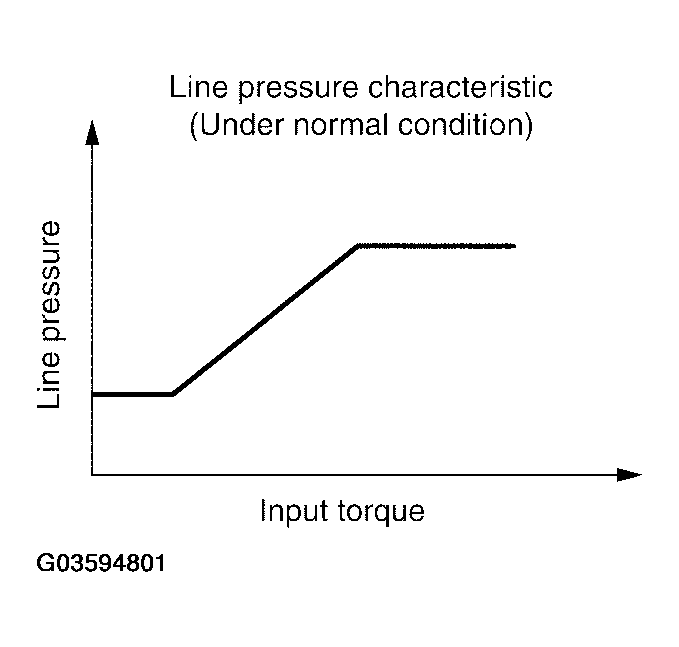

Fig 1: Line Pressure Versus Input Torque Graph (Normal Control)
G03594801Courtesy of NISSAN MOTOR CO., U.S.A.
