Section 1660 (Transfer Case)
>>
4WD System
>>
Cross-section View
Cross-section View
WARNING:
This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

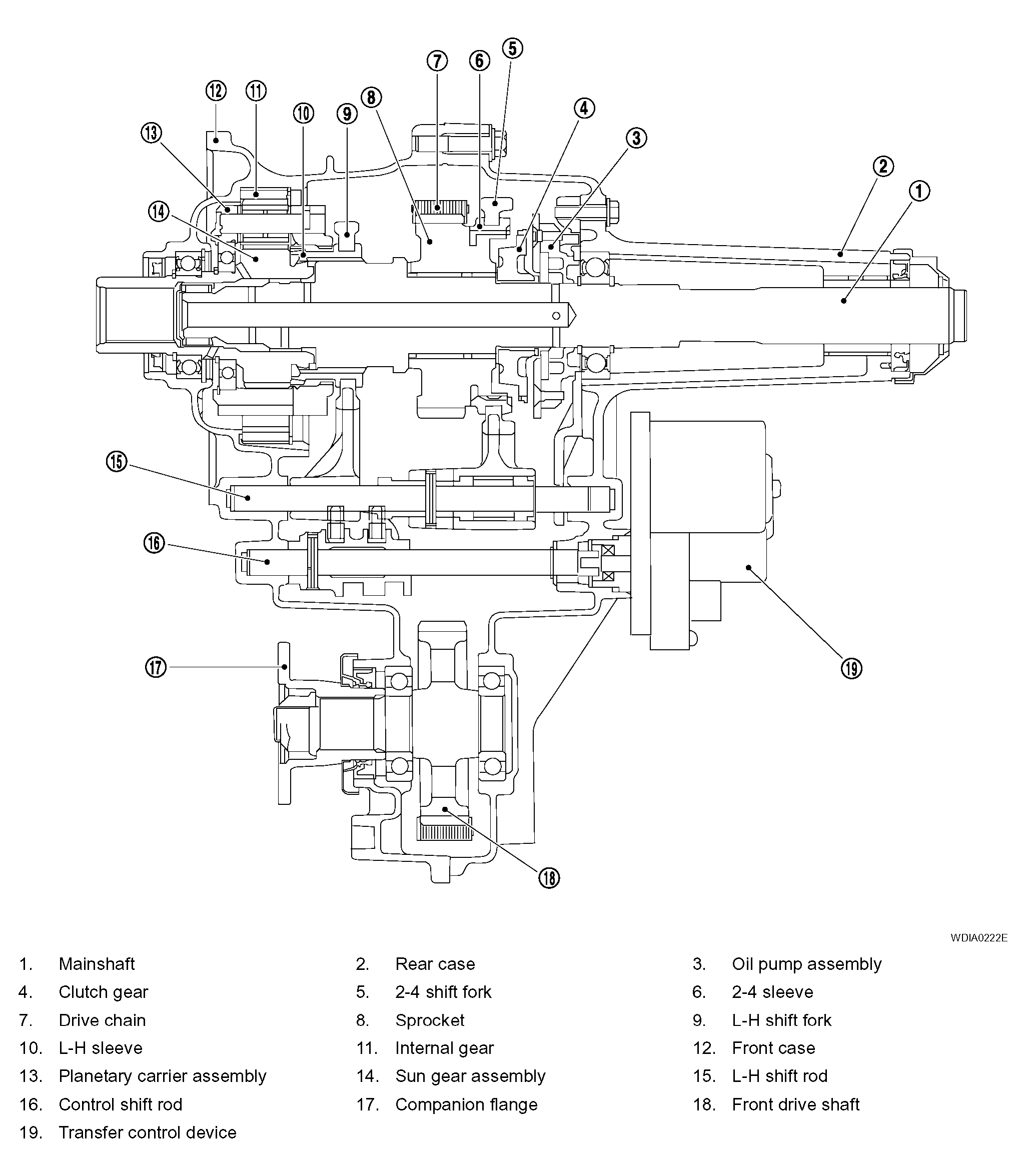

Fig 1: Identifying Cross-Section View Of Transfer (4WD System)
Courtesy of NISSAN MOTOR CO., U.S.A.
