Section 2157 (Charging System)
>>
Removal And Installation
>>
Generator
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

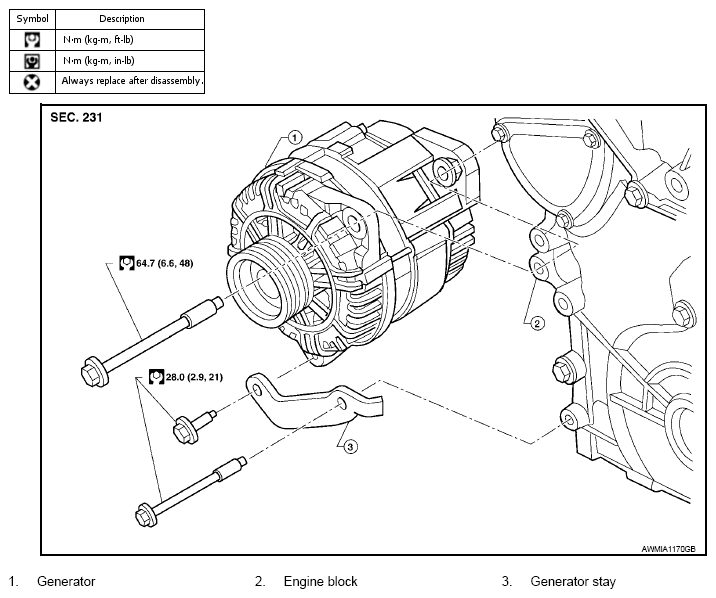

Fig 1: Exploded View Of Generator With Torque Specifications
