Component Inspection: Injector
WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect injector harness connector.

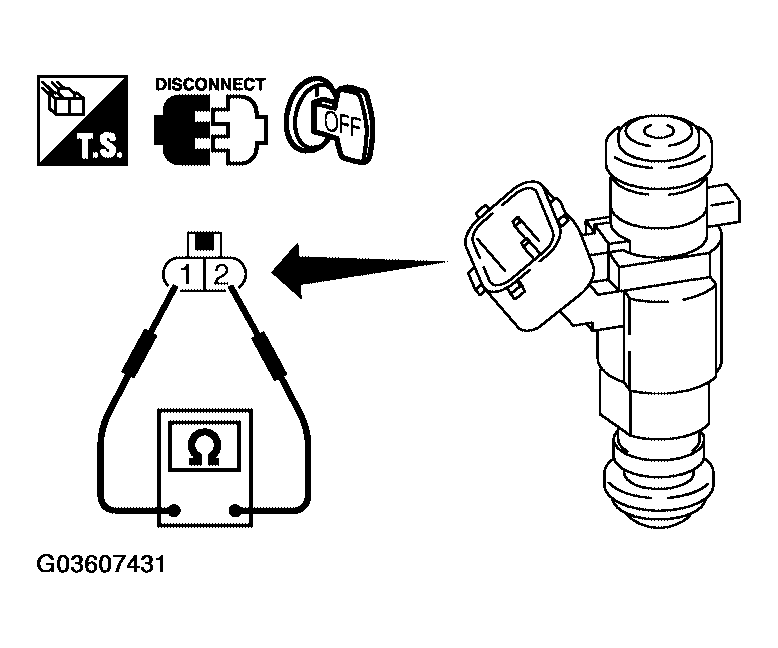

- Check resistance between terminals as shown in the figure.
Resistance: 11.1 - 14.5Ω [at 10 - 60°C (50 - 140°F)]
Courtesy of NISSAN MOTOR CO., U.S.A.
