Column Shift Model

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

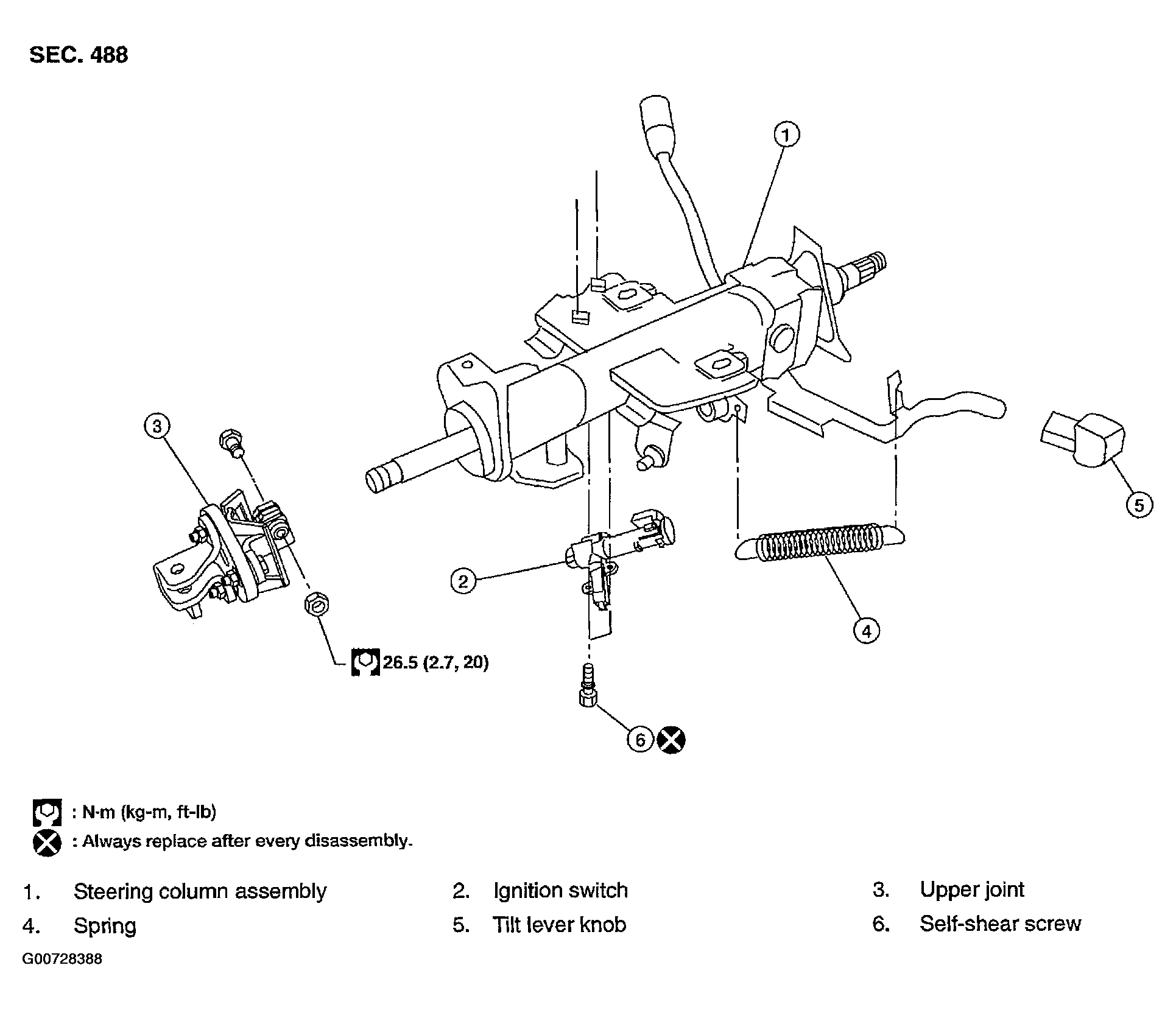

Fig 1: Exploded View Of Column Shift Model With Torque Specifications
G00728388Courtesy of NISSAN MOTOR CO., U.S.A.
