Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "BCM" on "SELECT TEST ITEM" screen.

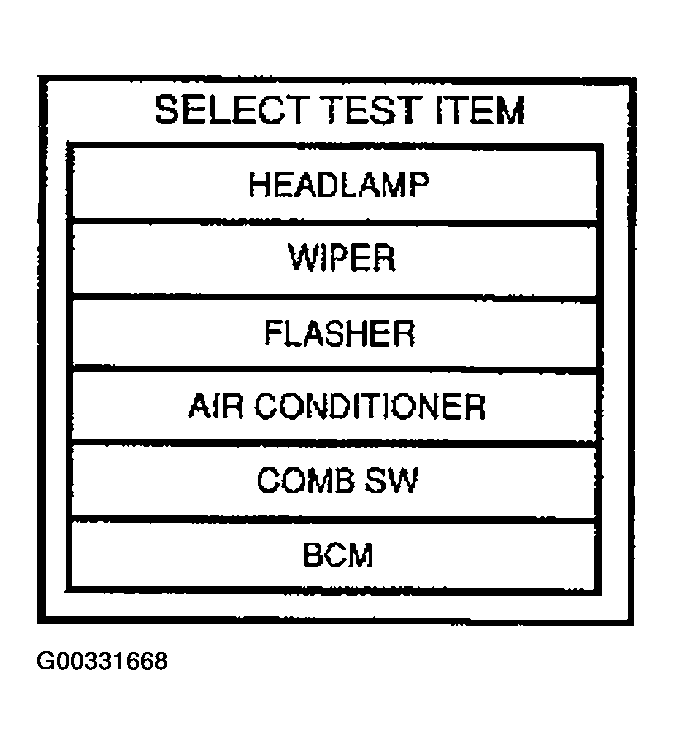

    Fig 1: CONSULT-II Display
    G00331668Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  3. Touch item on "SELECT WORK ITEM" screen.
  4. Touch "START".
  5. Touch "CHANGE SET".
  6. The setting will be changed and "RESETTING COMPLETED" will be displayed.
  7. Touch "END".

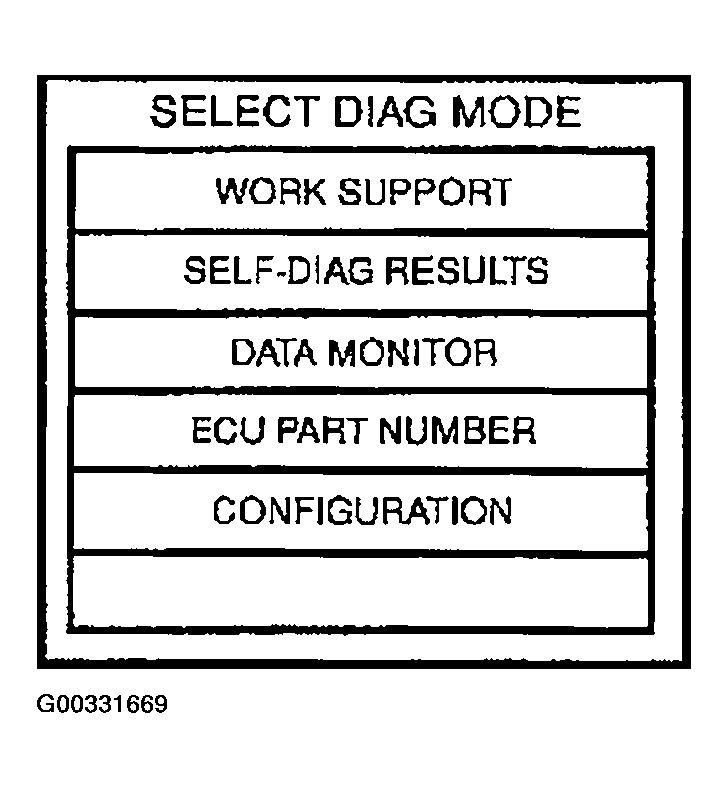

Fig 2: CONSULT-II Display
G00331669Courtesy of NISSAN MOTOR CO., U.S.A.
