CAN Communication Unit For 2WD Models: Notes

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Go to CAN system, when selecting your car model from the following table.

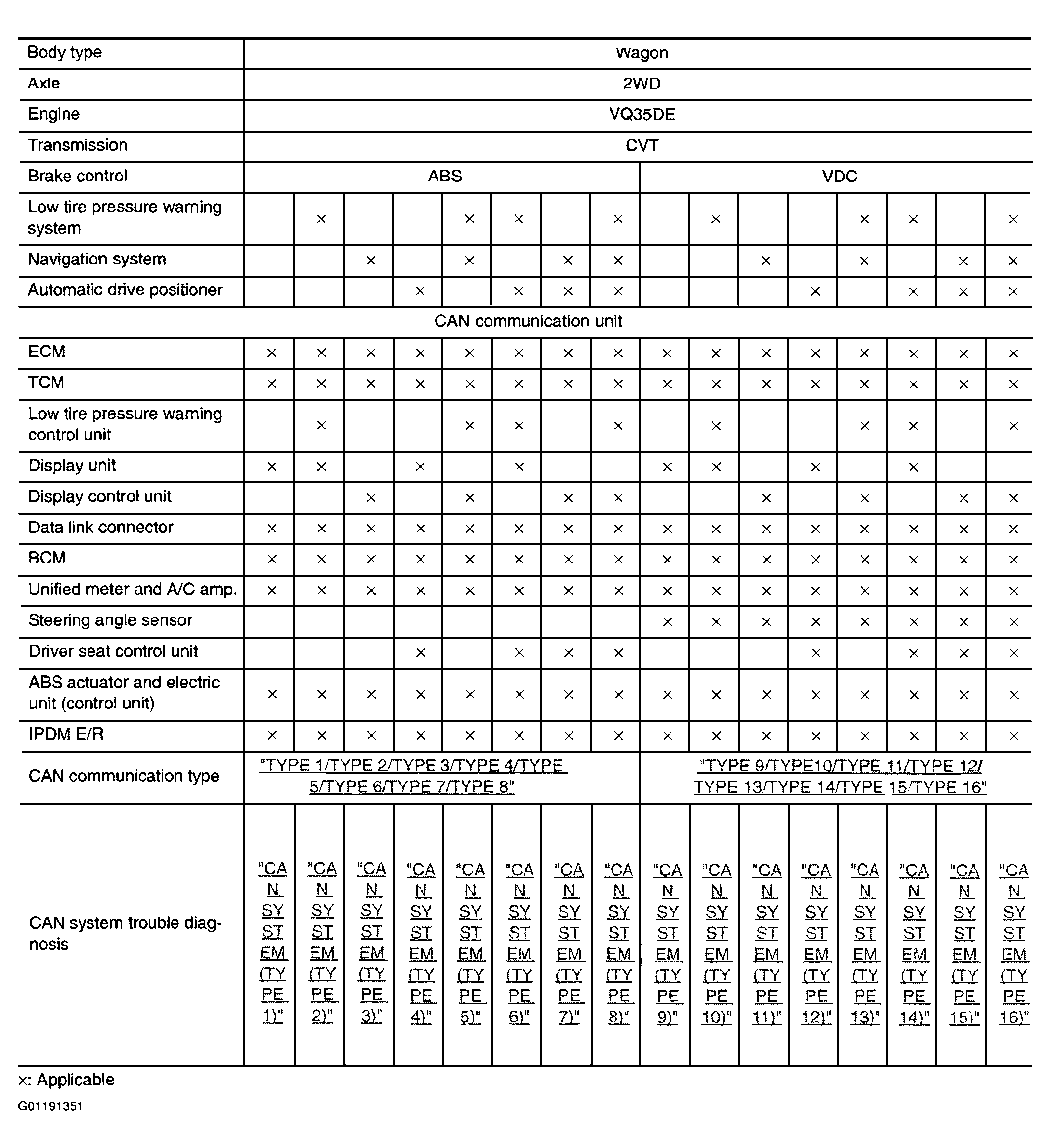

Fig 1: Determining CAN 2WD Model System Type
G01191351Courtesy of NISSAN MOTOR CO., U.S.A.
