Clutch System Qr25DE
>>
Clutch System
>>
Components
Clutch System: Components

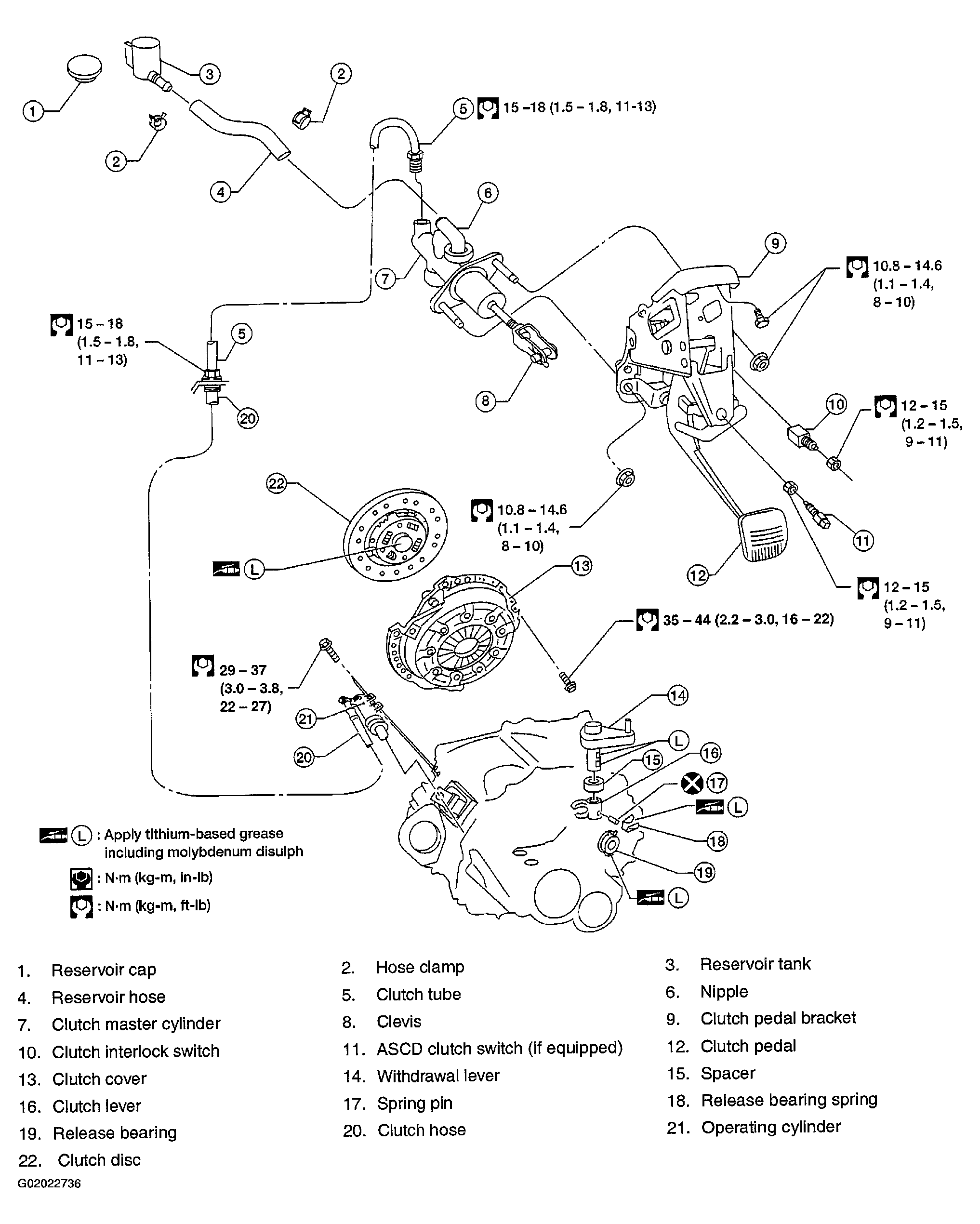

Fig 1: Identifying Clutch System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
