Operation Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.

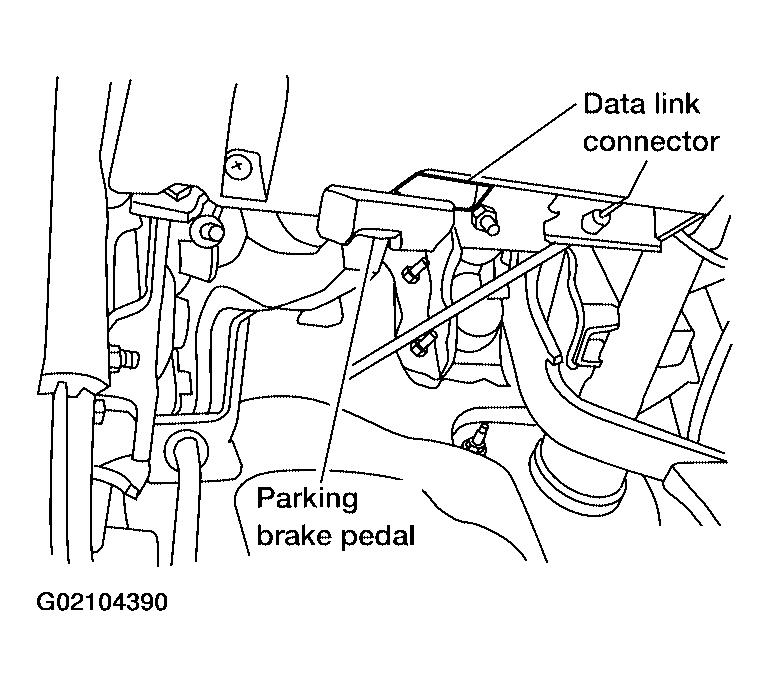

    3. Fig 1: Connecting CONSULT-II To Data Link Connector
    G02104390Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START" on display.
  5. Touch "ABS" on display.

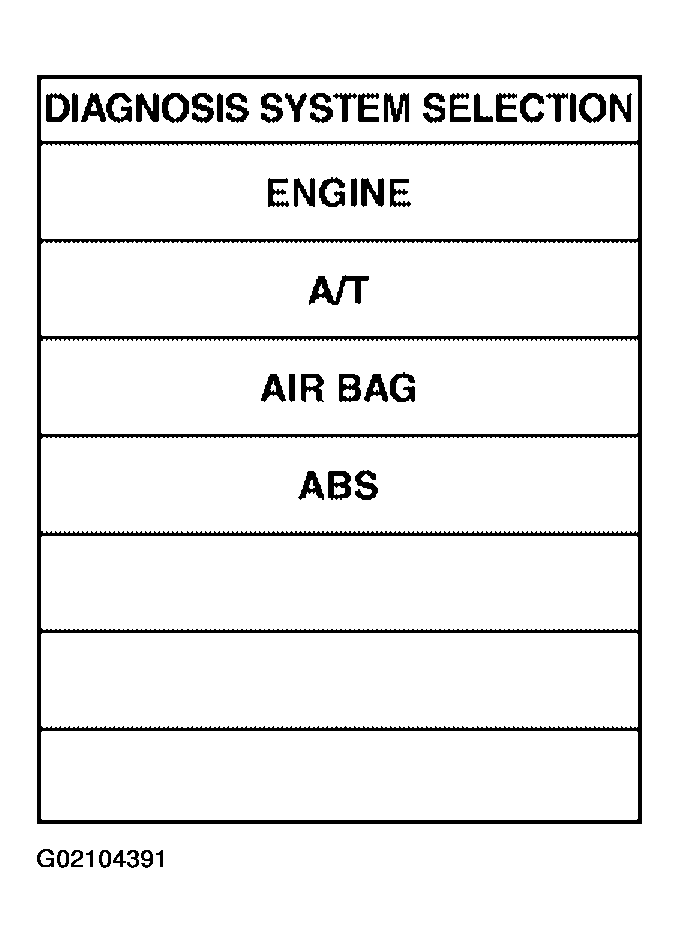

    Fig 2: Identifying CONSULT-II Display - ABS
    G02104391Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".

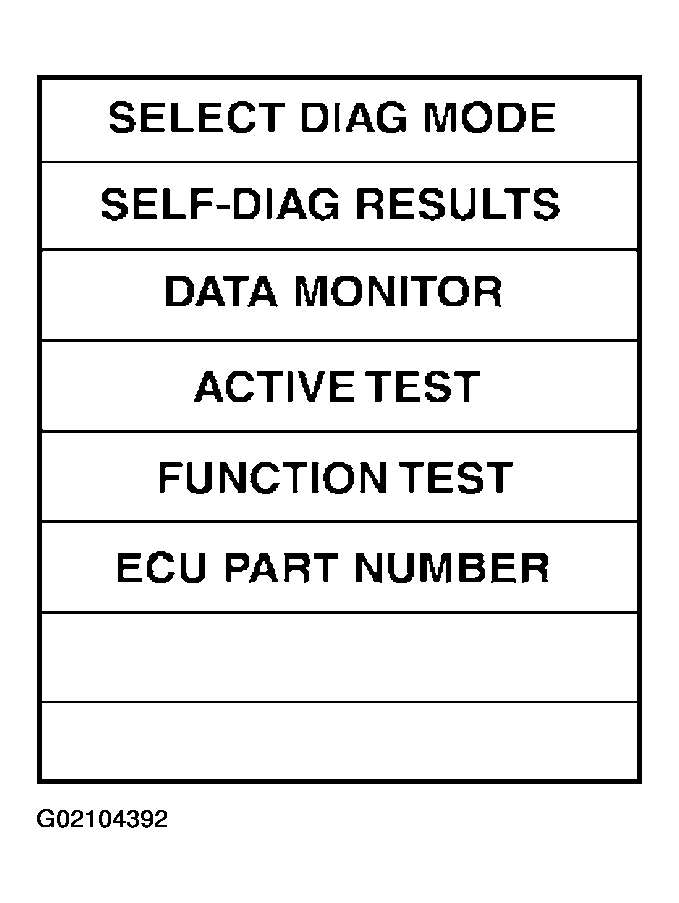

    Fig 3: Identifying CONSULT-II - DATA MONITOR
    G02104392Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Return to monitor item selection screen and touch any of "ECU INPUT SIGNALS", "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR" or "SELECTION FROM MENU". Refer to "DISPLAY ITEM LIST ".
  8. Touch "START".
  9. Screen of data monitor is displayed.

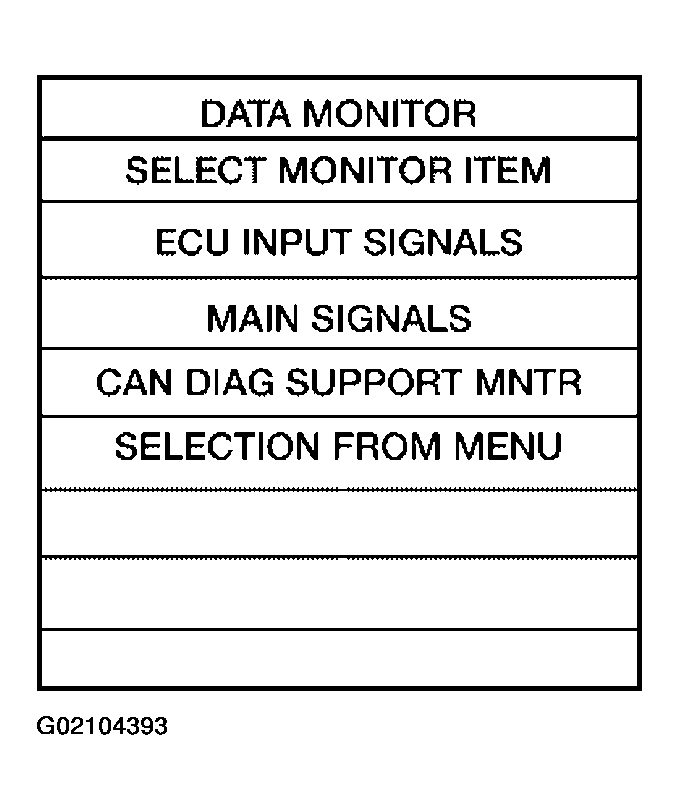

    Fig 4: Identifying CONSULT-II Data Monitor Display Selection
    G02104393Courtesy of NISSAN MOTOR CO., U.S.A.
