Connector Identification
>>
Engine Harness
Engine Harness

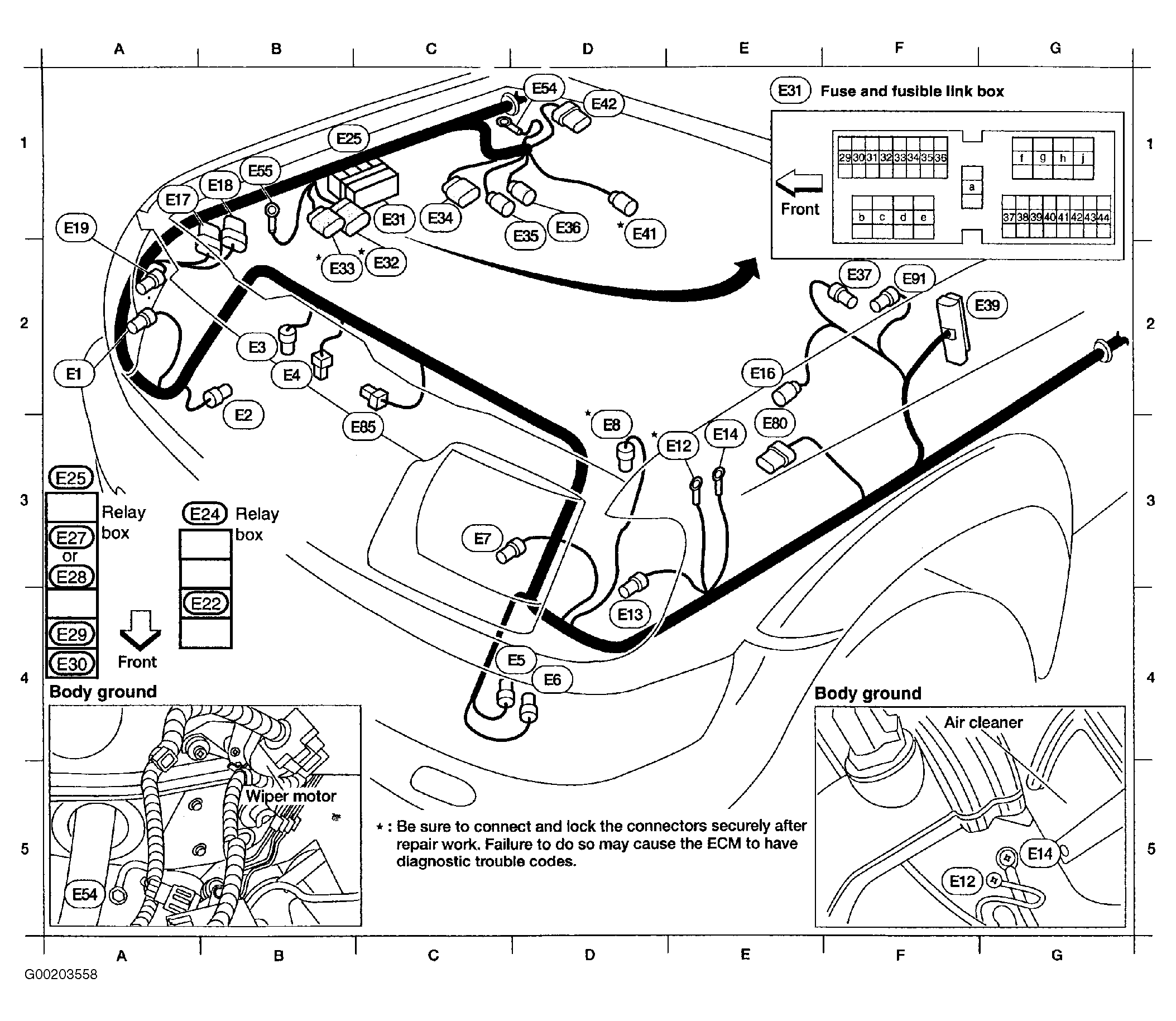

Fig 1: Identifying Engine Room Harness Connectors (Frontier 2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.

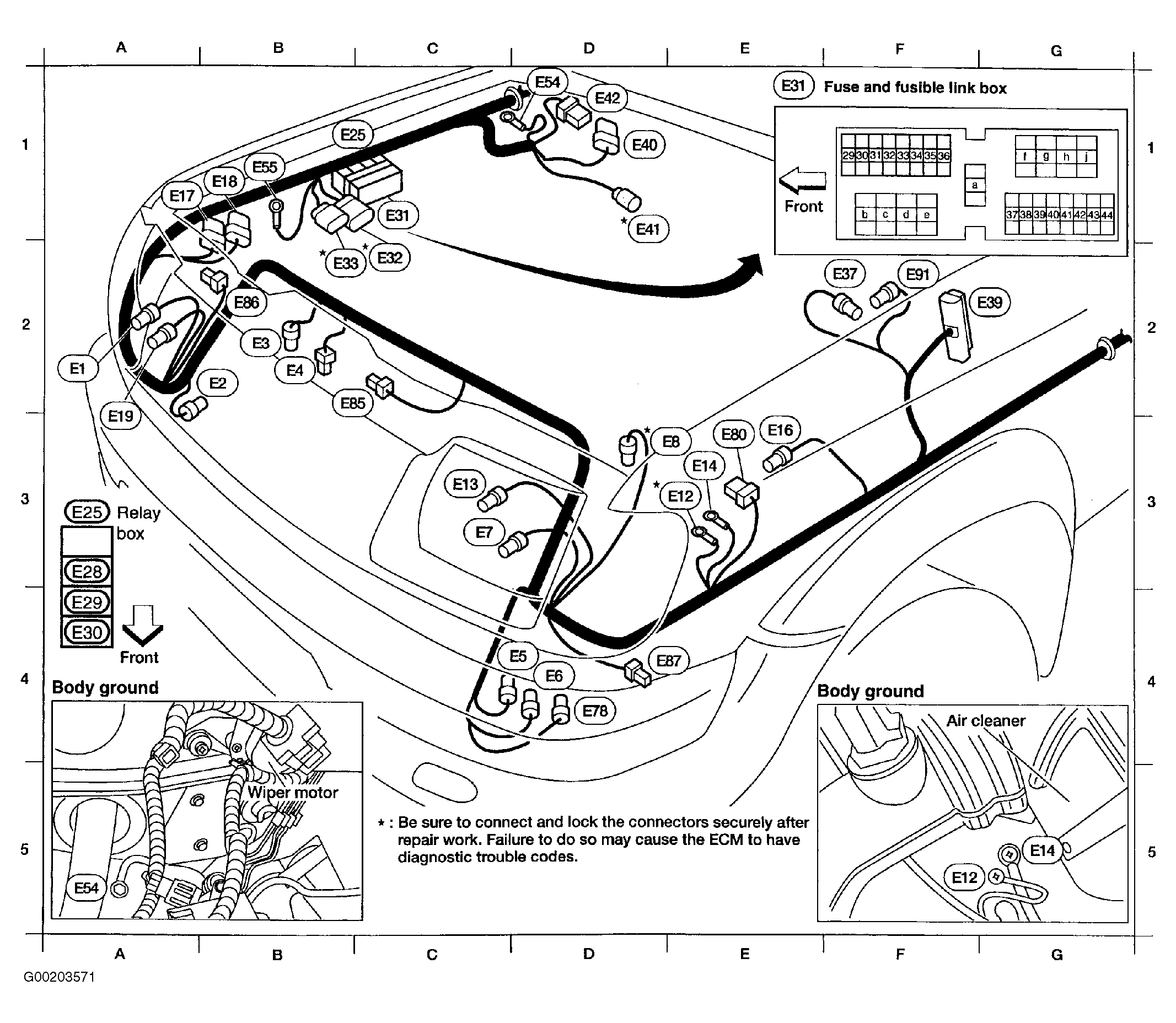

Fig 2: Identifying Engine Room Harness Connectors (Xterra 2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.

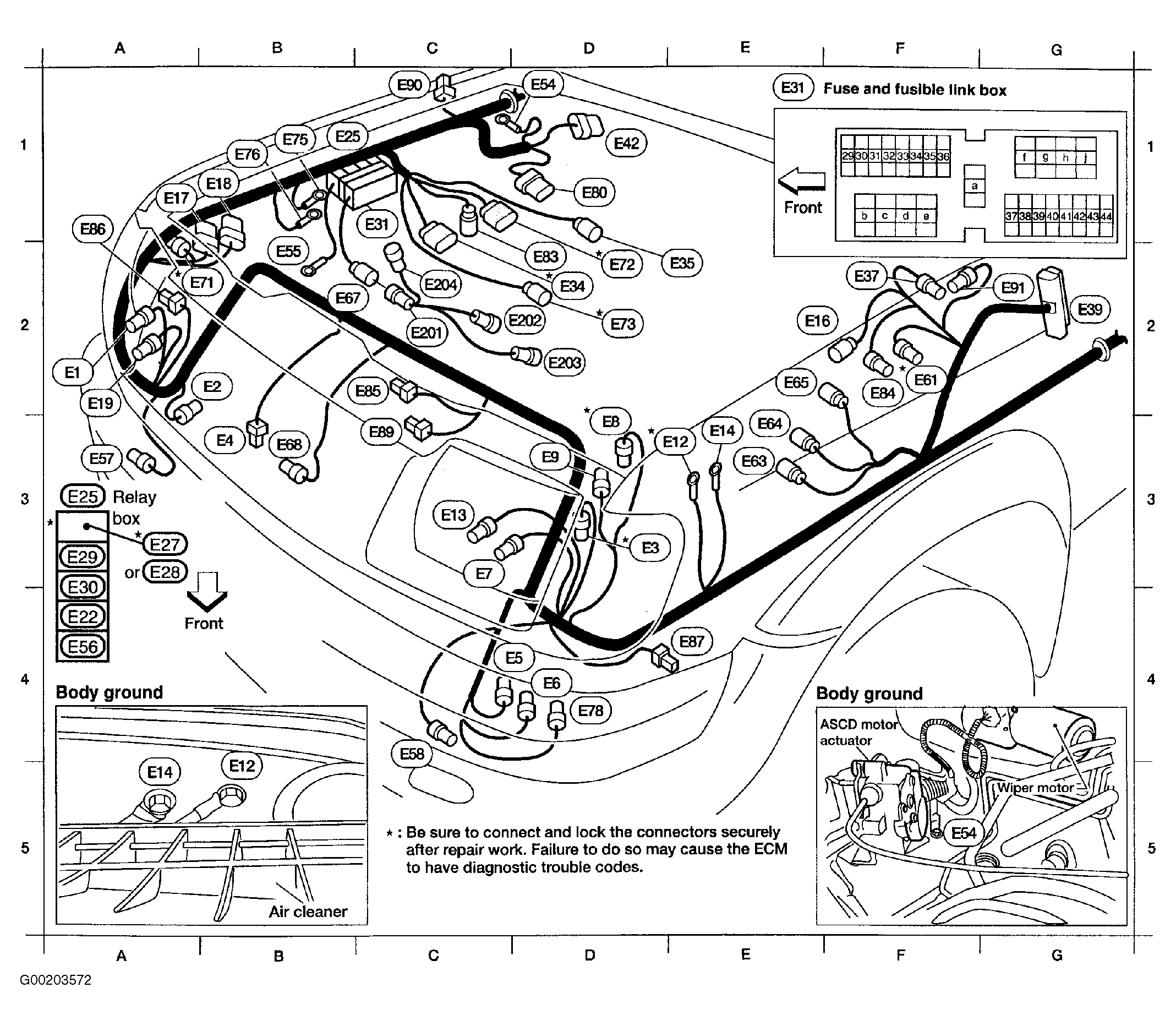

Fig 3: Identifying Engine Room Harness Connectors (Frontier 3.3L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Identifying Engine Room Harness Connectors (Xterra 3.3L)
Courtesy of NISSAN MOTOR CO., U.S.A.
