Home >> Nissan-Datsun >> 2003 >> Maxima GLE >> Repair and Diagnosis >> Brakes >> Traction Control >> Traction Control System >> Description >> Schematic

Traction Control System: Description: Schematic

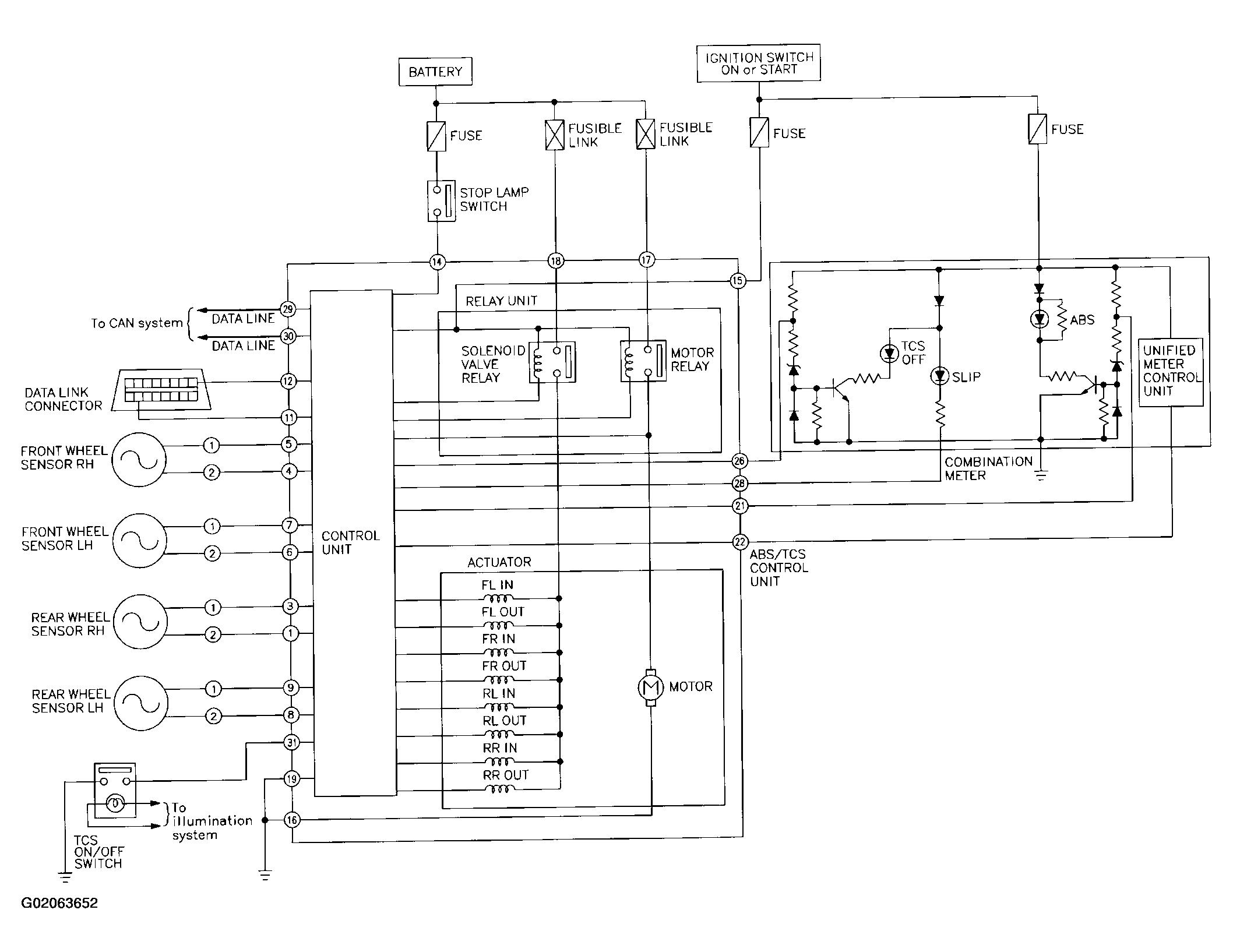

Fig 1: TCS Schematic

G02063652

Courtesy of NISSAN MOTOR CO., U.S.A.
