A/T Shift Lock System
>>
Component Inspection
>>
Key Lock Solenoid
>>
Key Lock
Key Lock
Check operation by applying battery voltage to key switch and key lock solenoid connector.
CAUTION:
Be careful not to cause burnout of the harness.

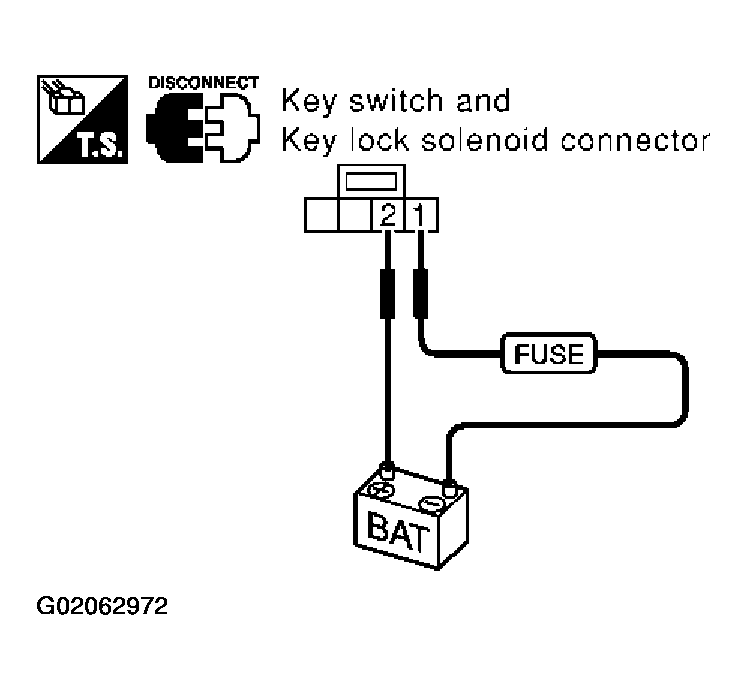

Fig 1: Checking Key Lock Solenoid Connector (Key Lock)
Courtesy of NISSAN MOTOR CO., U.S.A.

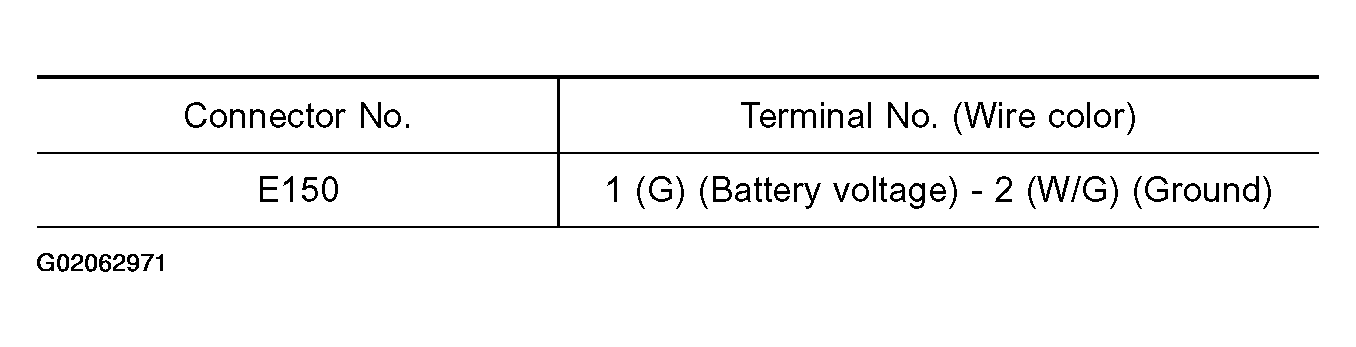

Fig 2: Connector Terminal Table (Key Lock)
Courtesy of NISSAN MOTOR CO., U.S.A.
