Key Switch
Check continuity between terminals of the key switch and key lock solenoid connector.

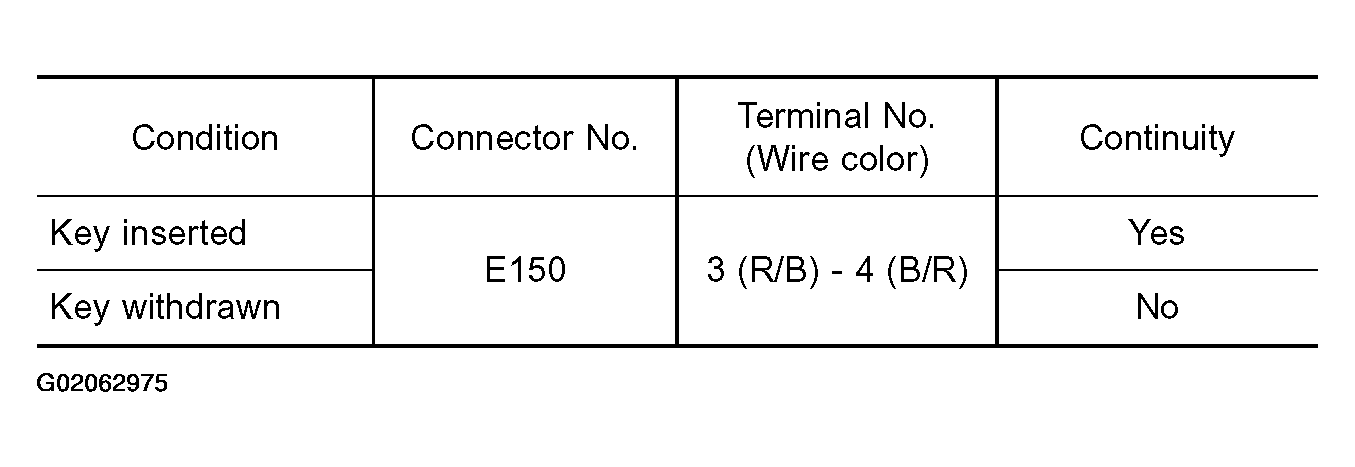

Fig 1: Connector Terminal Table (Key Switch)
Courtesy of NISSAN MOTOR CO., U.S.A.

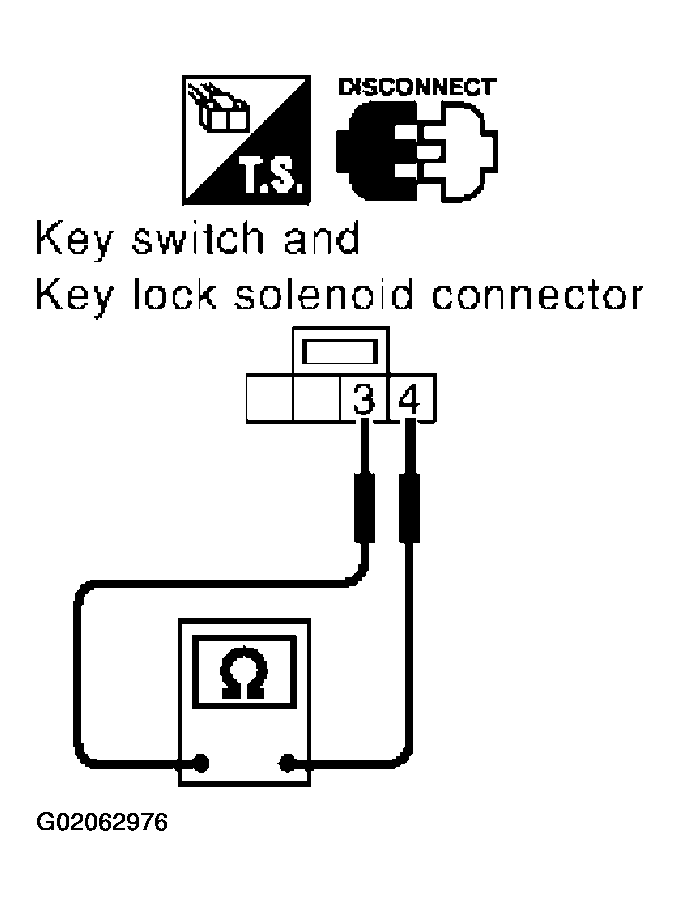

Fig 2: Checking Key Lock Solenoid Connector (Key Switch)
Courtesy of NISSAN MOTOR CO., U.S.A.
