Nissan-Datsun
>>
2003
>>
Maxima GLE
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle
>>
Shift Control System
>>
Control Cable
Control Cable

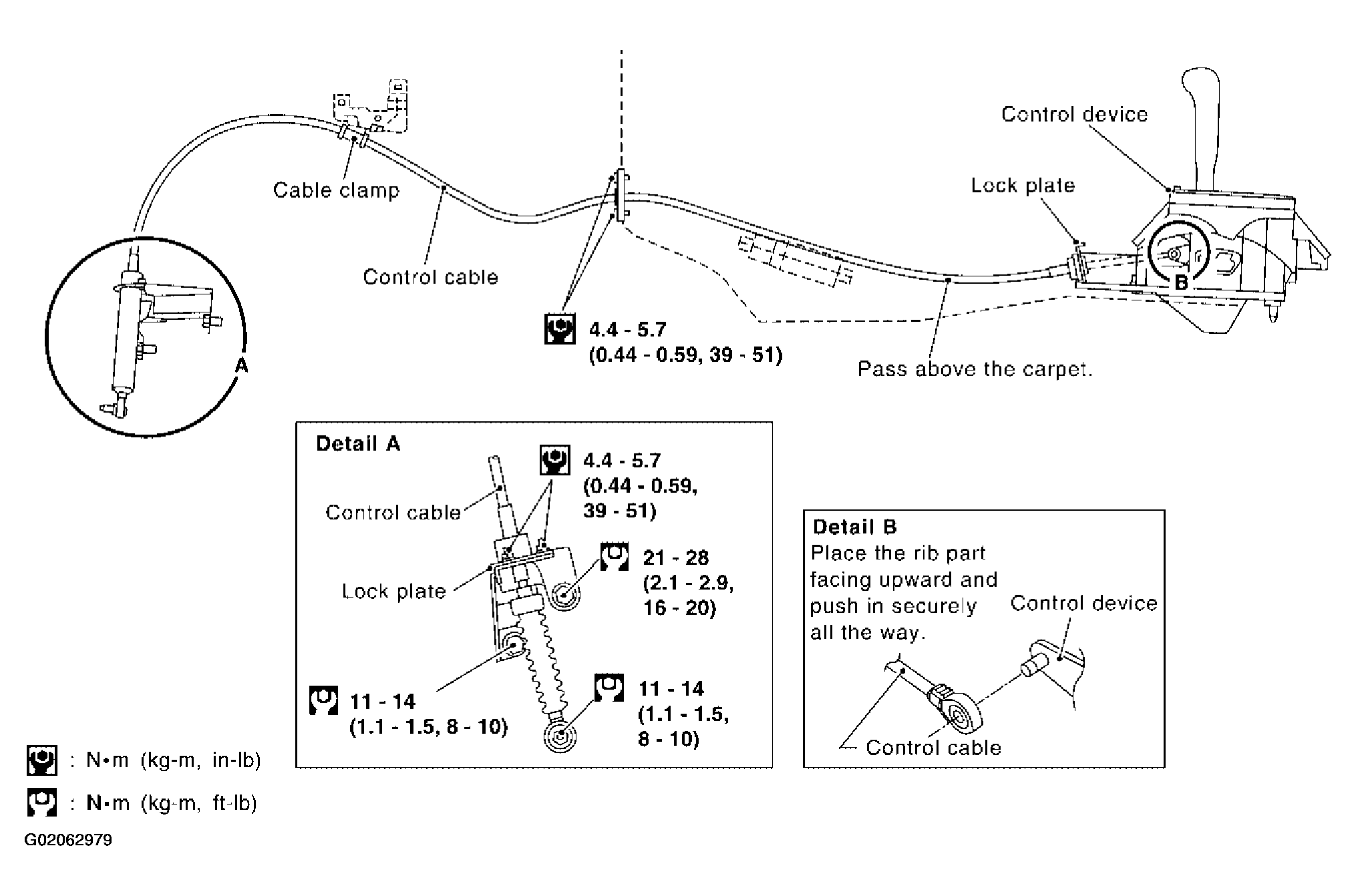

Fig 1: Identifying Control Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
