Remote Keyless Entry System
>>
CONSULT-II Application items
>>
"Multi Remote ENT"
"Multi Remote ENT"
Data Monitor

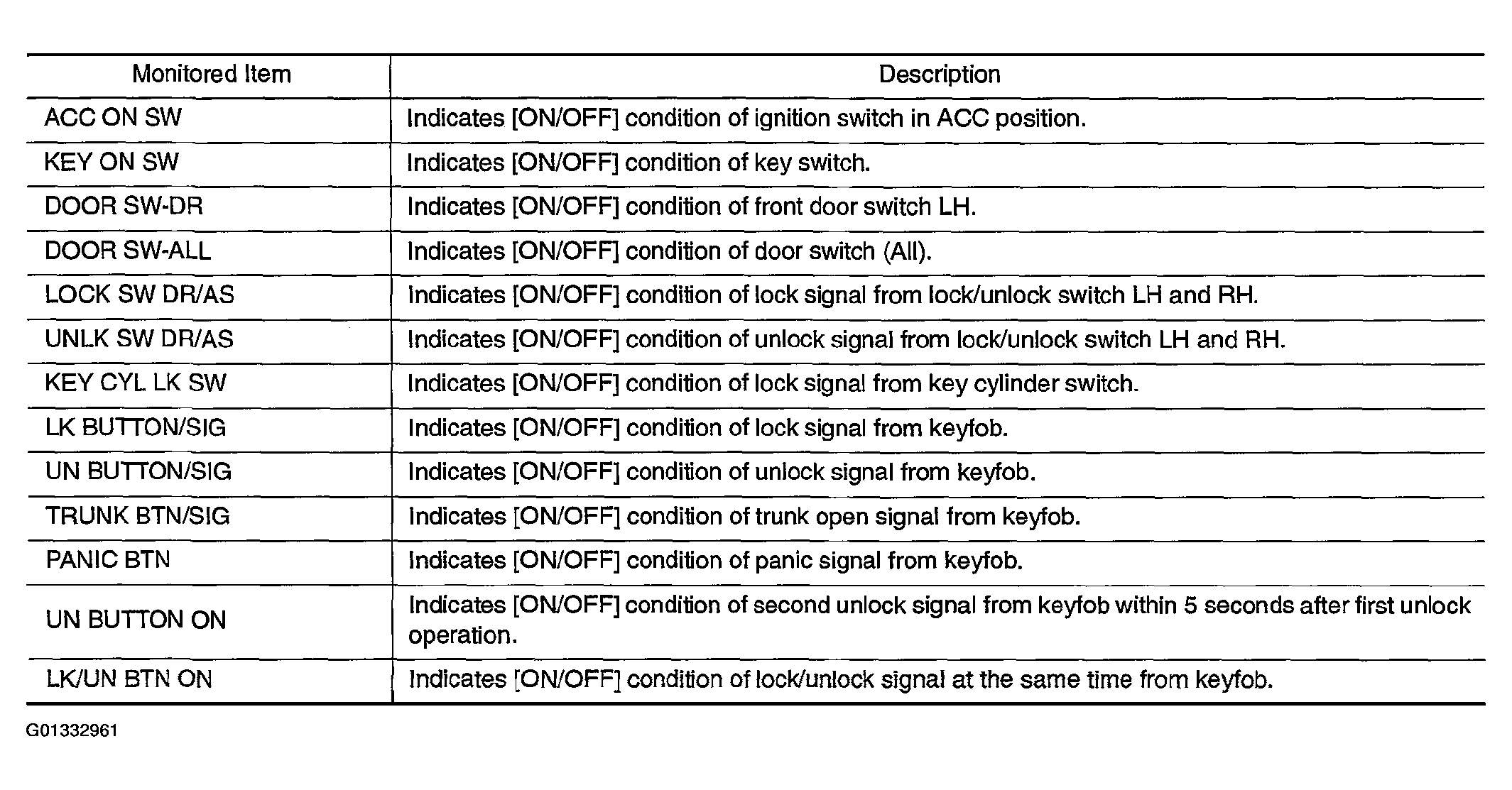

Fig 1: CONSULT-II Application Item Description Chart (Data Monitor Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.
Active Test

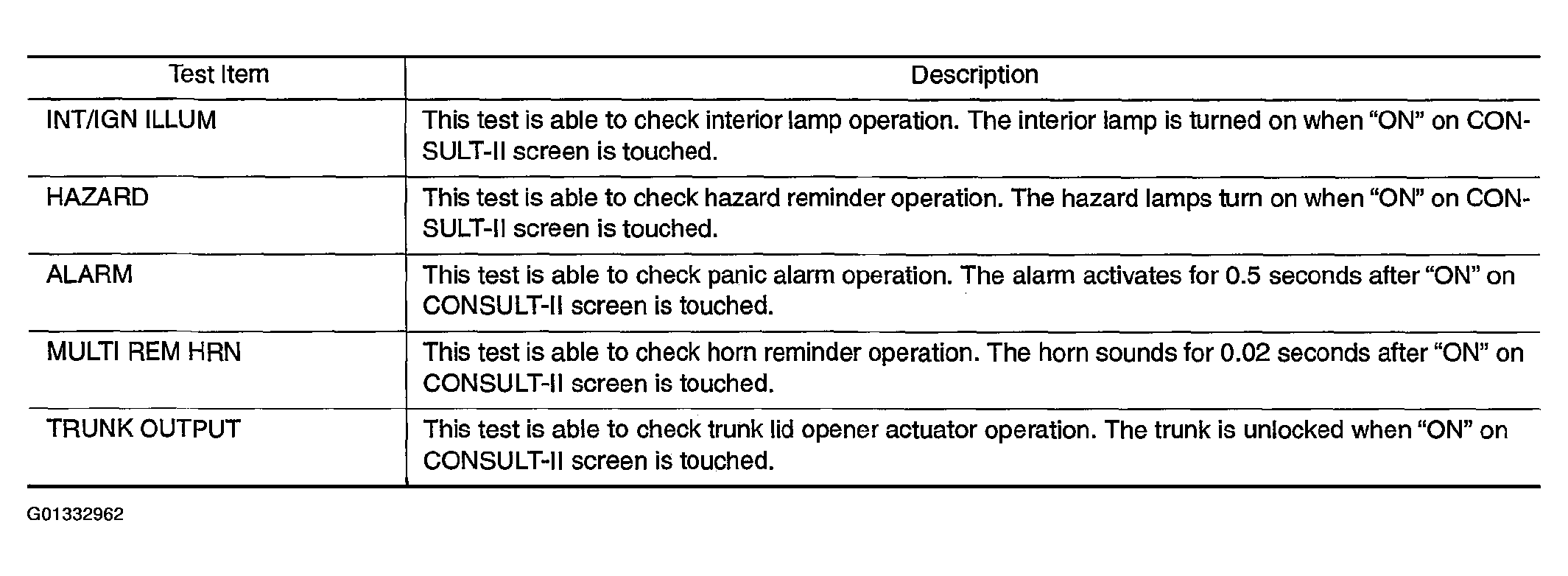

Fig 2: CONSULT-II Application Item Description Chart (Active Test Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.
Work Support

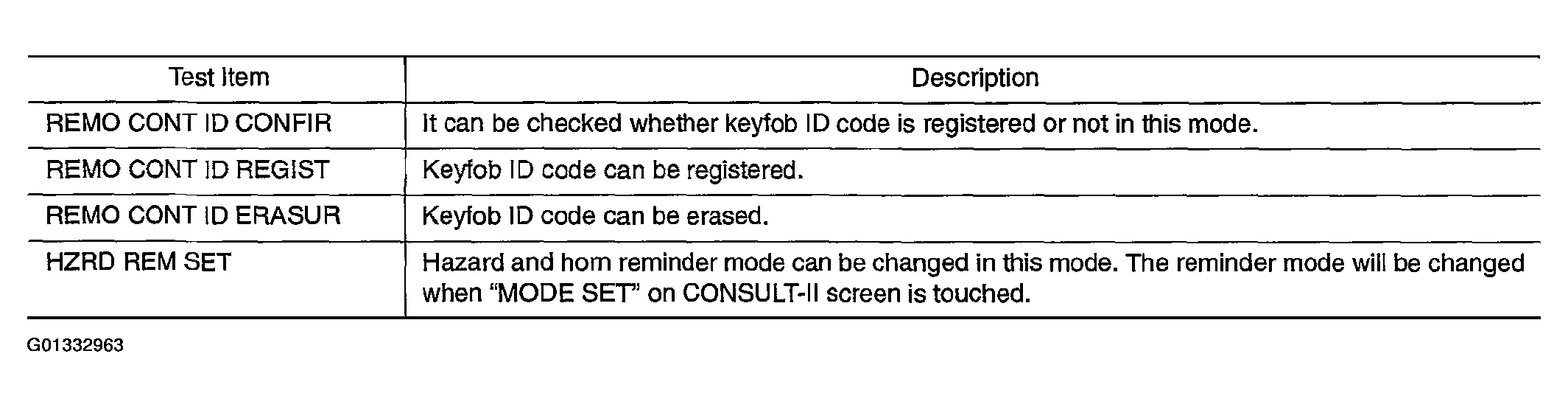

Fig 3: CONSULT-II Application Item Description Chart (Work Support Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.
