Quarter Window

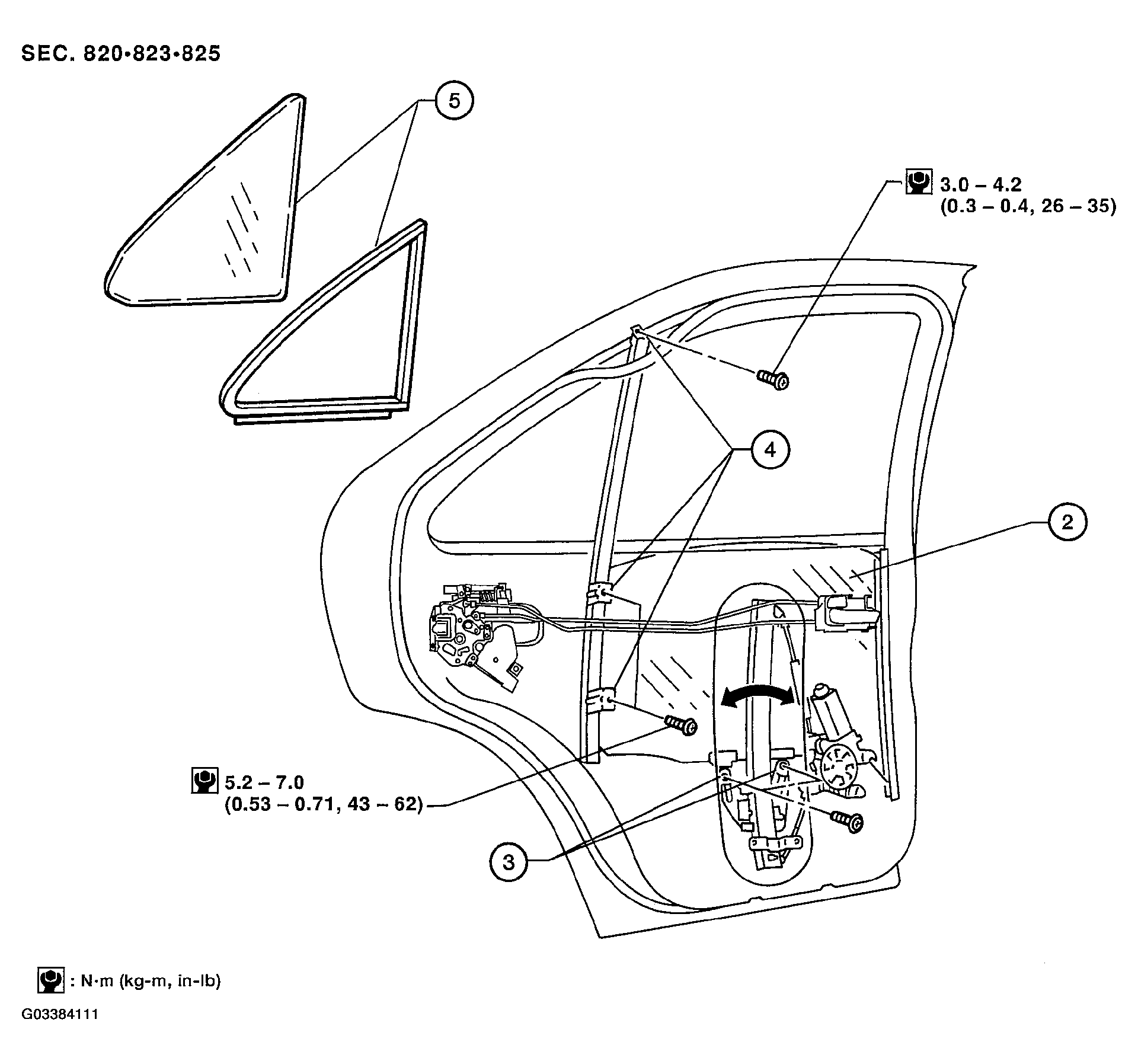

Fig 1: Identifying Quarter Window Components
G03384111Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the rear door finisher. Refer to DOOR FINISHER
  2. Lower the rear window.
  3. Remove two screws securing rear glass, then remove rear glass.
  4. Remove two bolts and one top screw securing rear door center sash, then remove rear door center sash.
  5. Remove quarter glass and rubber seal.
