Abs & Abs/TCS: Description: Schematic

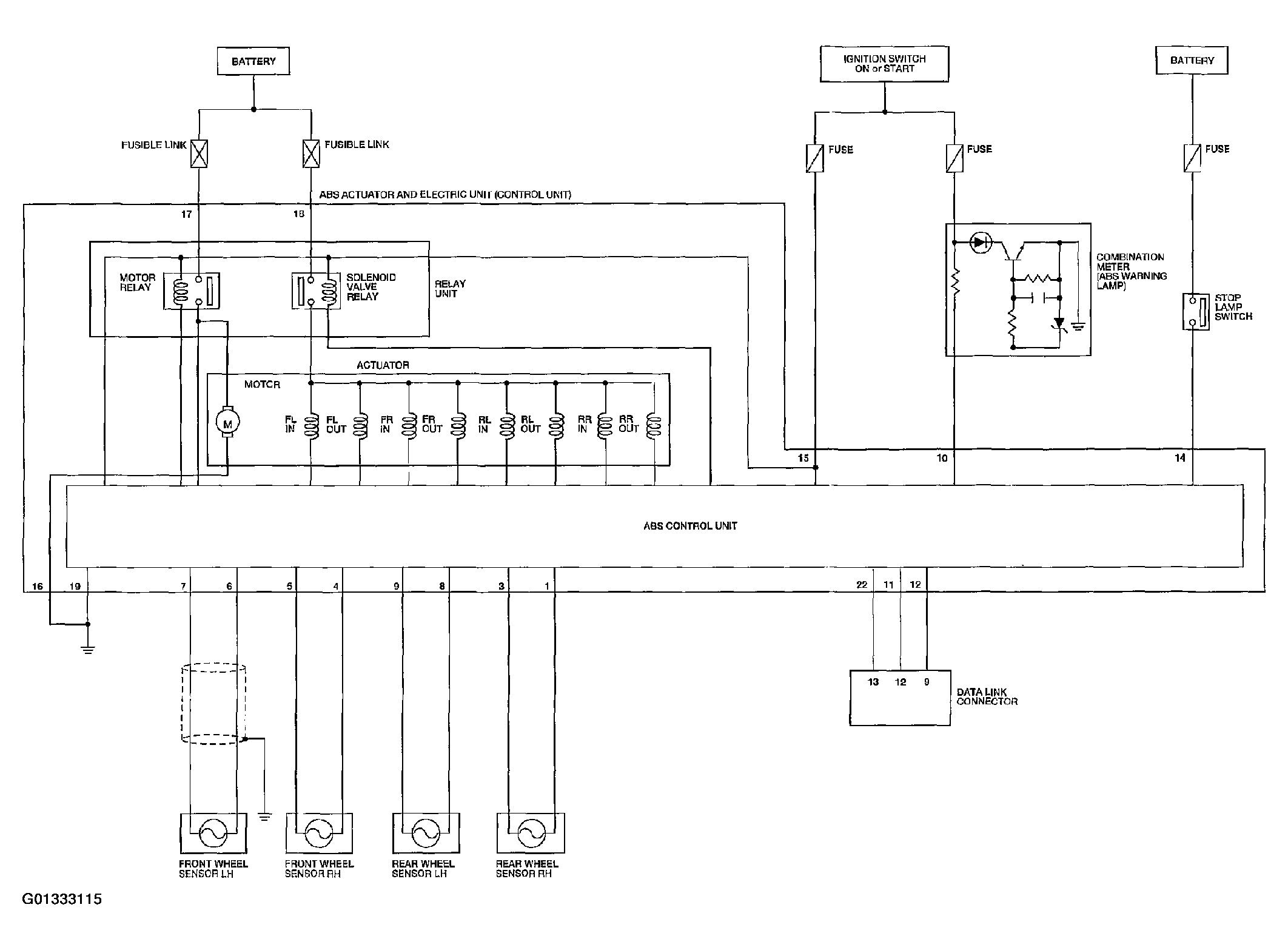

Fig 1: ABS Schematic Diagram

G01333115

Courtesy of NISSAN MOTOR CO., U.S.A.
