Auto Light System: Schematic

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

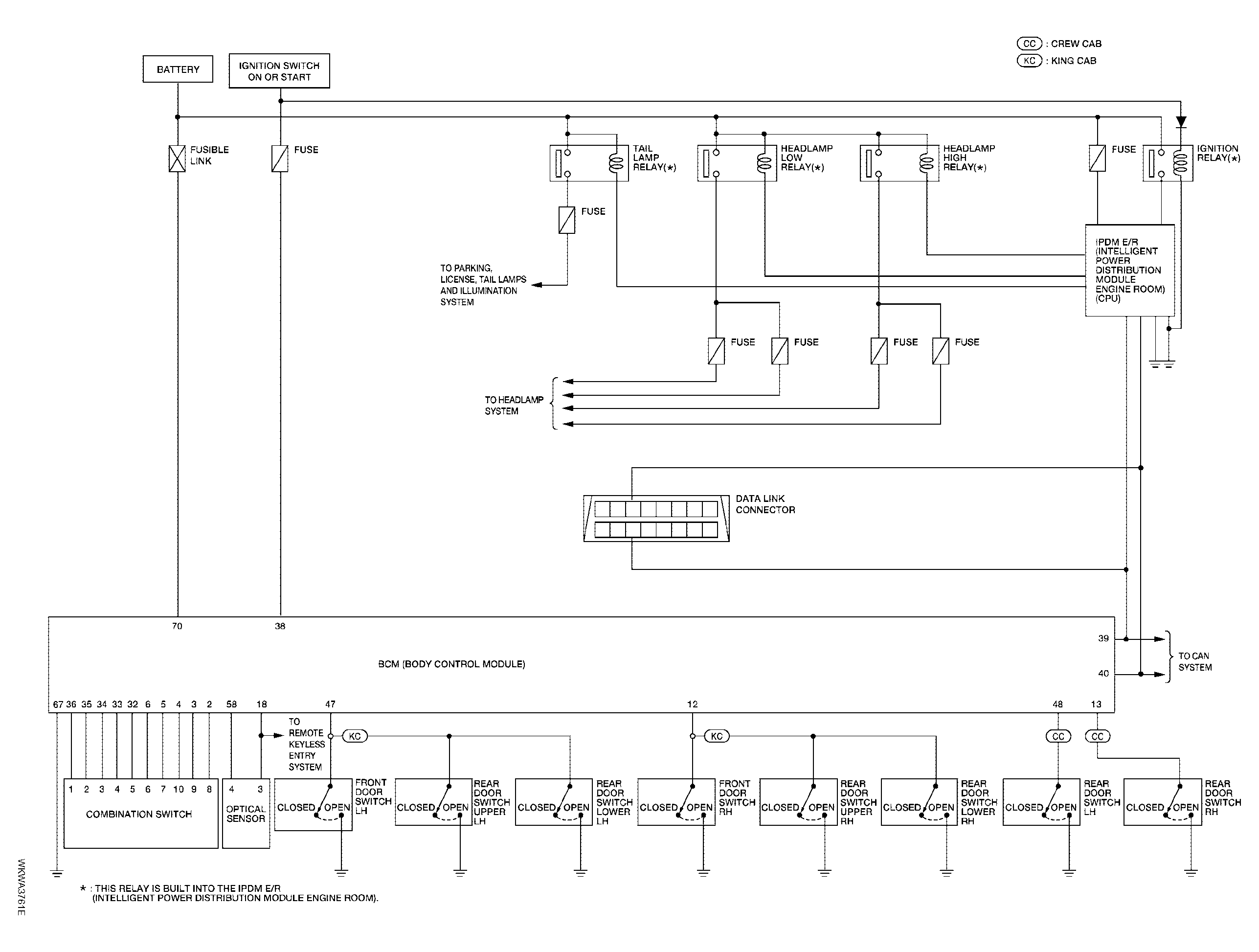

Fig 1: Auto Light System - Schematic Diagram
G04188578Courtesy of NISSAN MOTOR CO., U.S.A.
