Disassembly and Assembly: Components

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

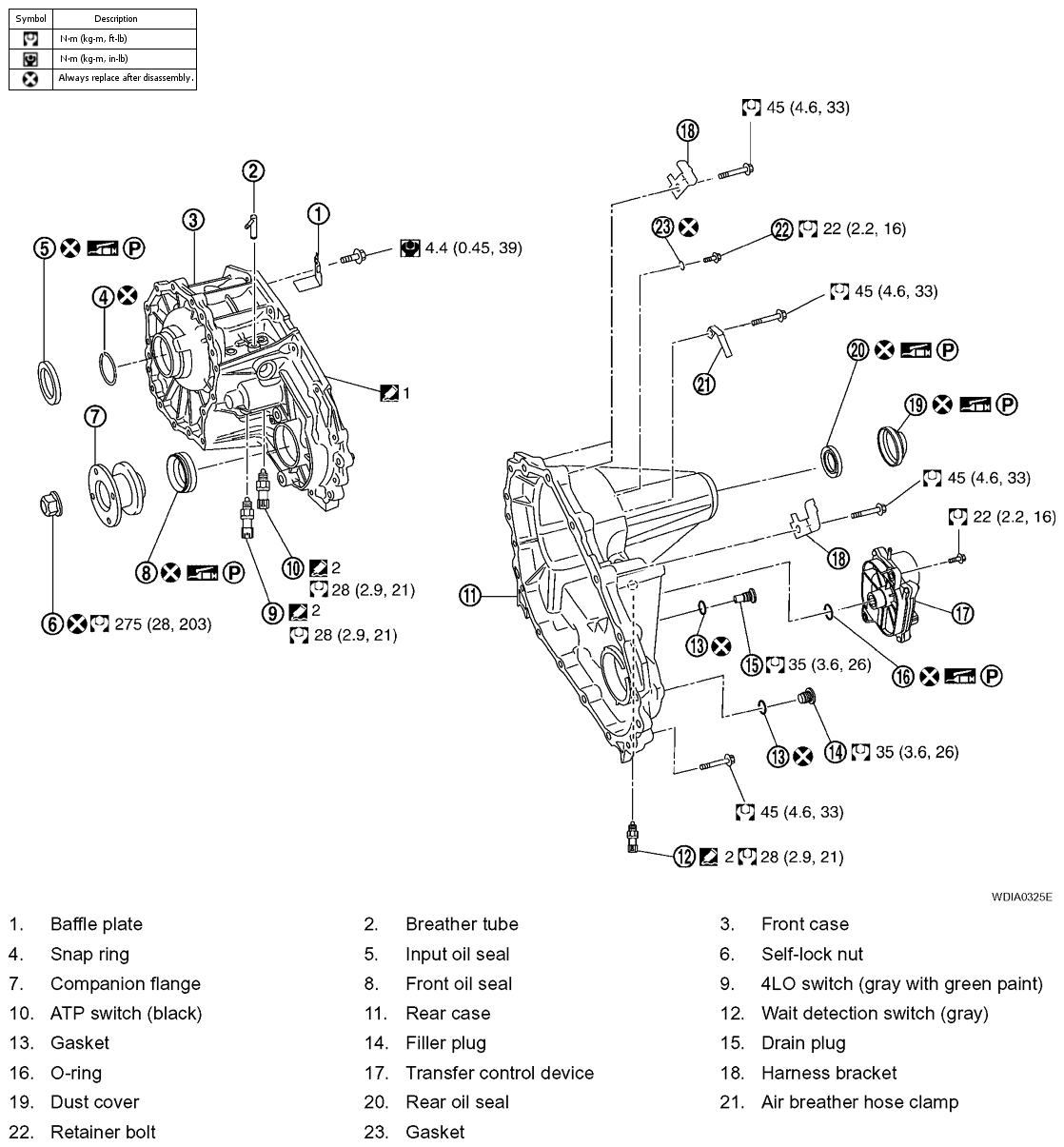

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 2)
G04174904Courtesy of NISSAN MOTOR CO., U.S.A.

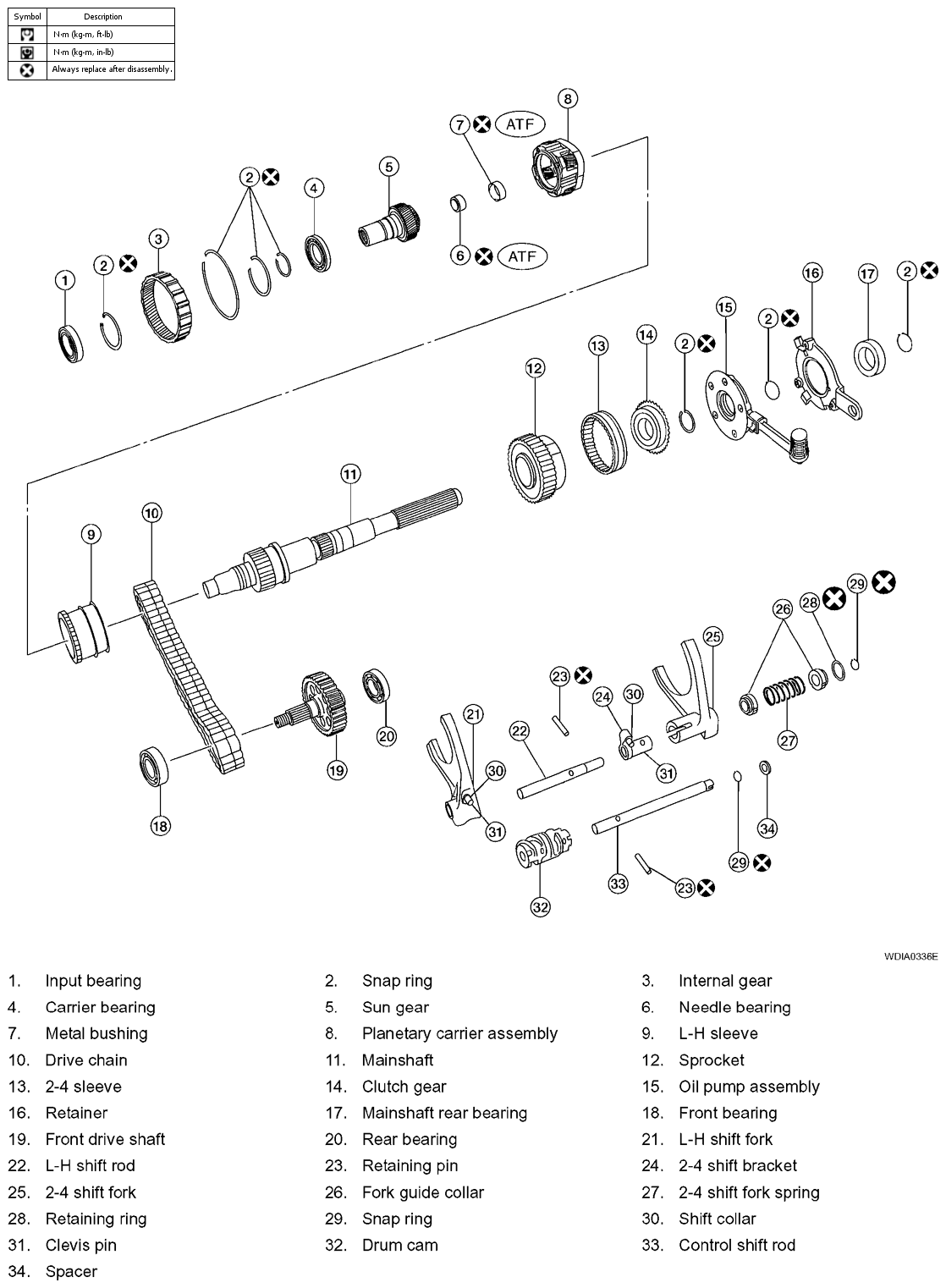

Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 2)
G04174905Courtesy of NISSAN MOTOR CO., U.S.A.
