Removal And Installation: Installation

Drive plate runout
CAUTION: Do not allow any magnetic materials to contact the ring gear teeth.

Maximum allowable runout:

SERVICE DATA AND SPECIFICATIONS (SDS) .
If this runout is out of allowance, replace drive plate and ring gear.

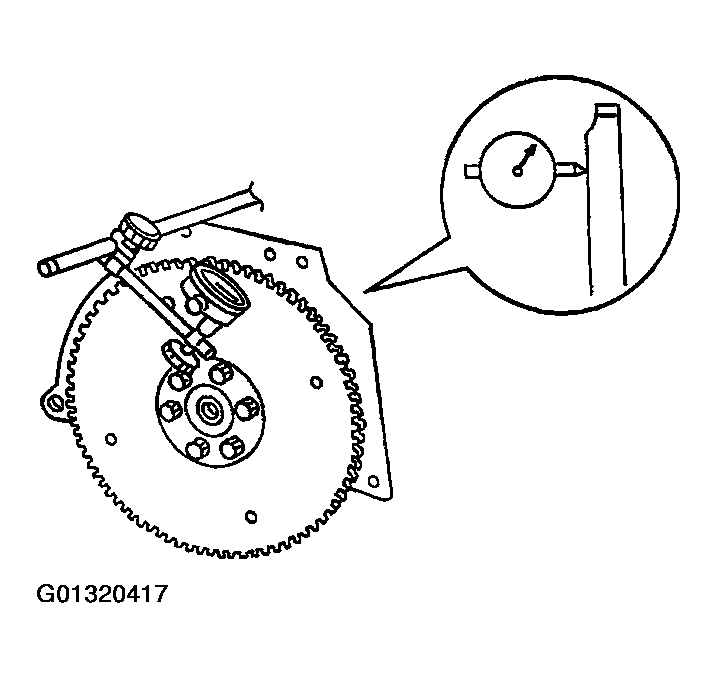

Fig 1: Measuring Drive Plate Run Out
Courtesy of NISSAN MOTOR CO., U.S.A.
When connecting torque converter to transaxle, measure distance "A" to be certain that they are correctly assembled.
Distance "A": 14 mm (0.55 in) or more

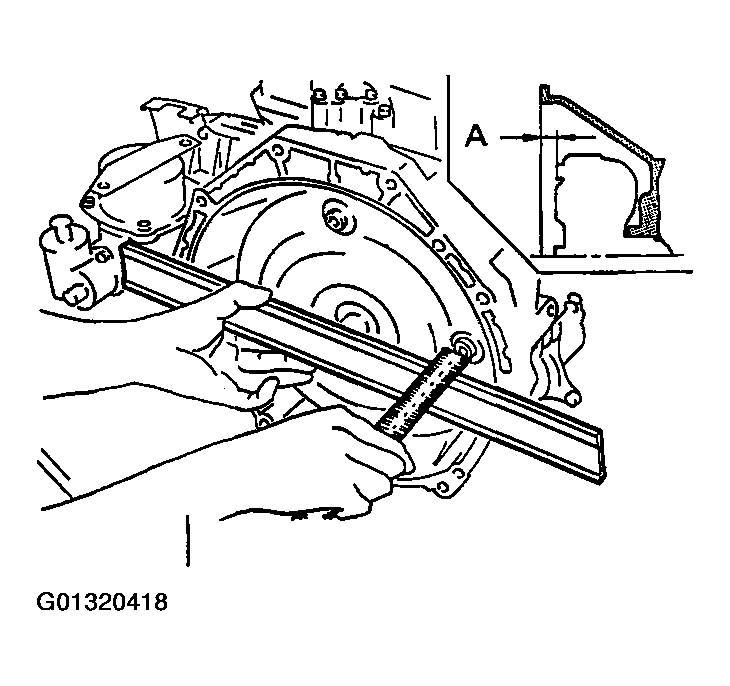

Fig 2: Measuring Distance A For Proper Connection Of Torque Converter To Transaxle
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bolts fixing converter to drive plate.
With converter installed, rotate crankshaft several turns to check that transaxle rotates freely without binding.

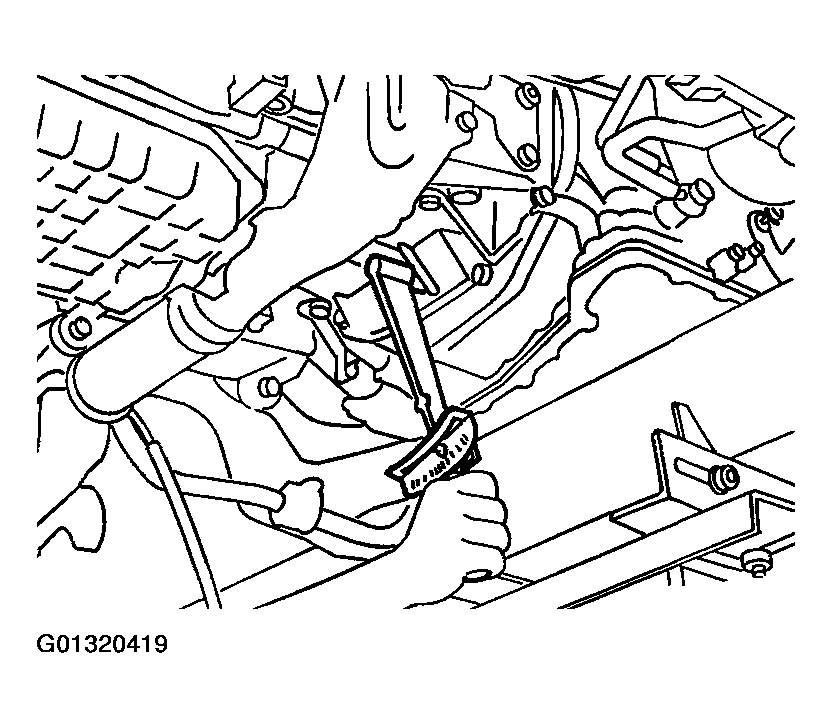

Fig 3: Installing Fixing Bolts Of Converter To Drive Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten bolts securing transaxle.
Tighten LH mounting bracket bolts to the specified torque. Refer to ENGINE ASSEMBLY .
Tighten center member bolts to the specified torque. Refer to .
Tighten rear plate cover bolts to the specified torque. Refer to OIL PAN AND OIL STRAINER .

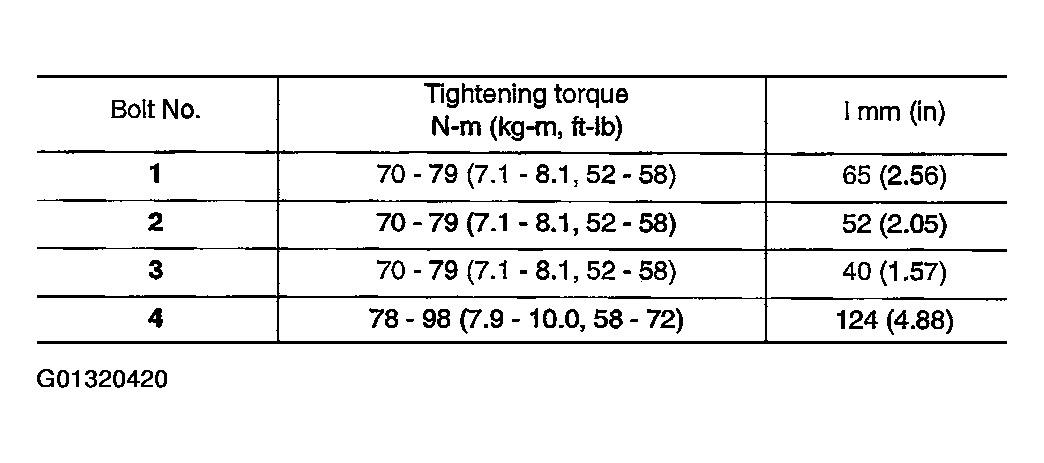

Fig 4: Transaxle Bolts Tightening Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

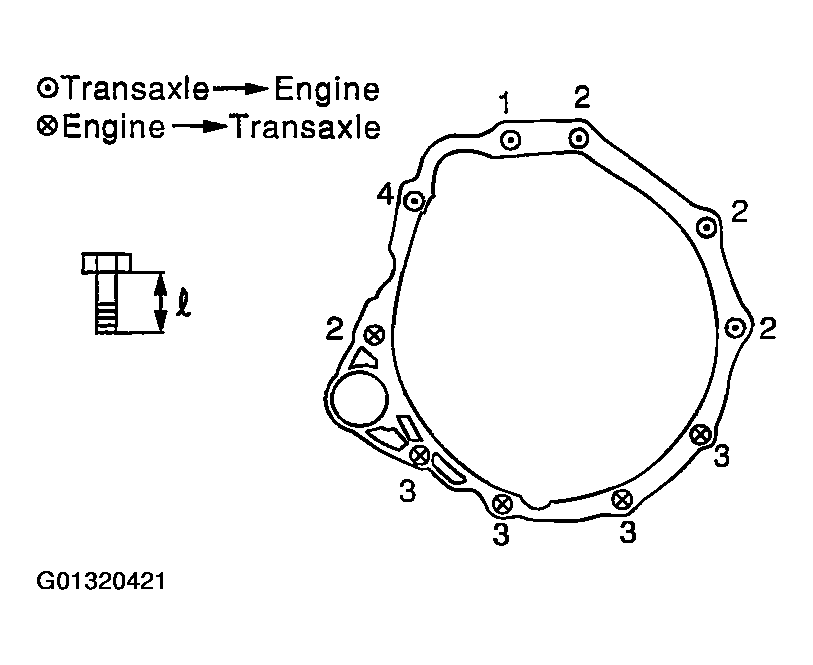

Fig 5: Locating Bolts Fixing Points
Courtesy of NISSAN MOTOR CO., U.S.A.
Reinstall any part removed.
Check fluid level in transaxle.
Move selector lever through all positions to be sure that transaxle operates correctly.
With parking brake applied, rotate engine at idling. Move selector lever through N to D, to 2, to 1 and to R position. A slight shock should be felt by hand gripping selector each time transaxle is shifted.
Perform road test. Refer to "ROAD TEST ".

Fig 6: Checking Automatic Transaxle Fluid Level
Courtesy of NISSAN MOTOR CO., U.S.A.
