Automatic Transaxle (Re4F04B)
>>
Repair For Component Parts
>>
Oil Pump
>>
Components
Oil Pump: Components

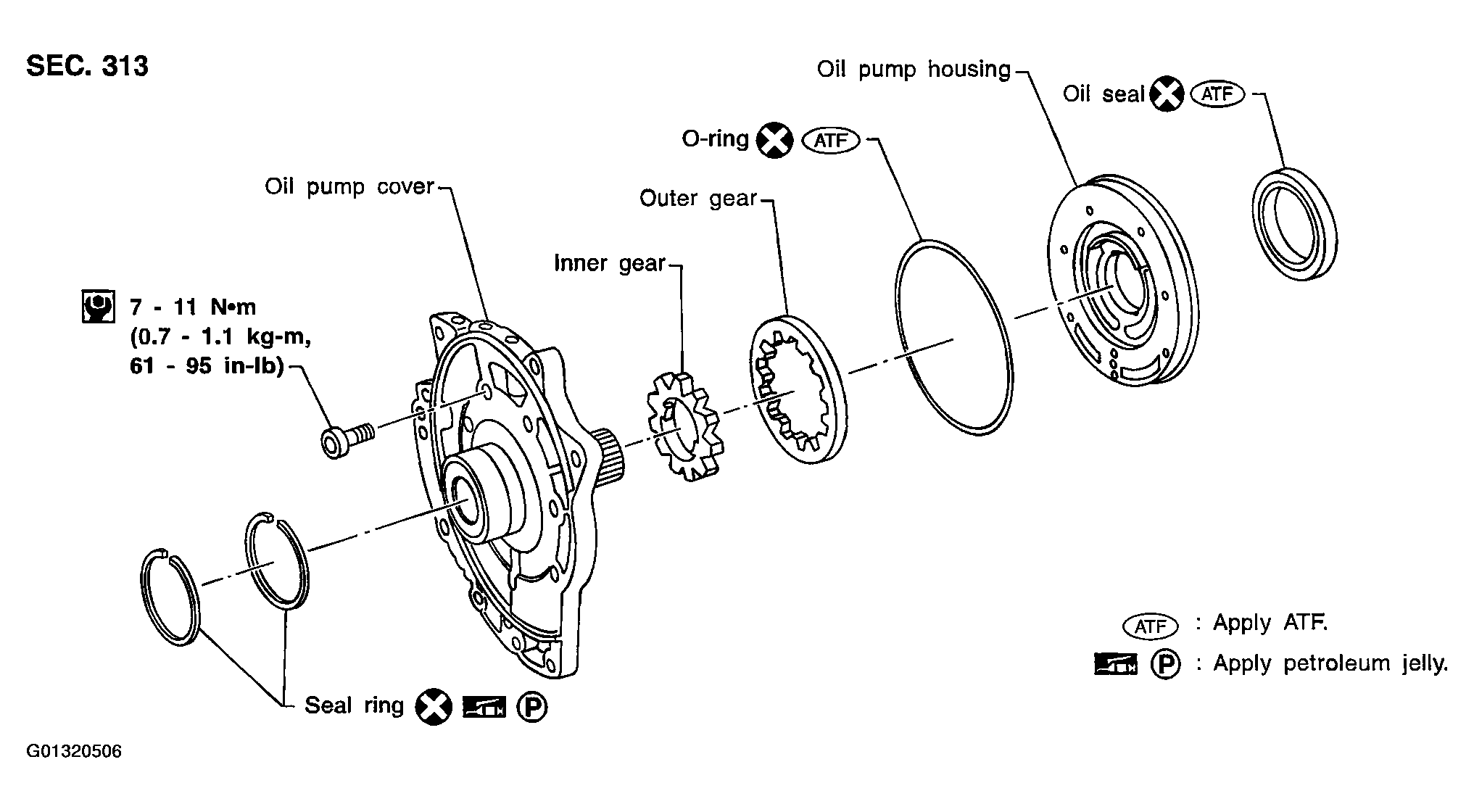

Fig 1: Exploded View Of Oil Pump Components And Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
