Home >> Nissan-Datsun >> 2004 >> Altima Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control System - 2.5L >> VIAS >> Component Inspection >> Vacuum Tank

Vacuum Tank

  1. Disconnect vacuum hose connected to vacuum tank.
  2. Connect a vacuum pump to the port A  of vacuum pump.
  3. Apply vacuum and make sure that vacuum exists at the port B.

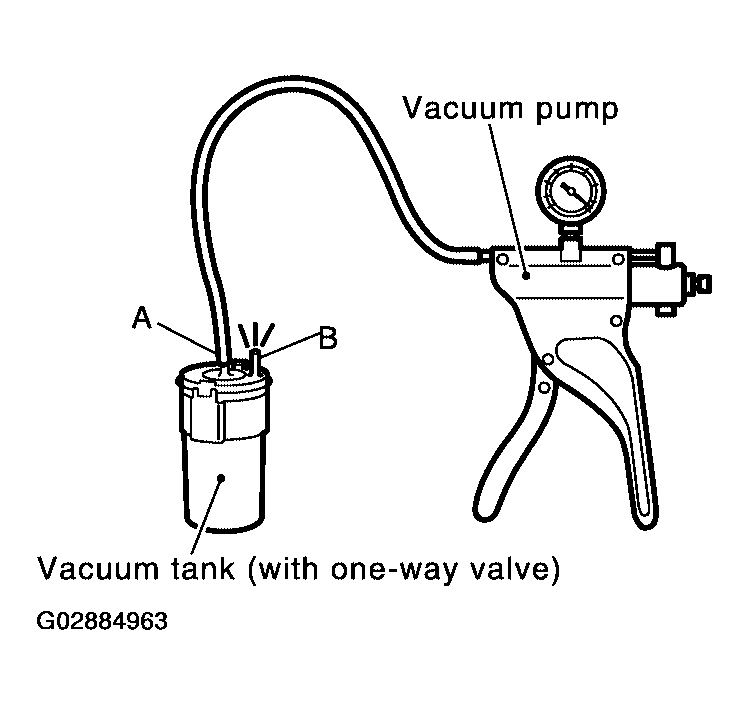

    Fig 1: Connecting Vacuum Pump To Port A Of Vacuum Pump
    G02884963Courtesy of NISSAN MOTOR CO., U.S.A.
