Key Lock

Check operation by applying battery voltage to key switch and key lock solenoid connector.

CAUTION: Be careful not to cause burnout of the harness.

M26 CONNECTOR TERMINAL VOLTAGE SPECIFICATIONS

Connector No.	Terminal No.
M26	1 (Battery voltage) - 2 (Ground)

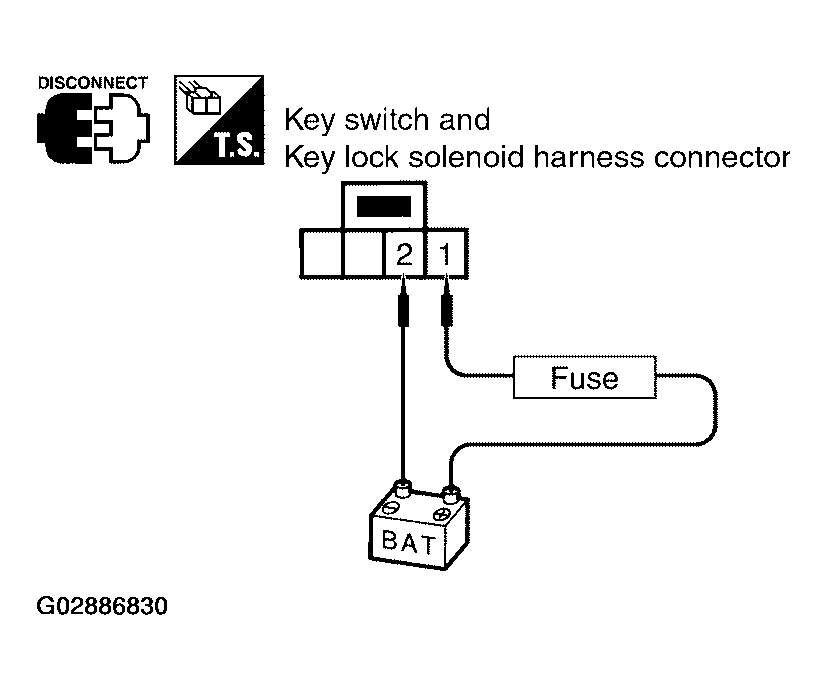

Fig 1: Applying Battery Voltage To Key Switch & Key Lock Solenoid Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
