Nissan-Datsun
>>
2004
>>
Altima Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle
>>
Shift Control System
>>
Control Cable
Control Cable

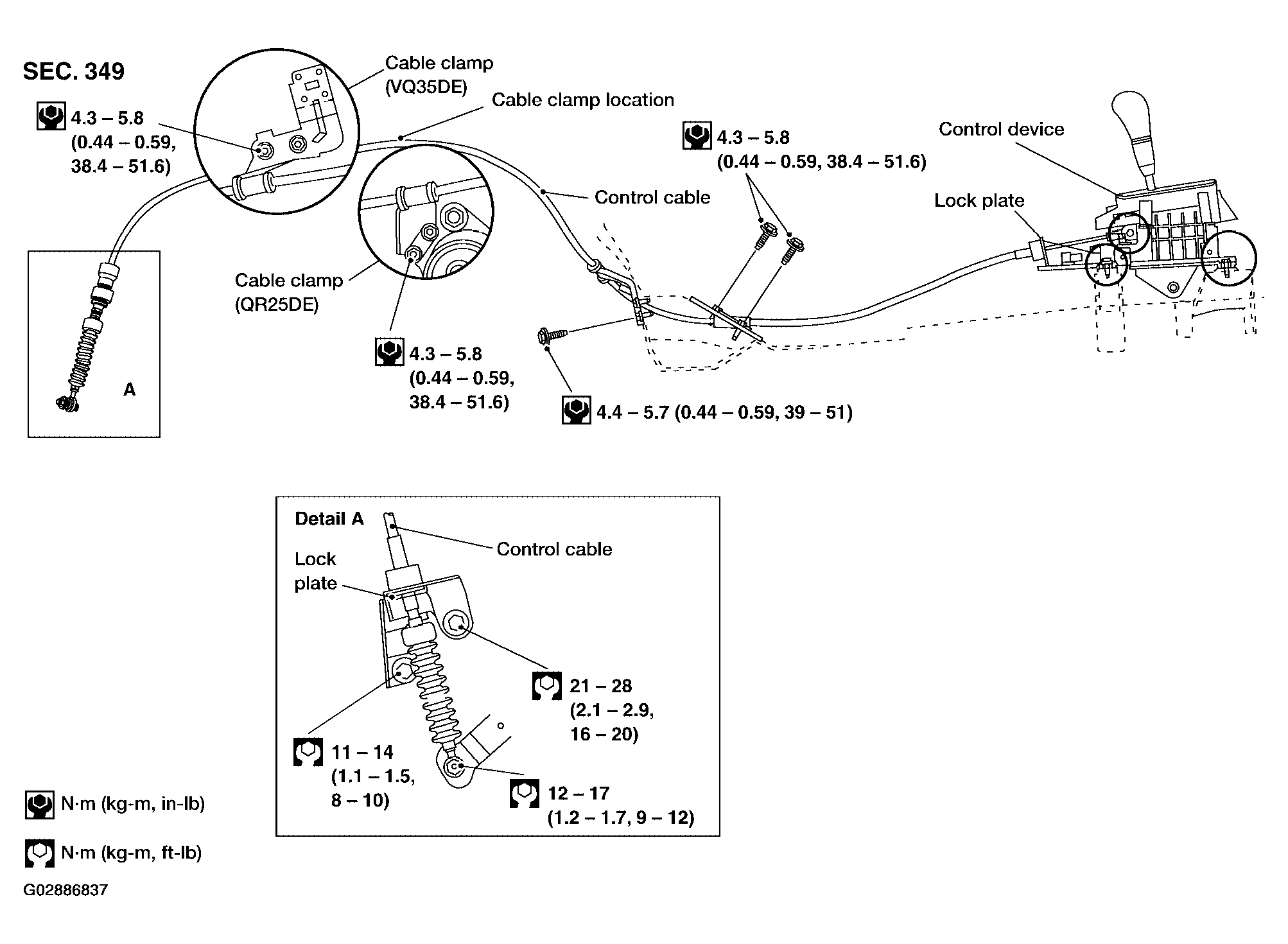

Fig 1: Exploded View Of Control Cable Components & Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
