Ignition Timing

Any of following two methods may be used.

• Method A
  • Attach timing light to No. 1 ignition coil harness.
    Fig 1: Attaching Timing Light To No. 1 Ignition Coil Harness

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Check ignition timing.

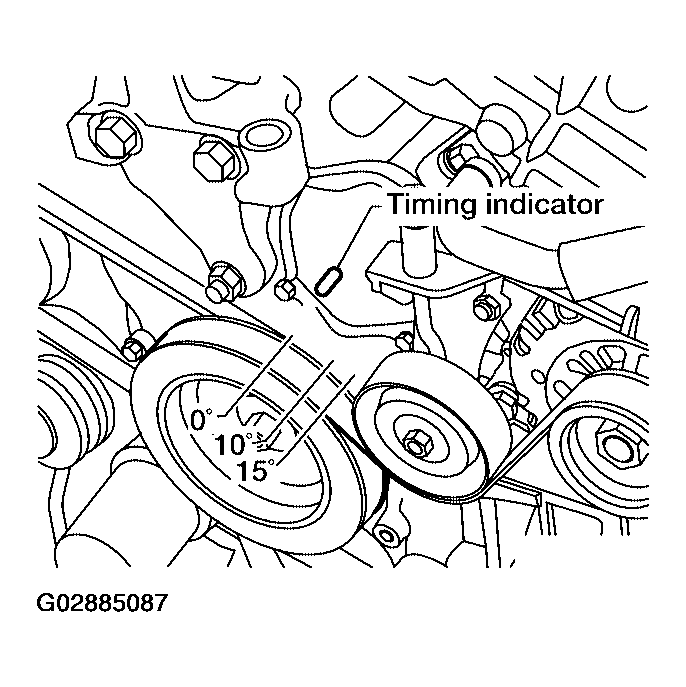

    Fig 2: Checking Ignition Timing

    Courtesy of NISSAN MOTOR CO., U.S.A.
• Method B
  • Remove No. 1 ignition coil.

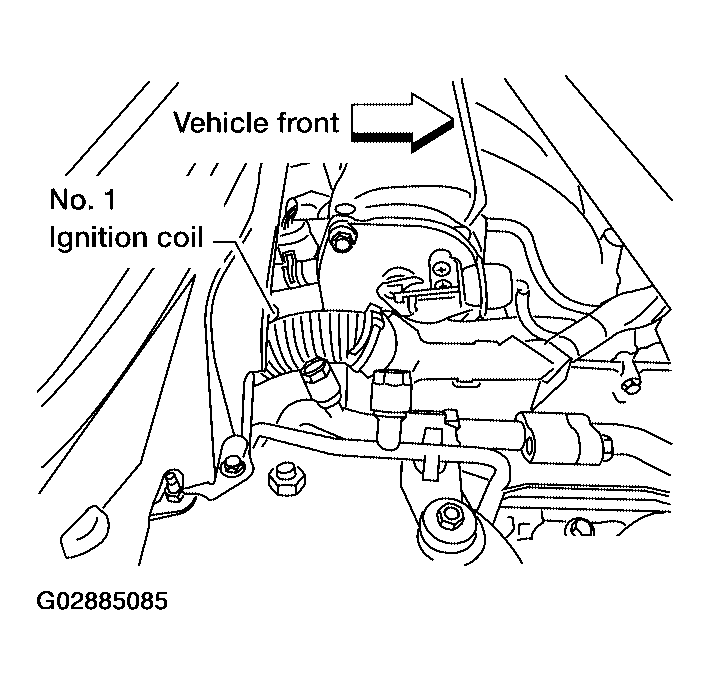

    Fig 3: Removing No. 1 Ignition Coil

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

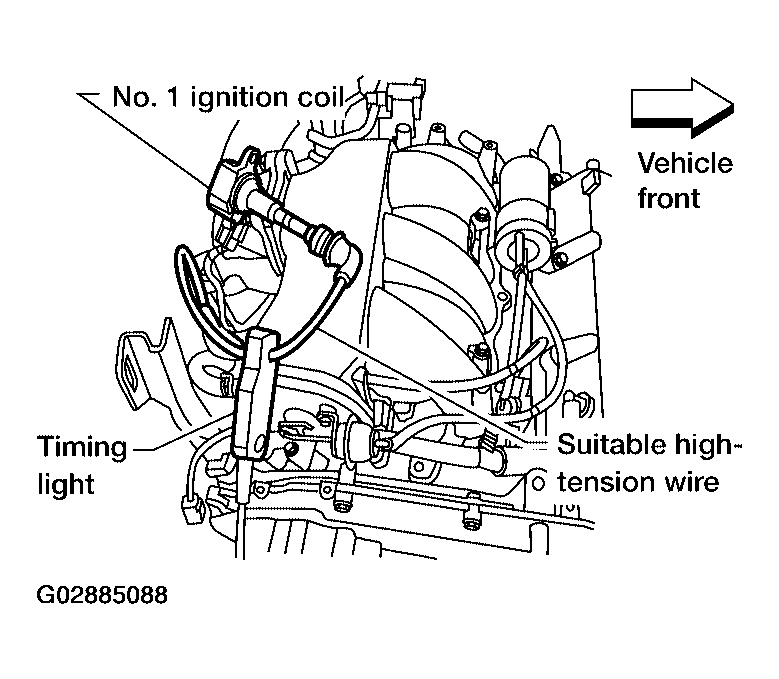

    Fig 4: Connecting No. 1 Ignition Coil And No. 1 Spark Plug

    Courtesy of NISSAN MOTOR CO., U.S.A.

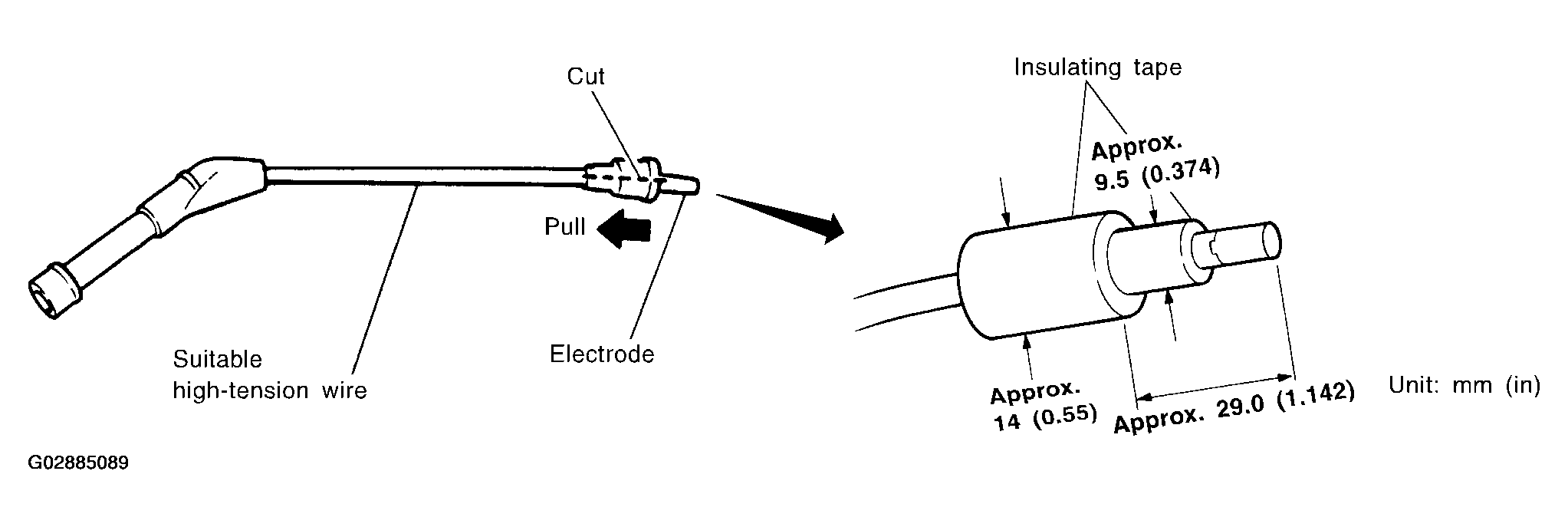

    Fig 5: Identifying High-Tension Wire

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Check ignition timing.
    Fig 6: Checking Ignition Timing

    Courtesy of NISSAN MOTOR CO., U.S.A.
