Home >> Nissan-Datsun >> 2004 >> Altima SE, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control System - 3.5L >> Ignition Signal >> Component Inspection >> Condenser

Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals + and -.
    CONDENSER SPECIFICATION

    Resistance Above 1 MΩ at 25°C (77°F)

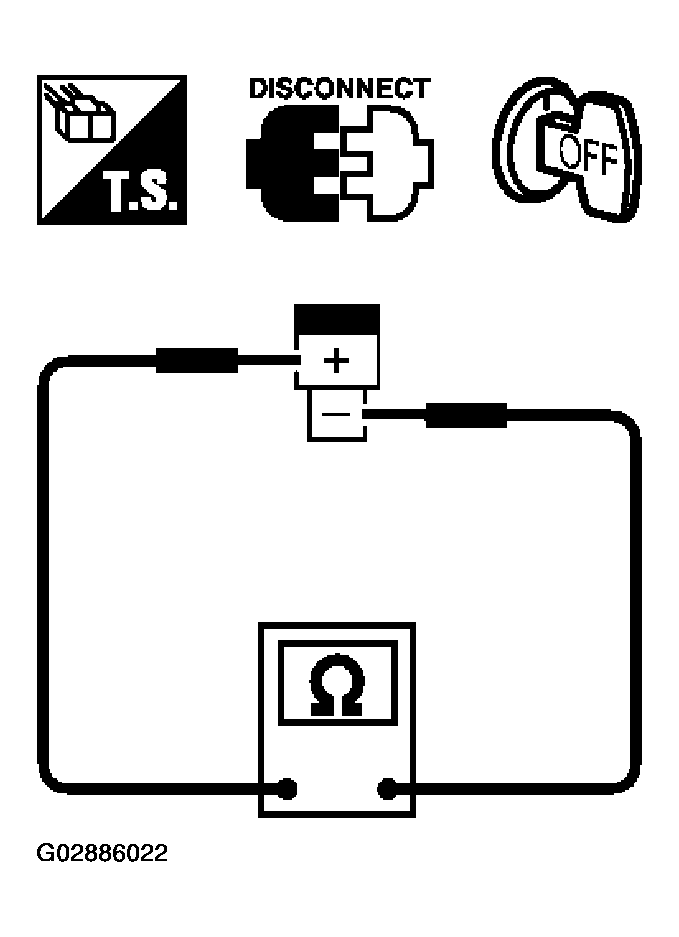

    Fig 1: Checking Resistance Between Condenser Terminals + And -
    G02886022Courtesy of NISSAN MOTOR CO., U.S.A.
