Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Circuit Breaker |

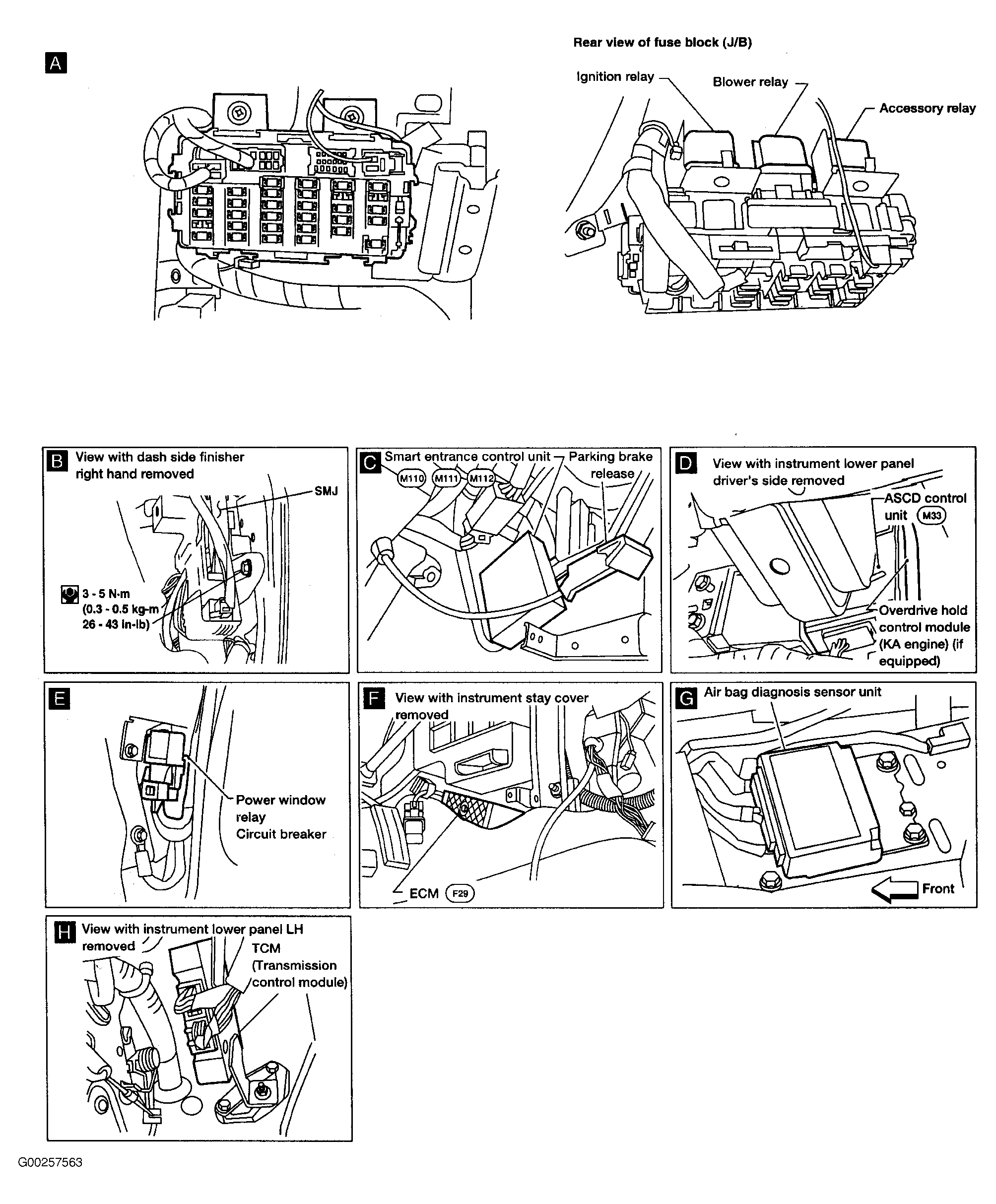

Behind lower left end of dash. See Figure
. |
| Fuse Block |
Left side of dash, behind cover. See Figure
. |
| Fuse & Fusible Link Box |

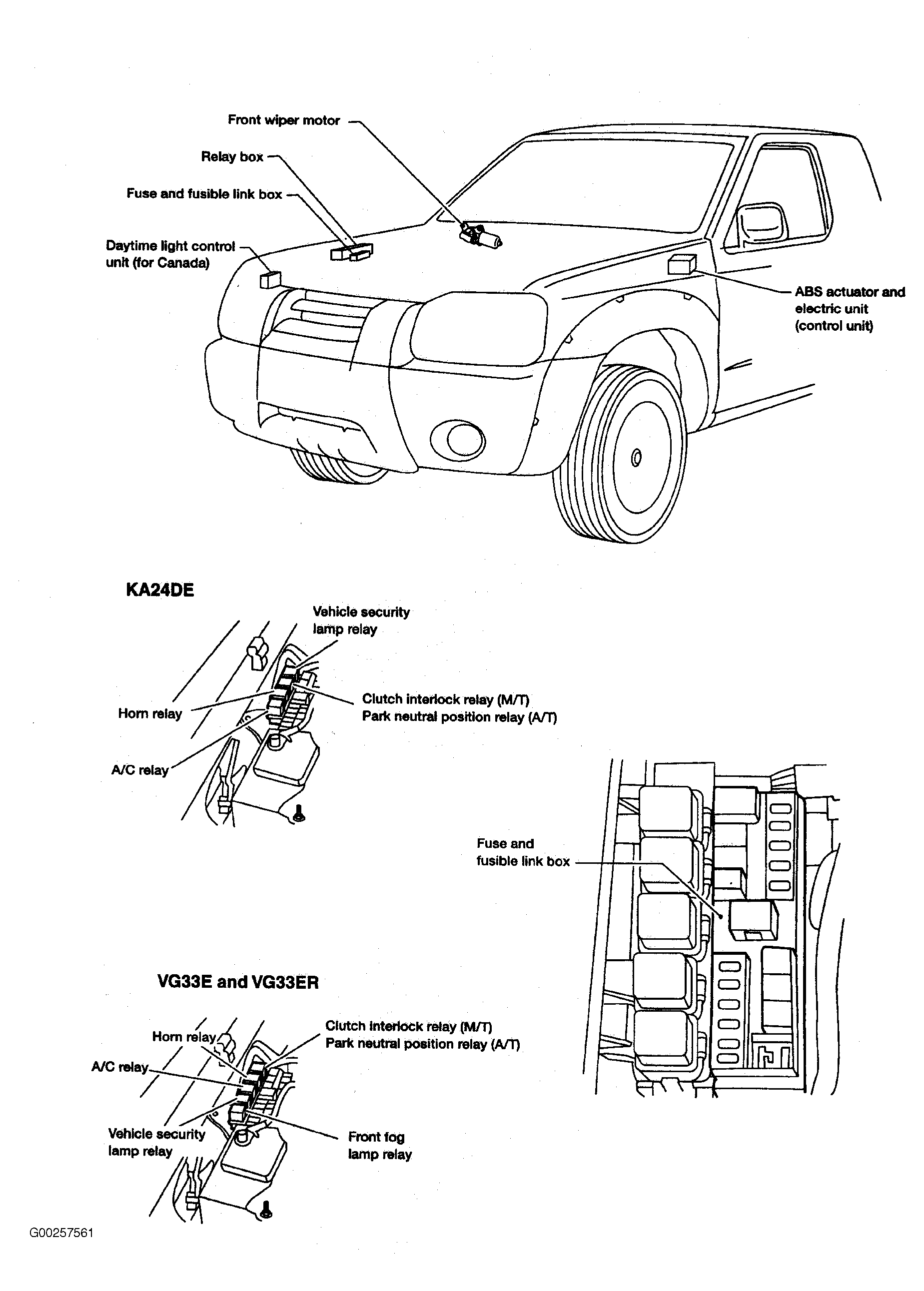

Right side of engine compartment. See Figure
. |
| Relay Box |
Right side of engine compartment. See Figure
. |
