Home >> Nissan-Datsun >> 2004 >> Frontier Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control System - KA24DE >> CONSULT-II Function >> Active Test Mode >> Test Item

Test Item

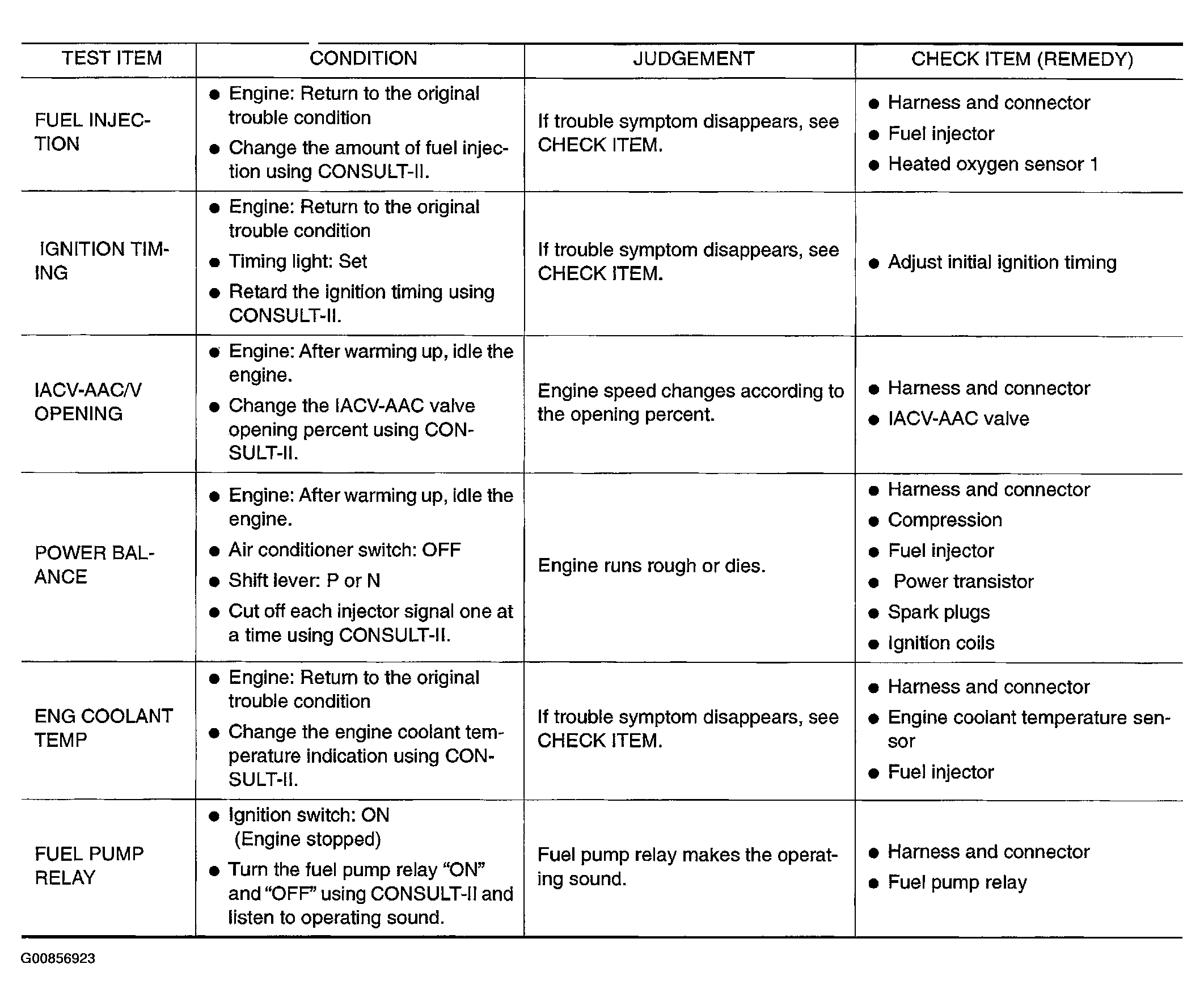

Fig 1: Active Test Mode Chart (1 Of 2)

G00856923

Courtesy of NISSAN MOTOR CO., U.S.A.

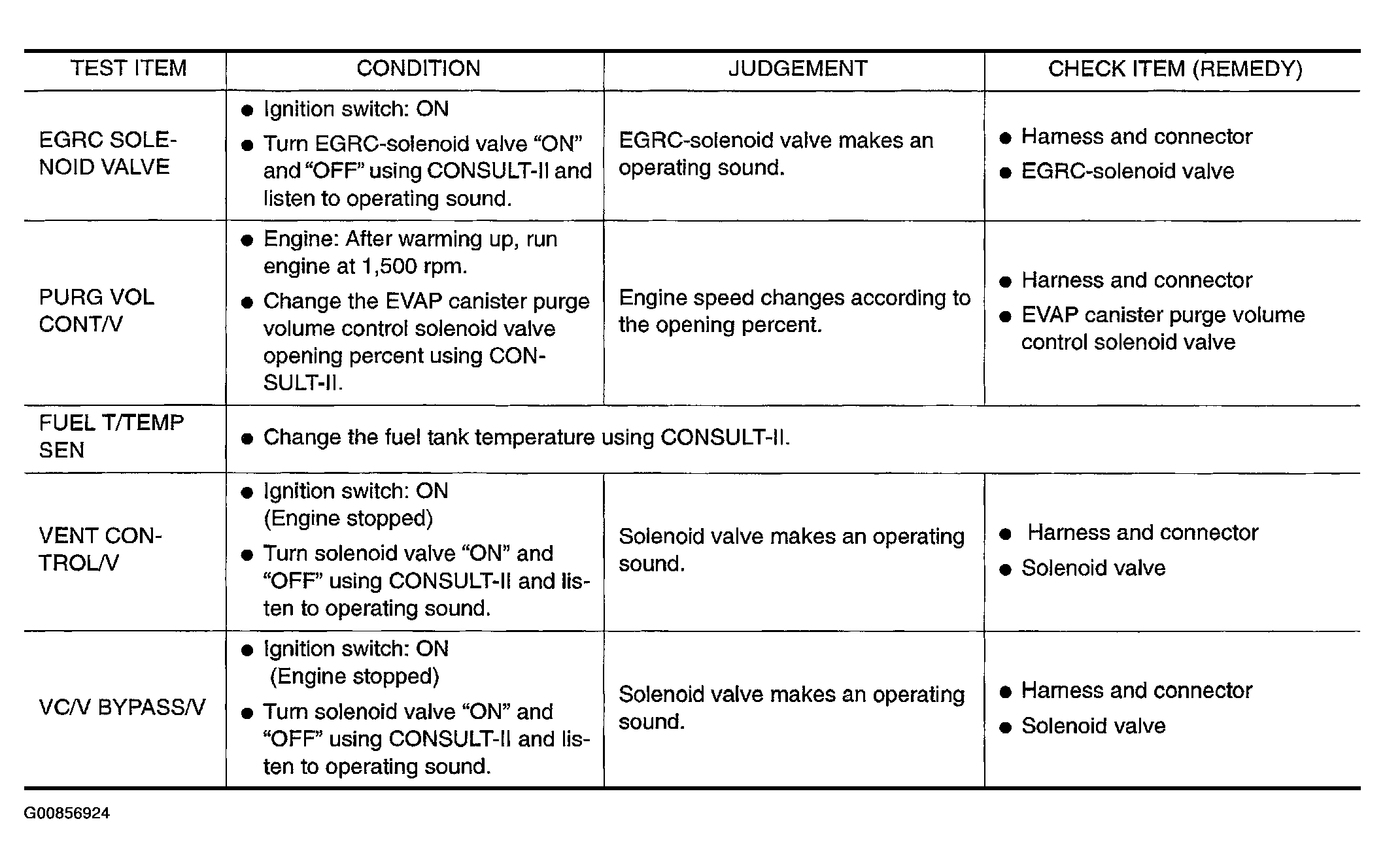

Fig 2: Active Test Mode Chart (2 Of 2)

G00856924

Courtesy of NISSAN MOTOR CO., U.S.A.
