Monitored Item

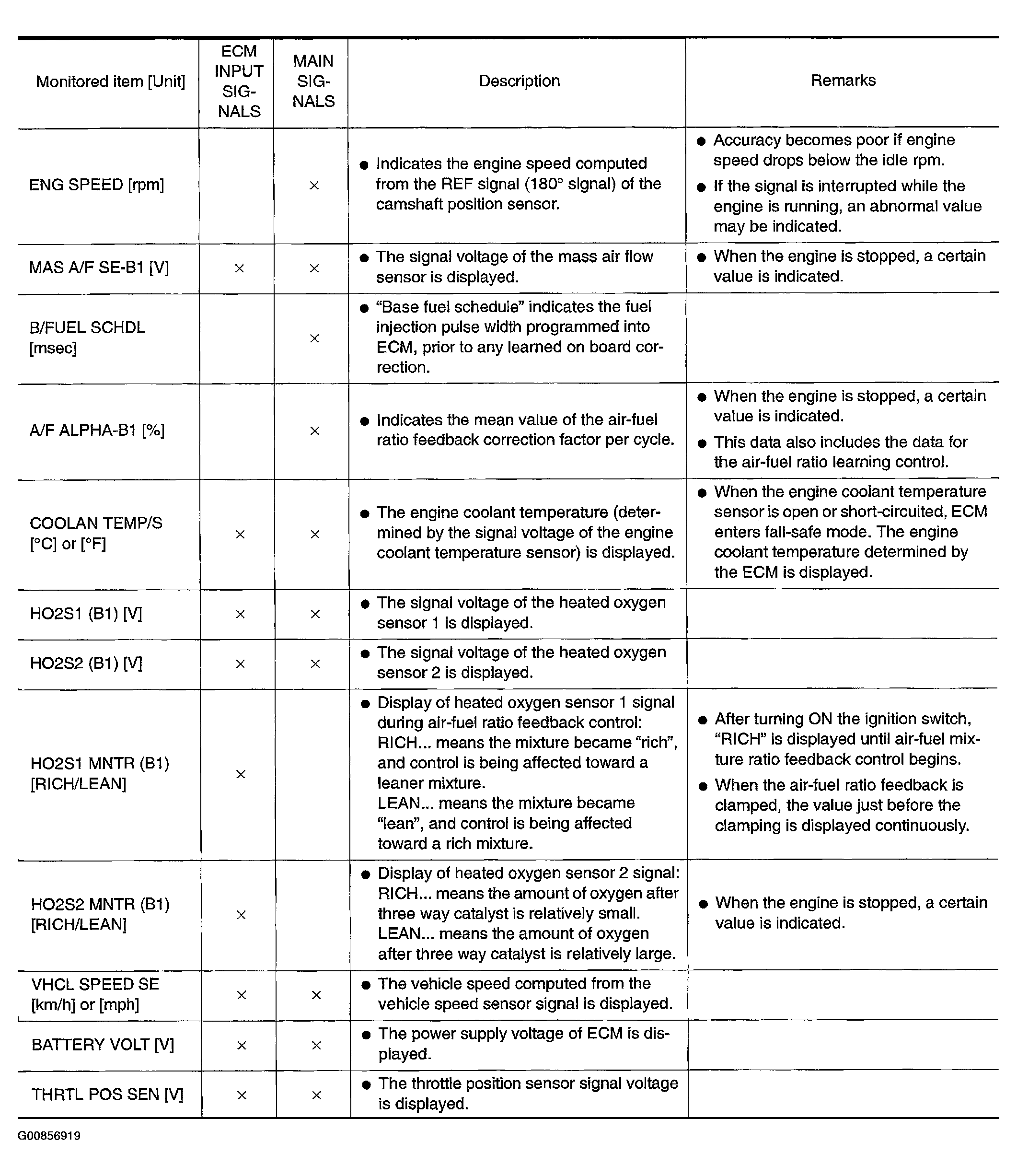

Fig 1: Data Monitor Mode Chart (1 Of 3)
G00856919Courtesy of NISSAN MOTOR CO., U.S.A.

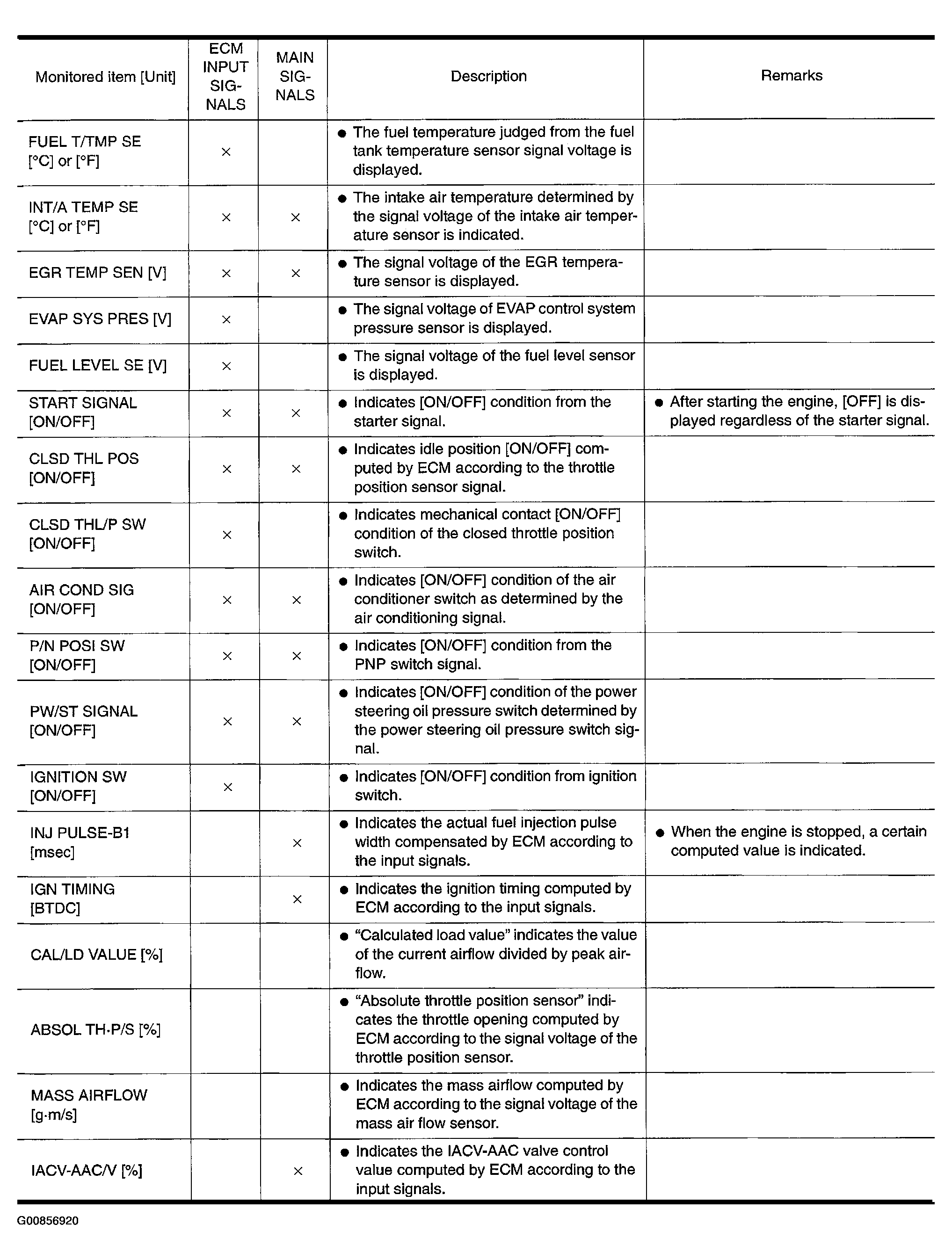

Fig 2: Data Monitor Mode Chart (2 Of 3)
G00856920Courtesy of NISSAN MOTOR CO., U.S.A.

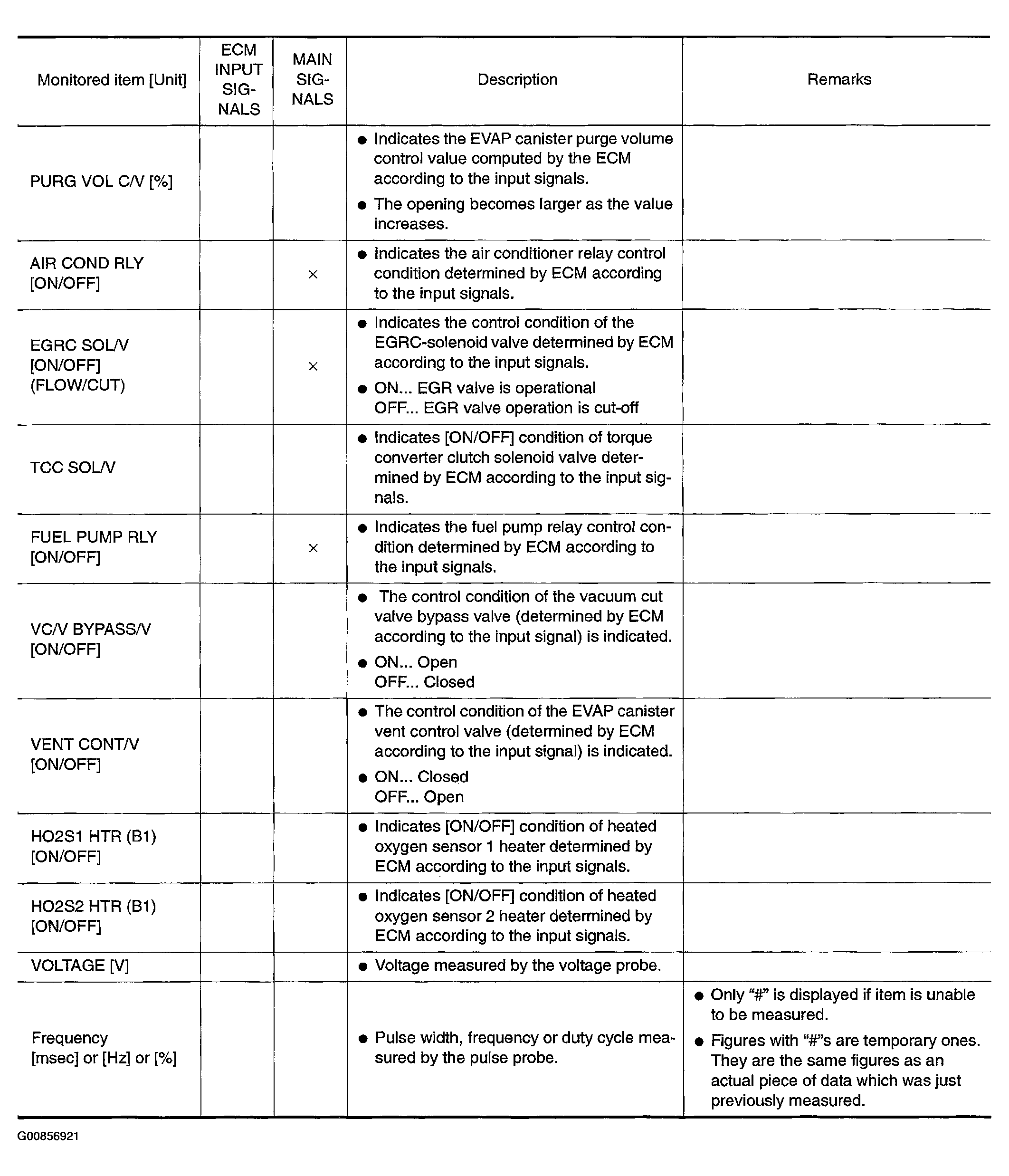

Fig 3: Data Monitor Mode Chart (3 Of 3)
G00856921Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
