CONSULT-II Function: Function

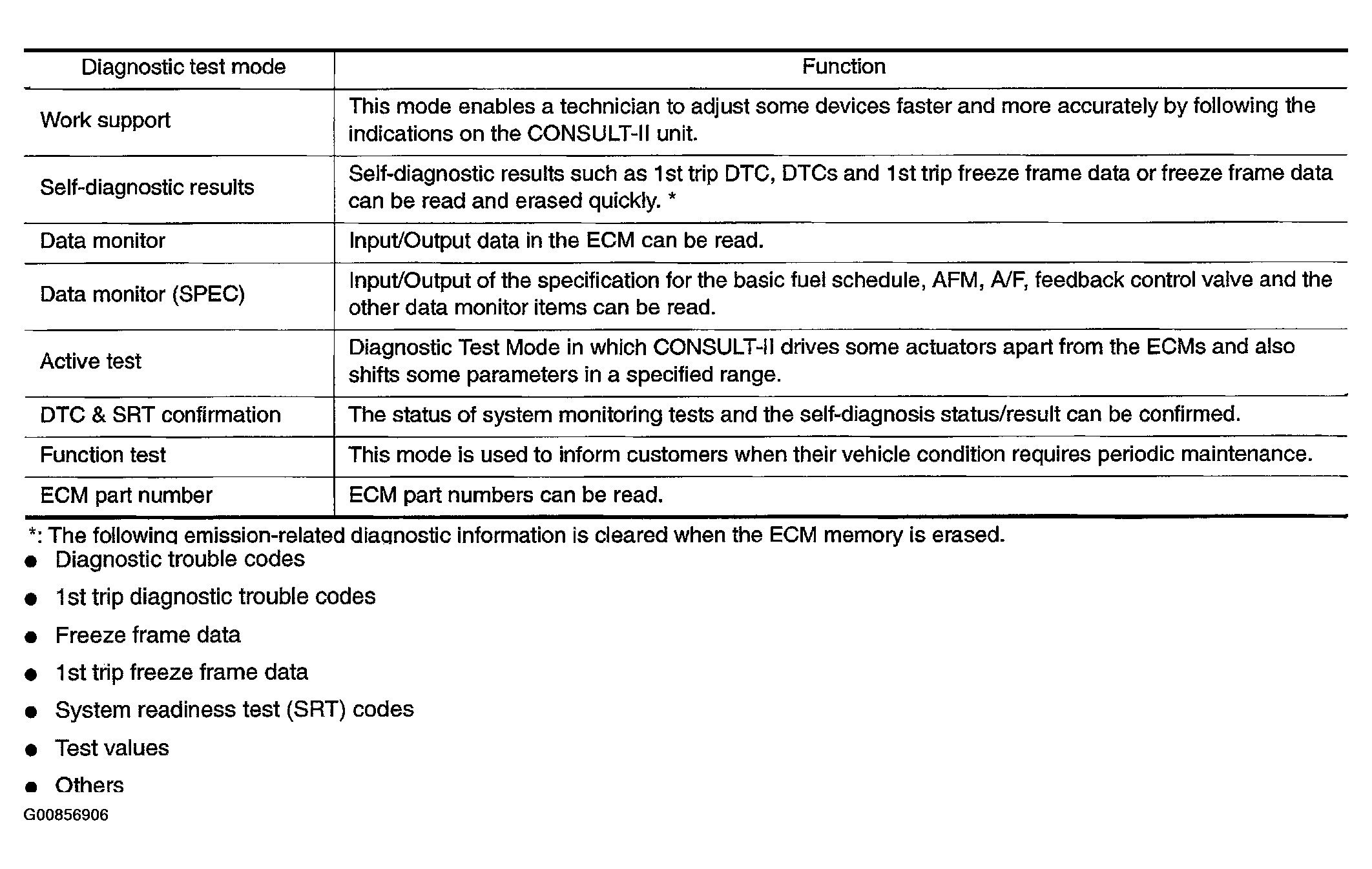

Fig 1: Diagnostic Test Mode Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

*: The following emission-related diagnostic information is cleared when the ECM memory is erased.

• Diagnostic trouble codes
• 1st trip diagnostic trouble codes
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
• Test values
• Others
