Home
>>
Nissan-Datsun
>>
2004
>>
Frontier Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - KA24DE
>>
CONSULT-II Function
>>
Work Support Mode
>>
Work Item
Work Item

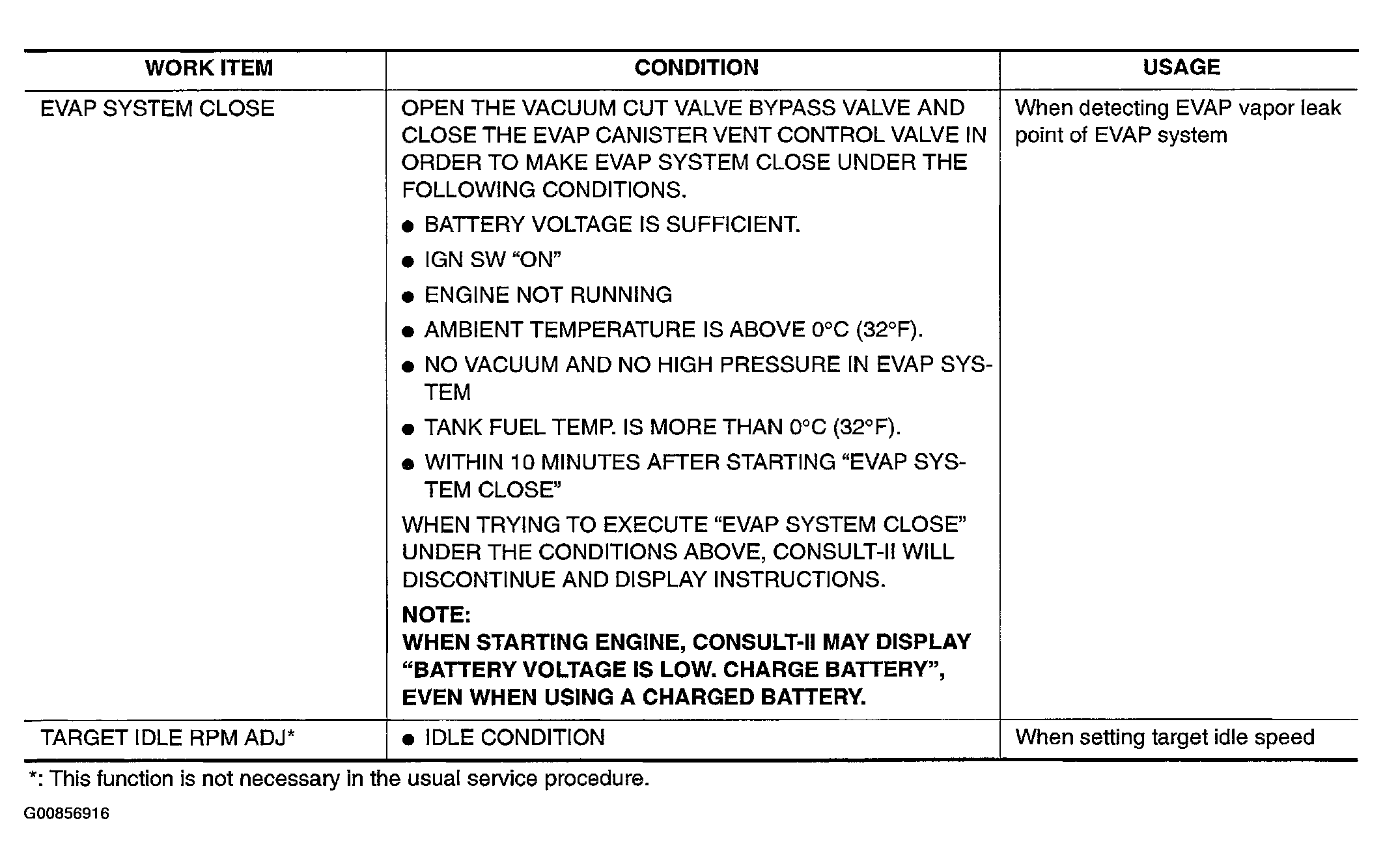

Fig 1: Work Support Mode Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

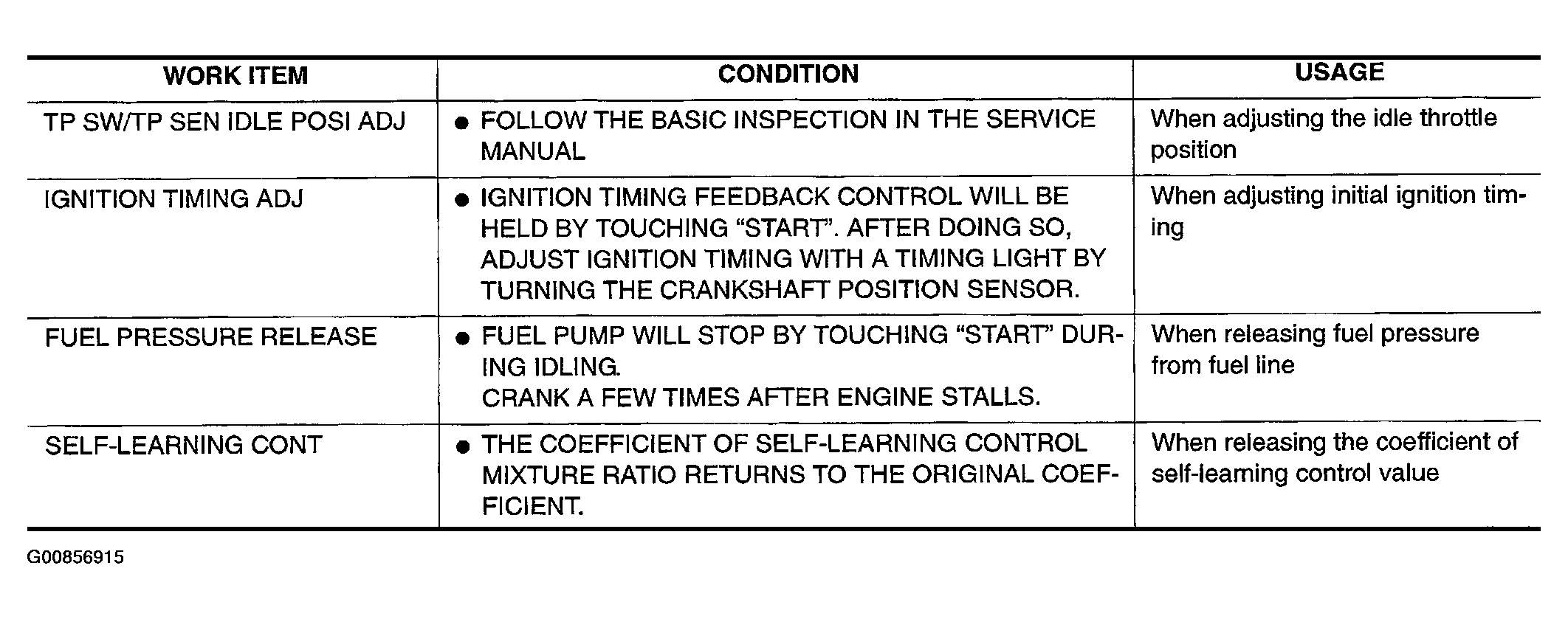

Fig 2: Work Support Mode Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
