Vacuum Hose Drawing

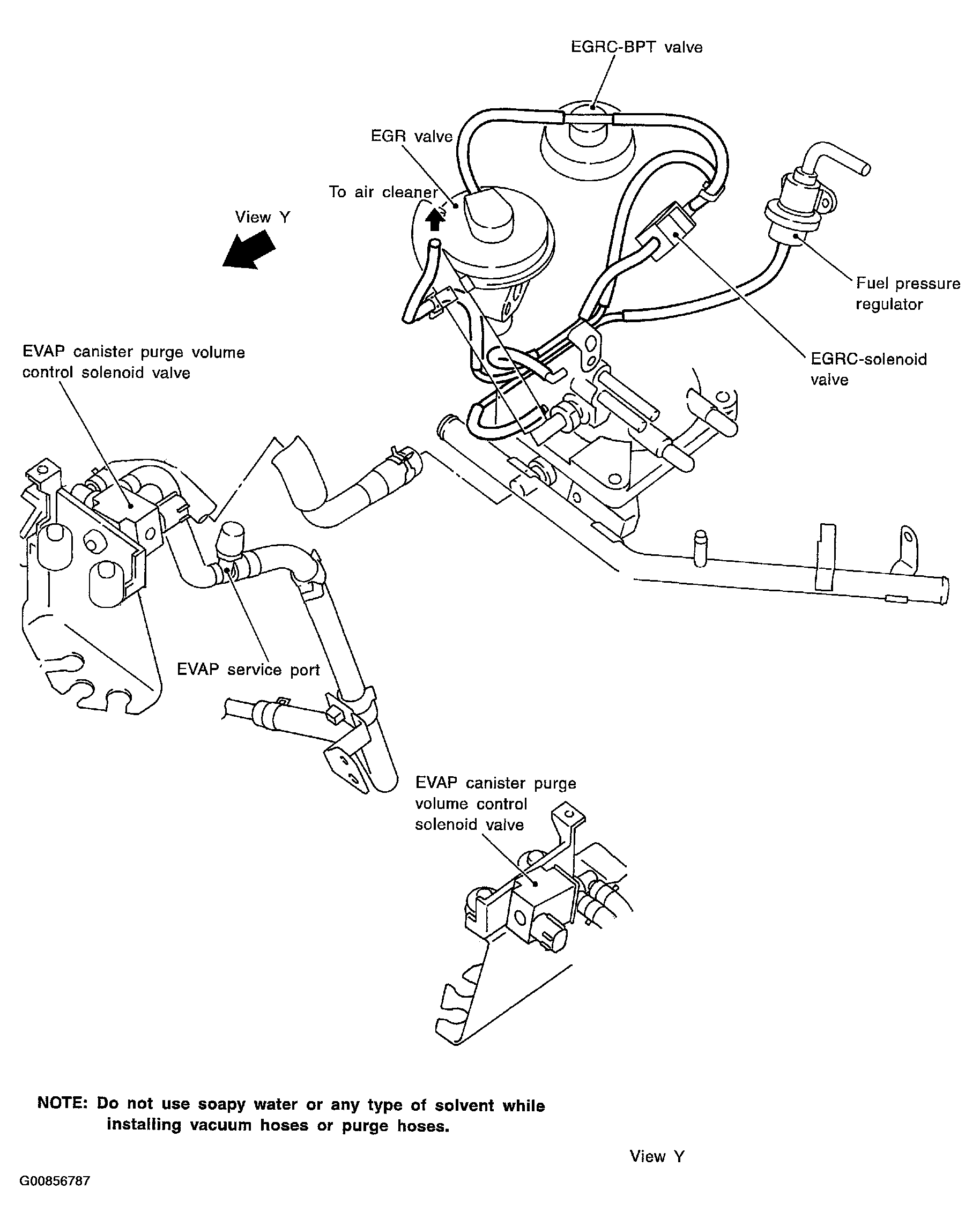

Fig 1: Identifying Vacuum Hose Drawing Components

G00856787

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "SYSTEM DIAGRAM " for vacuum control system.
