Home >> Nissan-Datsun >> 2004 >> Frontier Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control System - KA24DE >> Generic Scan Tool (GST) >> Function

Generic Scan Tool (GST): Function

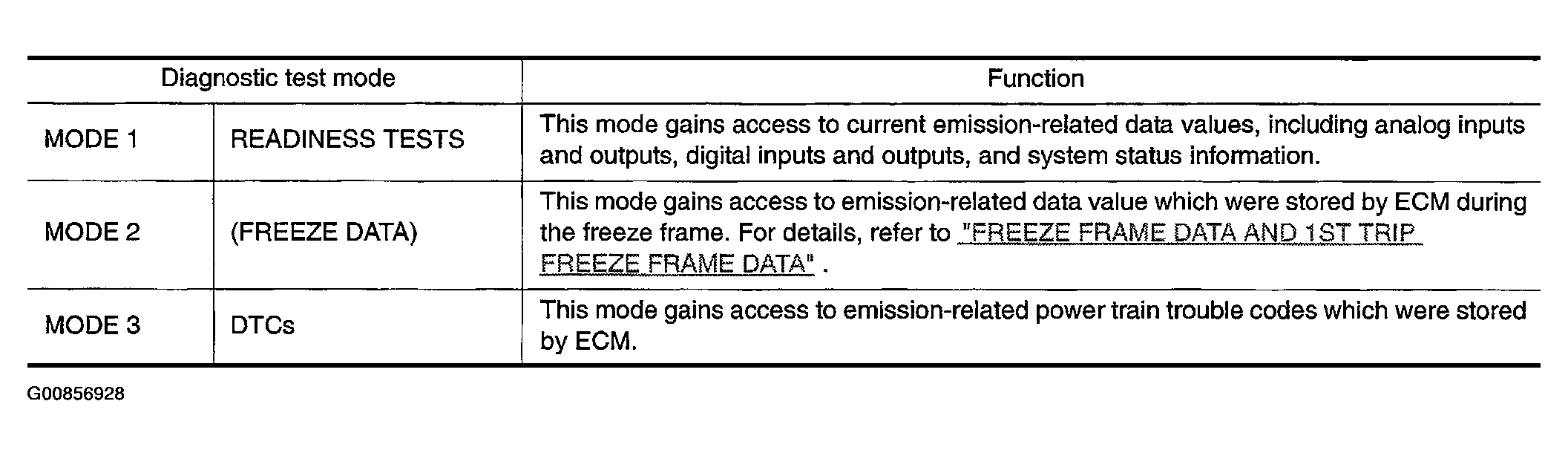

Fig 1: Function Chart (1 Of 2)

G00856928

Courtesy of NISSAN MOTOR CO., U.S.A.

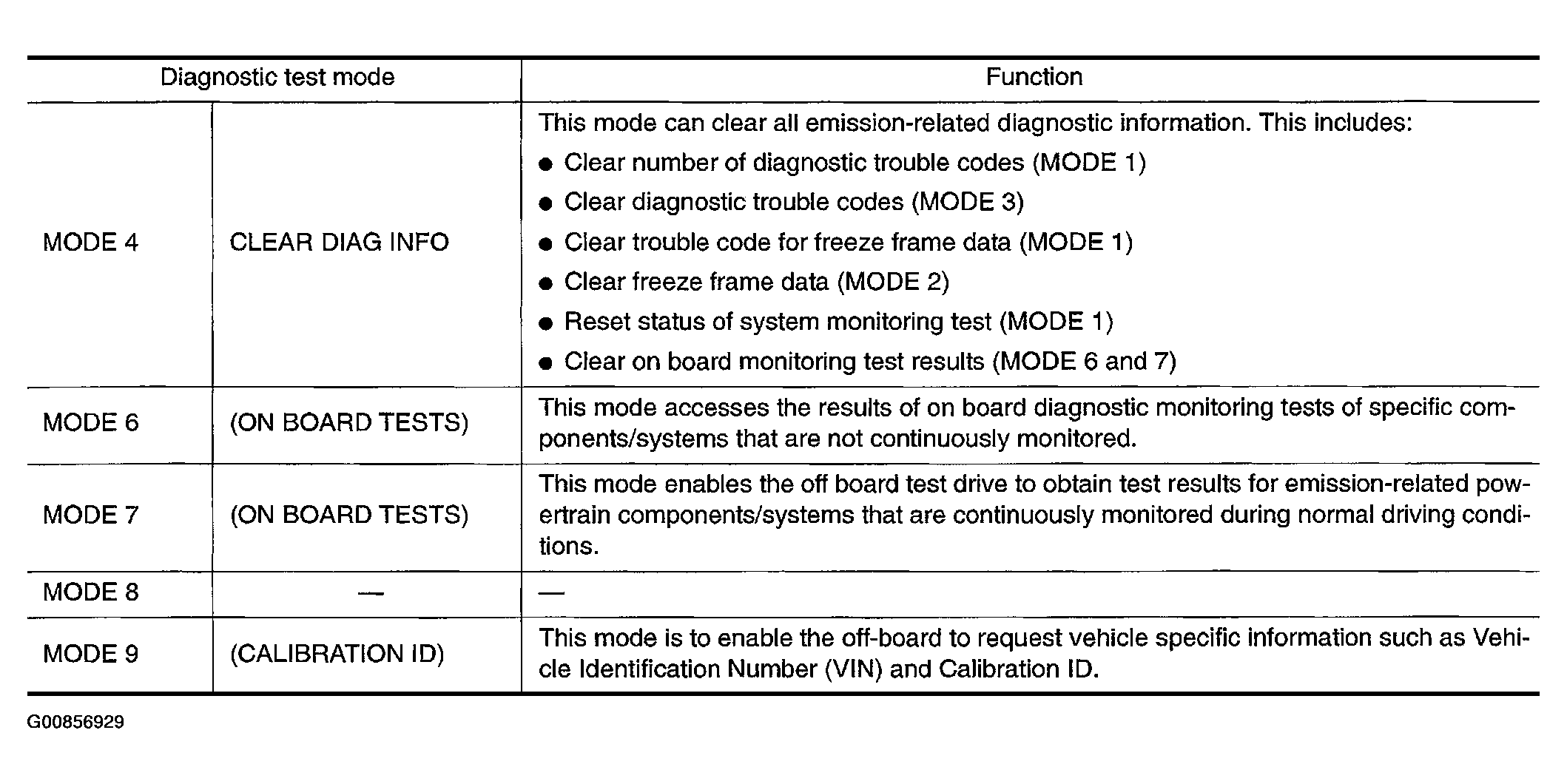

Fig 2: Function Chart (2 Of 2)

G00856929

Courtesy of NISSAN MOTOR CO., U.S.A.
