Engine Control System - KA24DE
>>
Preparation
>>
Commercial Service Tools
Commercial Service Tools

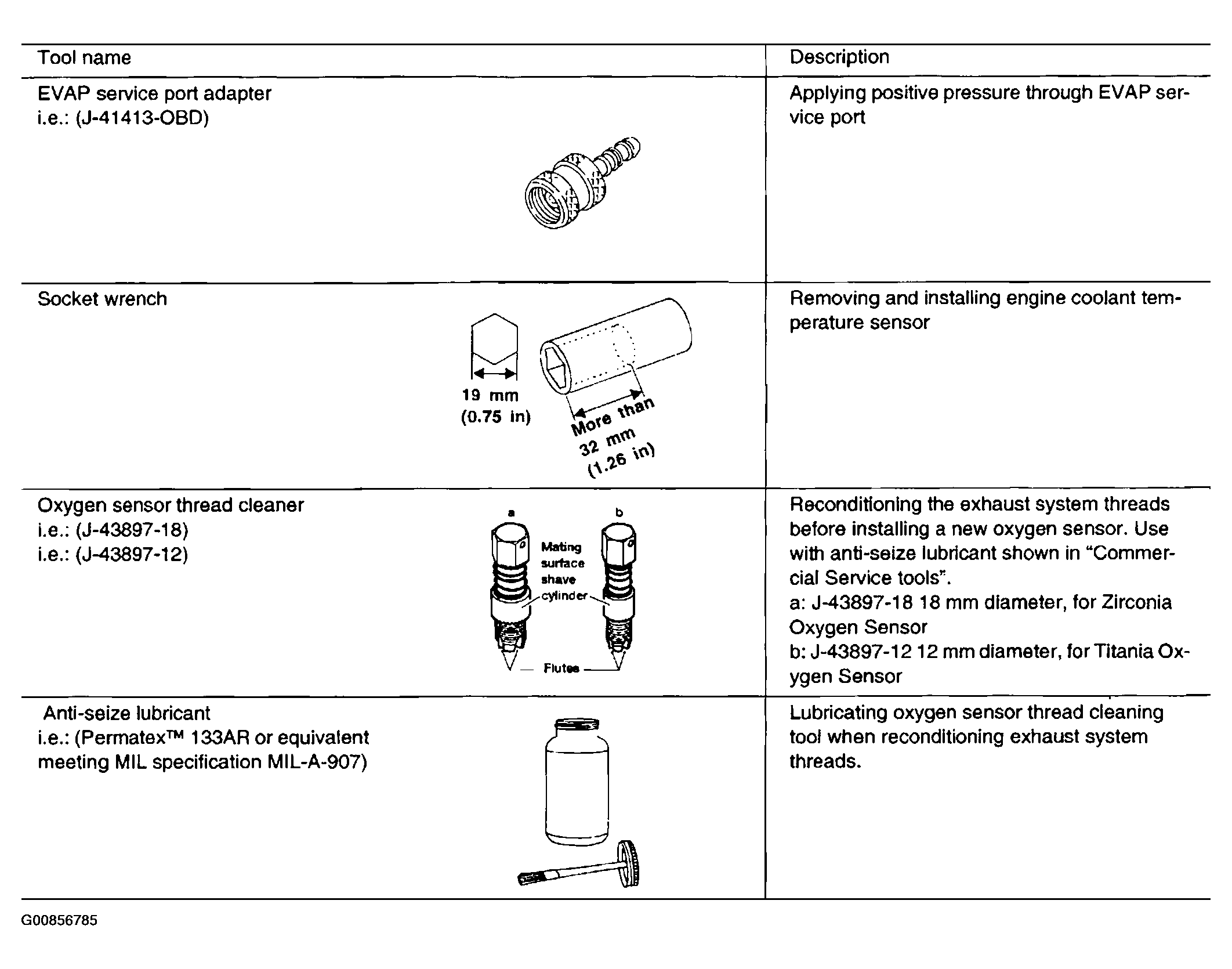

Fig 1: Identifying Special Service Tools (Commercial Service Tools) (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

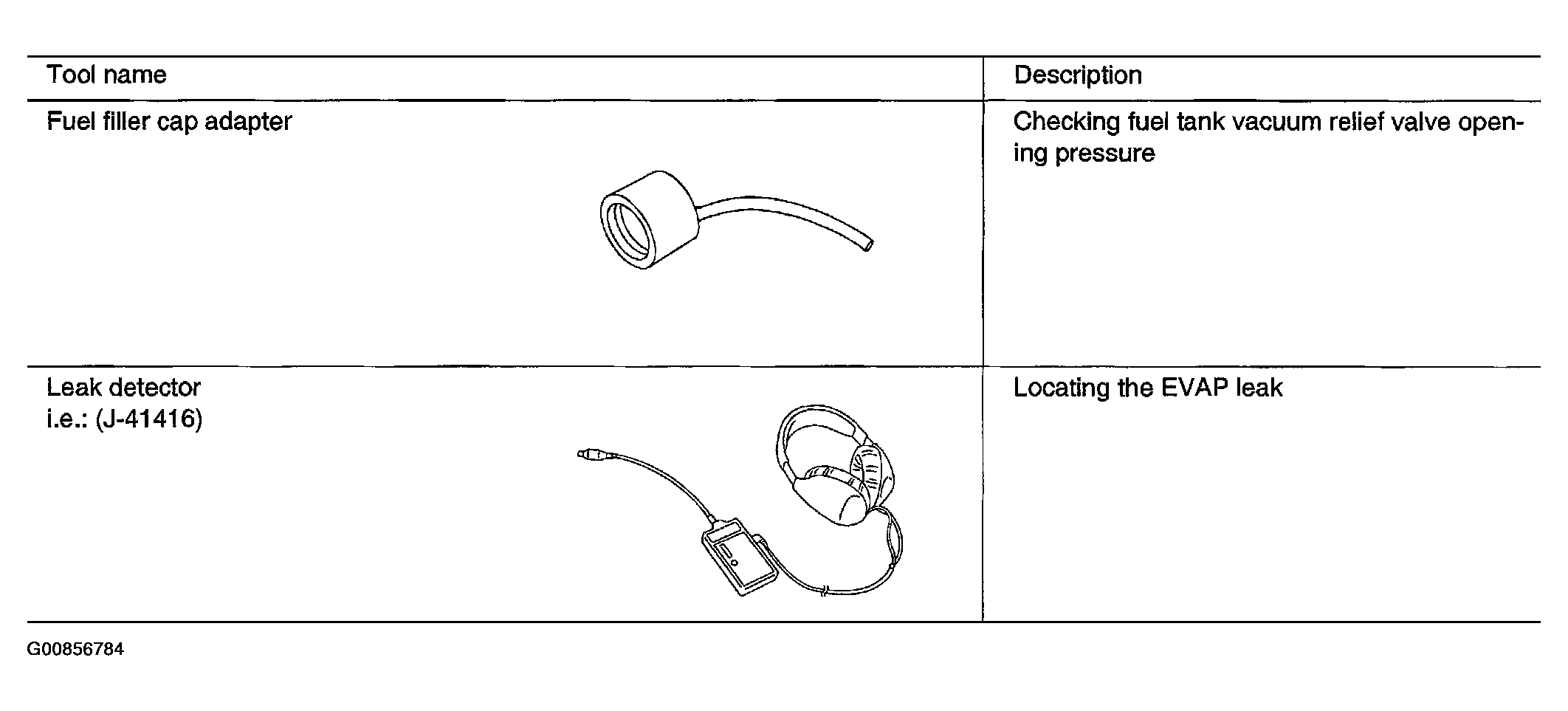

Fig 2: Identifying Special Service Tools (Commercial Service Tools) (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
