System --- Engine Control System

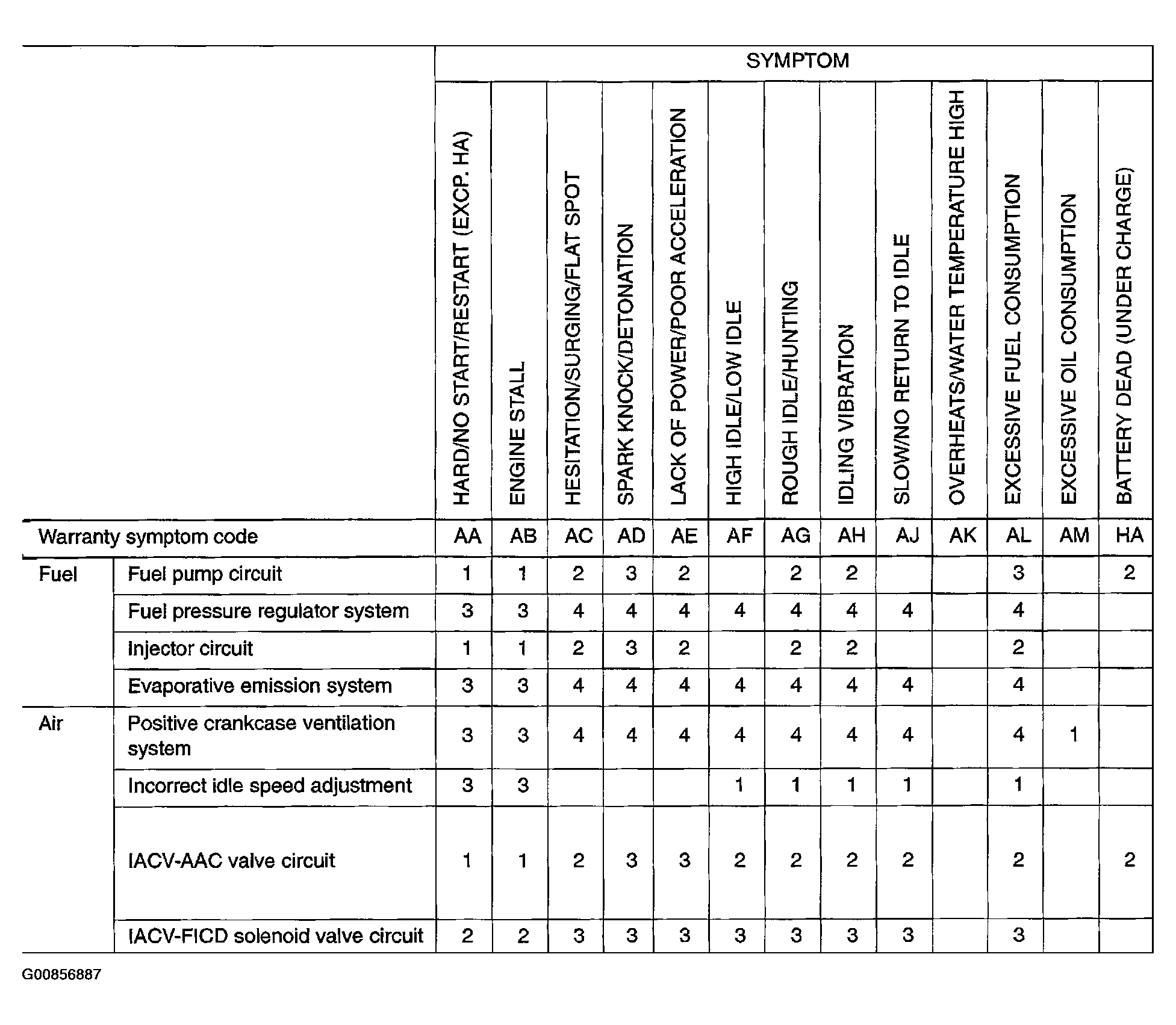

Fig 1: Symptom Matrix Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Symptom Matrix Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Symptom Matrix Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Symptom Matrix Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
