Notes
Removal and Installation: Notes

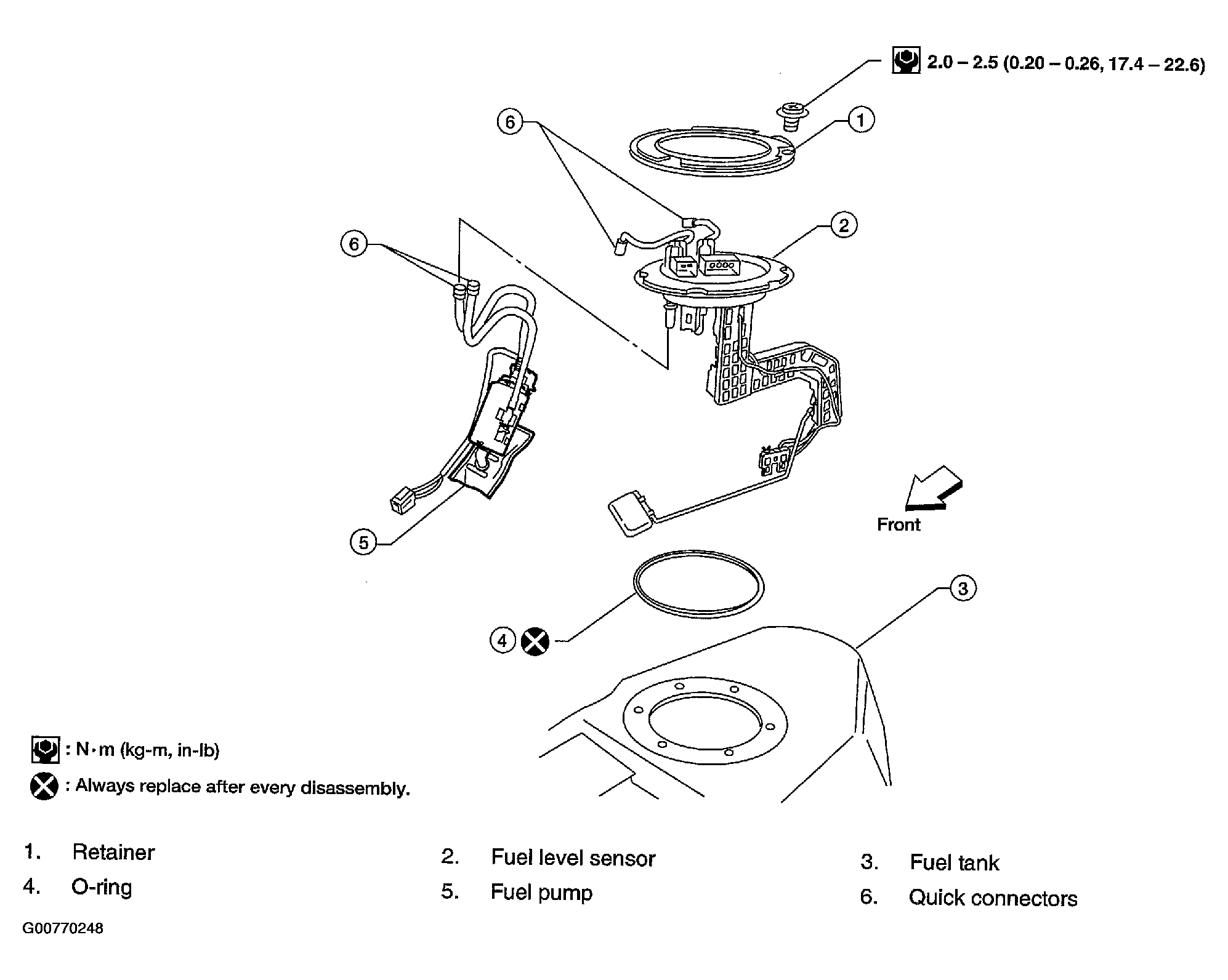

Fig 1: Exploded View Of Fuel Level Sensor Unit And Fuel Pump Assembly Including Torque Specs
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
