Component Description

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases.

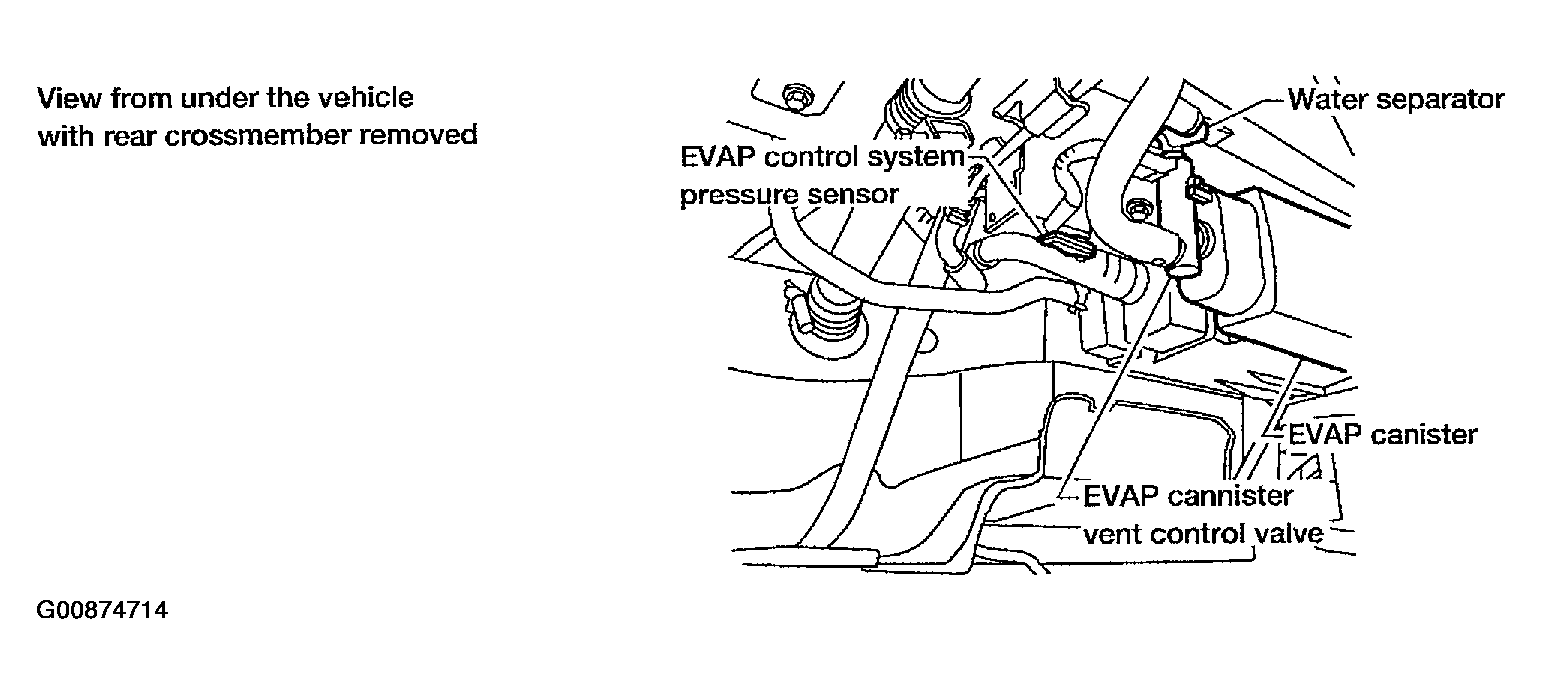

Fig 1: EVAP Canister & Components

Courtesy of NISSAN MOTOR CO., U.S.A.

The sensor output voltage to the ECM increases as pressure increases

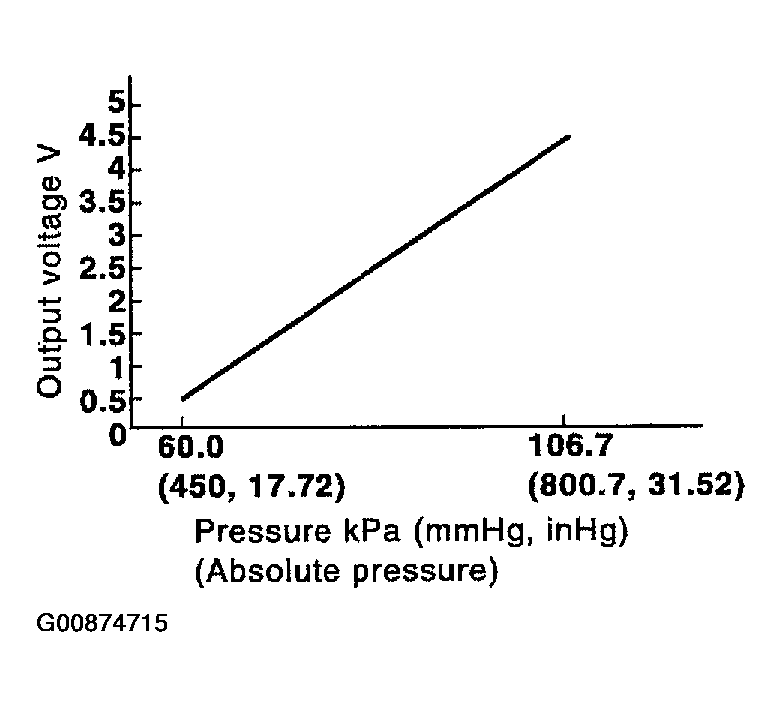

Fig 2: The Sensor Output Voltage To The ECM Increases As Pressure Increases

Courtesy of NISSAN MOTOR CO., U.S.A.
