DTC P1402: EGR Function
>>
Consult-II Reference Value In Data Monitor Mode
Consult-II Reference Value In Data Monitor Mode
Specification data are reference values.

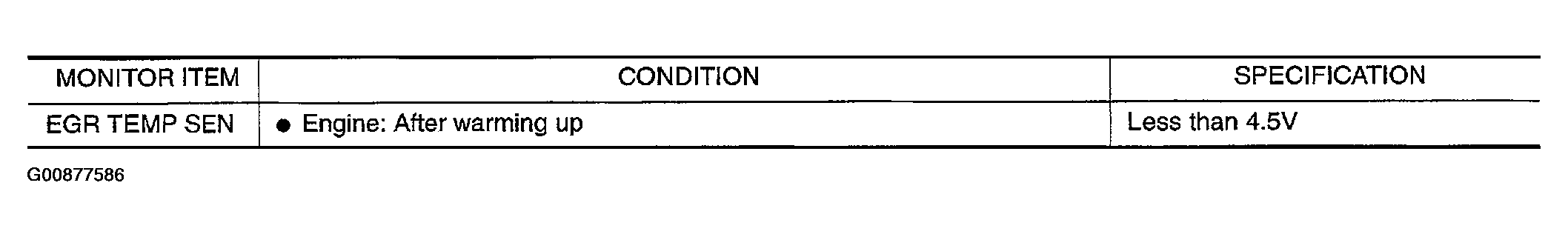

Fig 1: CONSULT-II Reference Value In Data Monitor Mode (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

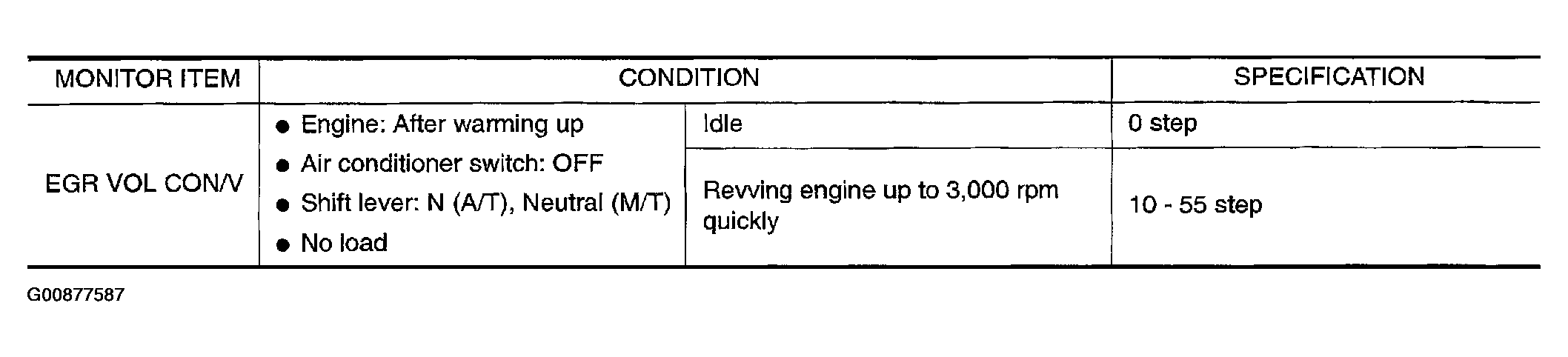

Fig 2: CONSULT-II Reference Value In Data Monitor Mode (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
