DTC Confirmation Procedure: Notes
NOTE:
- Diagnosis for this DTC will occur when engine coolant temperature is below 50 to 60°C (122 to 140°F). Therefore, it will be better to turn ignition switch ON (start engine) at the engine coolant temperature below 30°C (86°F) when starting DTC confirmation procedure.
- If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
TESTING CONDITION:
- Always perform the test at a temperature above -- 10°C (14°F).

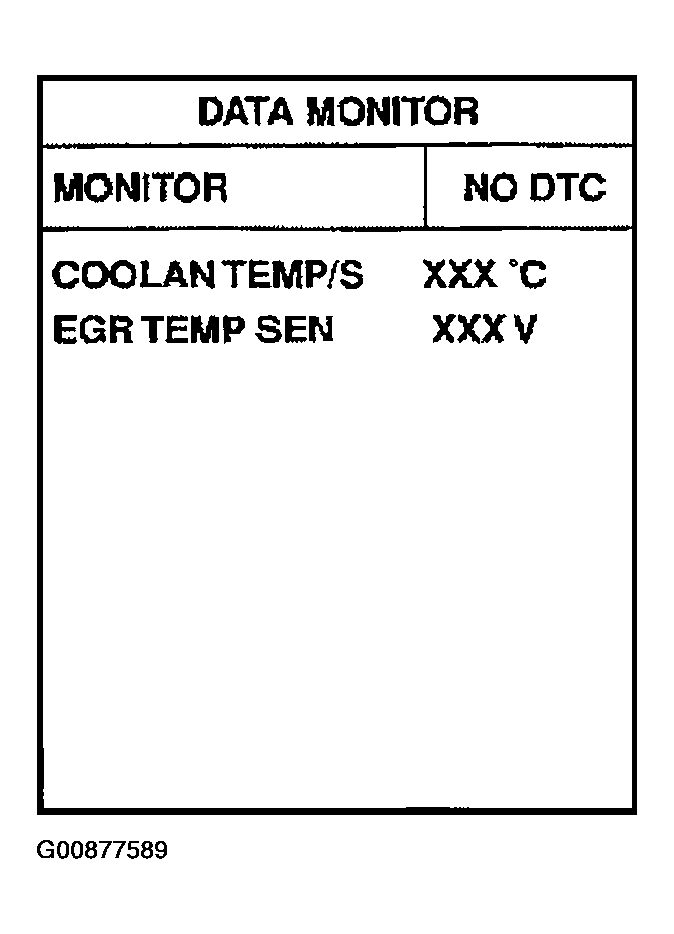

- Engine coolant temperature and EGR temperature must be verified in "DATA MONITOR" mode with CONSULT-II before starting DTC WORK SUPPORT test. If it is out of range below, the test cannot be conducted.
- COOLAN TEMP/S :--10 to 50°C (14 to 122°F) *
- EGR TEMP SEN :Less than 4.8V
If the values are out of the ranges indicated above, park the vehicle in a cool place and allow the engine temperature to stabilize. Do not attempt to reduce the engine coolant temperature or EGR temperature with a fan or means other than ambient air. Doing so may produce an inaccurate diagnostic result.
* : Although CONSULT-II screen displays "-- 10 to 40°C (14 to 104°F)" as a range of engine coolant temperature, ignore it.
