ASCD Clutch Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD clutch switch harness connector.
  3. Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

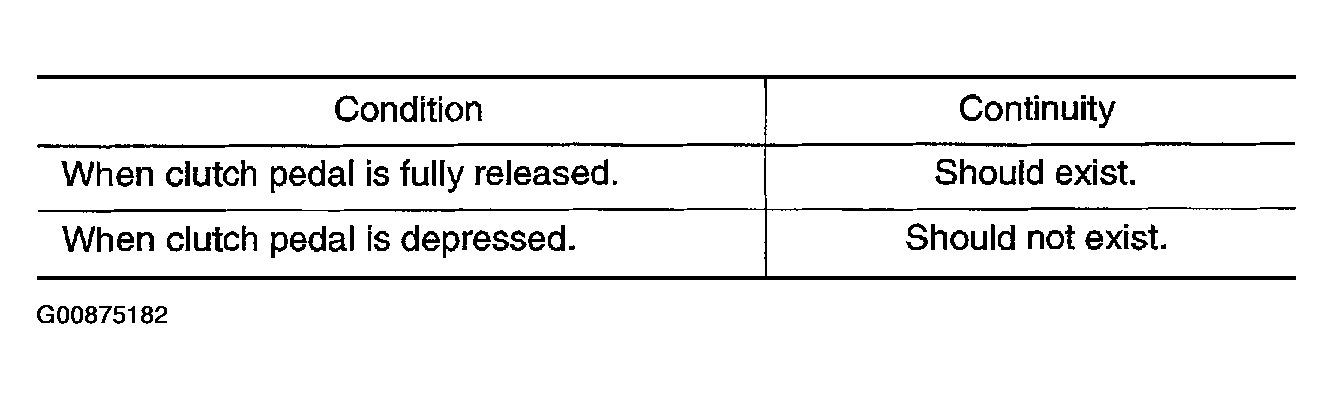

    Fig 1: Test Parameters
    G00875182Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust ASCD clutch switch installation, refer to "CLUTCH PEDAL ", and perform step 3 again.

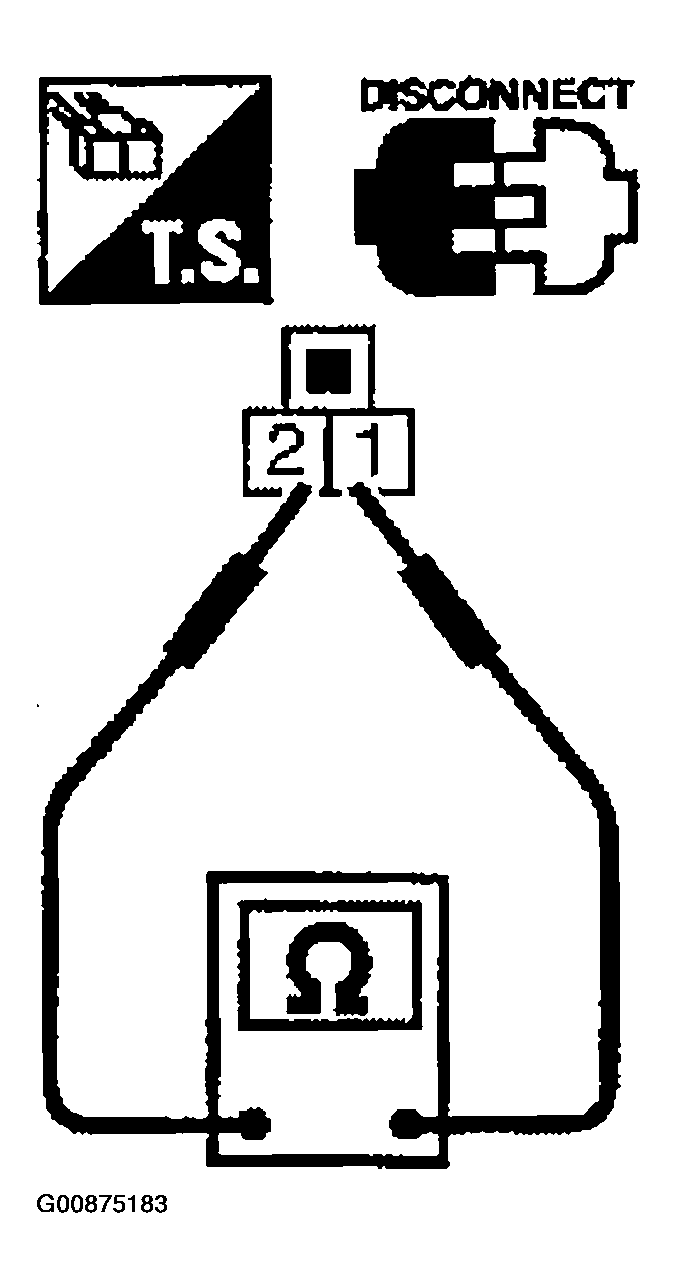

    Fig 2: Checking Continuity
    G00875183Courtesy of NISSAN MOTOR CO., U.S.A.
