Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.

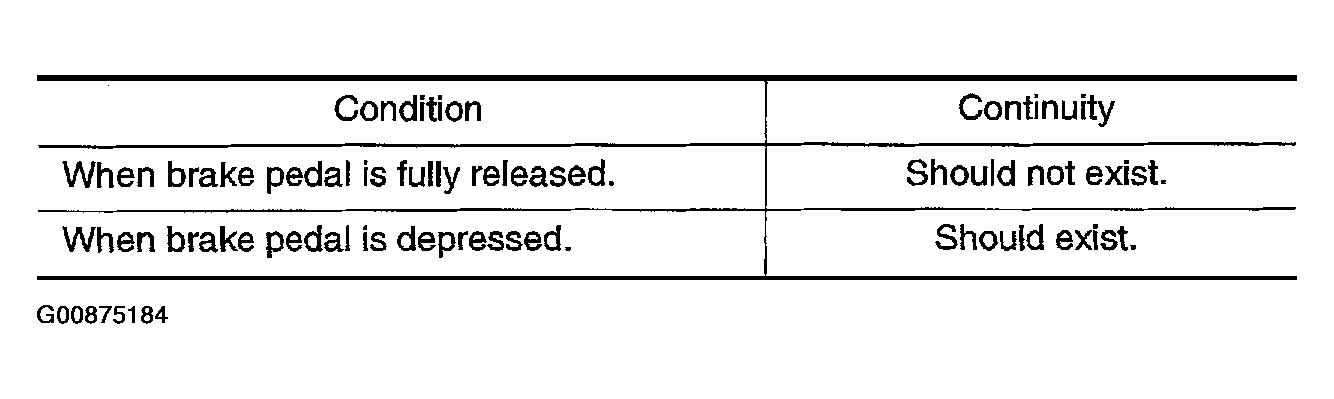

    Fig 1: Test Parameters
    G00875184Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL "ADJUSTMENTS ", and perform step 3 again.

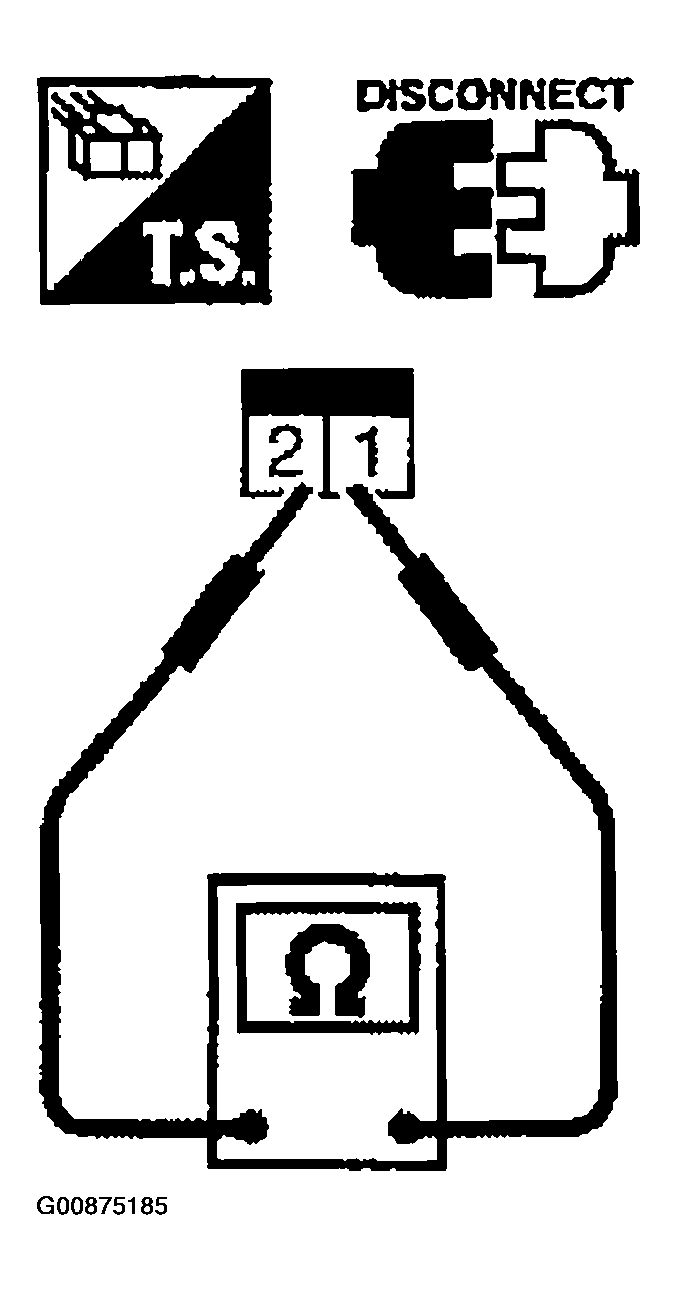

    Fig 2: Checking Continuity
    G00875185Courtesy of NISSAN MOTOR CO., U.S.A.
